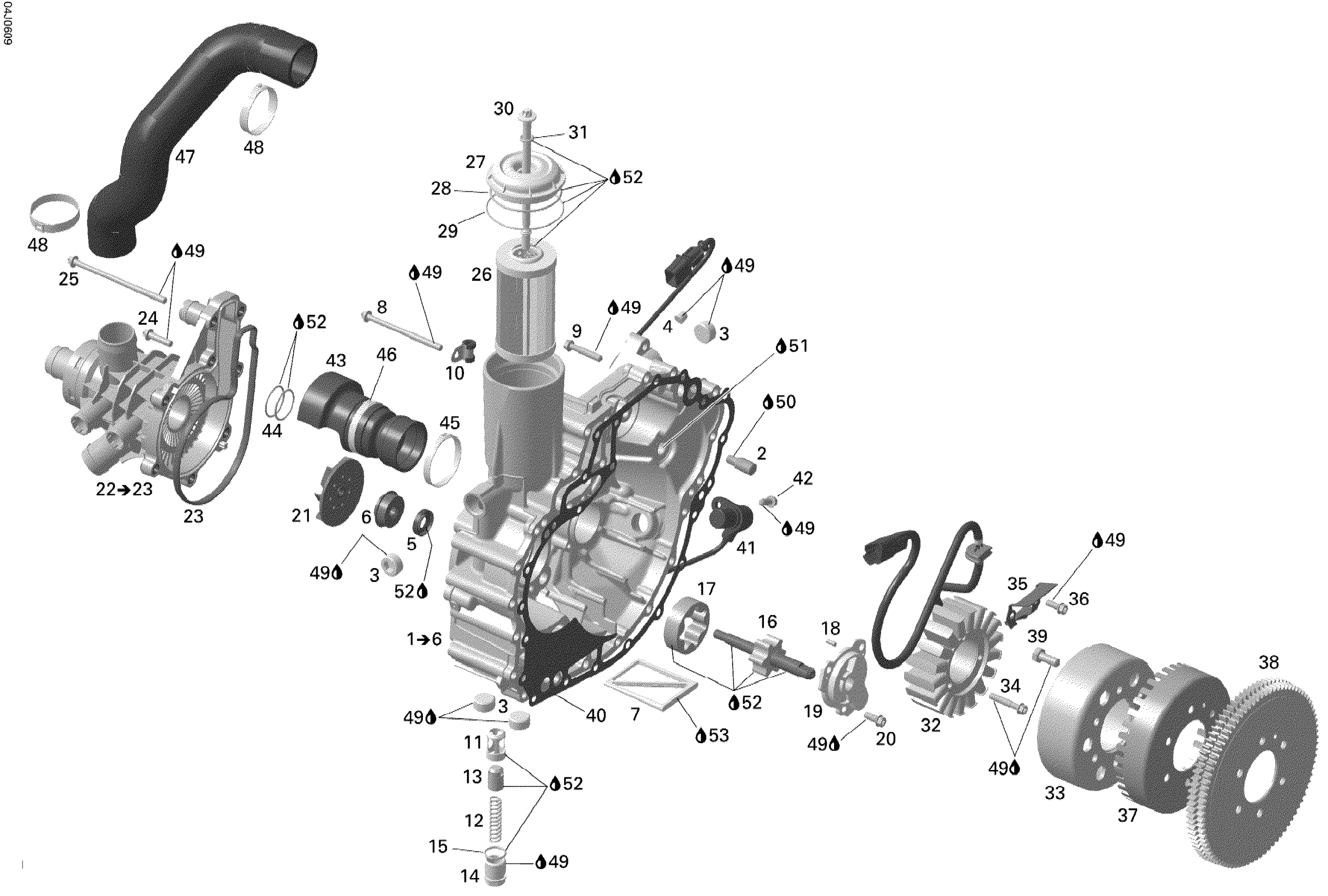

Sea-doo Speedster 200 Twin 4-TEC SCIC, Edition 2, 2006 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing/drive Cover Ass'y | Includes 1 to 6

420812622

Unavailable

2

SPRAY NOZZLE - Call your local BRP dealership

420856012

Unavailable

3

Plug Screw M20 X 1.5

420641317

$12.15

4

Plug Screw M10 X 1

420641323

$13.18

5

Oil Seal

420650315

$11.04

6

Rotary Seal

420650371

$41.01

7

Oil Sieve

420956950

$14.33

8

Torx Flange Screw M6 X 85

420641228

$7.01

9

Torx Flange Screw M6 X 35

420440274

$0.96

10

Clamp

420853414

$17.13

11

Valve Seat Sleeve

420256606

$27.58

12

Compression Spring

420939410

Unavailable

13

Piston Valve

420256638

Unavailable

14

Plug Screw M20 X 1.5

420641052

$35.79

15

O-Ring

420230890

$5.06

16

Pump Shaft Ass'y

420837472

$52.21

17

Oil Pump Rotor 16 mm

420956675

$33.55

18

Needle Pin

420929070

$1.79

19

Oil Pump Cover

420811591

$34.30

20

Torx Flange Screw M6 X 16

420641048

$2.82

21

Impeller

420922801

$16.39

22

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$276.84

23

Water Pump Housing Gasket | Included in gasket kit

420950840

$13.07

24

Torx Flange Screw M6 X 25

420641238

$3.07

25

Torx Flange Screw M6 X 105

420641338

$7.01

26

Oil Filter

420956741

$12.79

27

Oil Filter Cover

420610329

$31.31

28

O-Ring

420850500

$3.01

29

O-Ring

420230923

$2.97

30

Oil Filter Screw Kit

295501207

$37.28

31

O-Ring

420950860

$3.67

32

Stator Plate This part replaces 420889721.

420889726

$319.49

33

Magneto Flywheel

420296900

$461.99

34

Torx Flange Screw M6 X 35

420440274

$0.96

35

Retaining Plate

420926300

$14.90

36

Torx Flange Screw M6 X 16

420641048

$2.82

37

Trigger Wheel

420966851

$17.13

38

Starter Double Gear 87/86T

420834871

$287.28

39

Hex Screw

295501162

$13.16

40

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

41

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

42

Torx Flange Screw M6 X 16

420641048

$2.82

43

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$131.31

44

O-Ring

420631612

$4.04

45

Gear Clamp

420851653

$7.01

46

Gear Clamp 46.8-50.0MM

420853023

$7.01

47

Formed Hose

420922822

$61.16

48

Oetiker Clamp

420851687

$10.82

49

Loctite 243, 10 ml

293800060

$21.49

50

Sealant Loctite 648

219703000

$41.01

51

Dow Corning 111, 150 g

413707000

$59.99

52

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

53

Loctite 5910, 300 ml

293800081

$57.99
