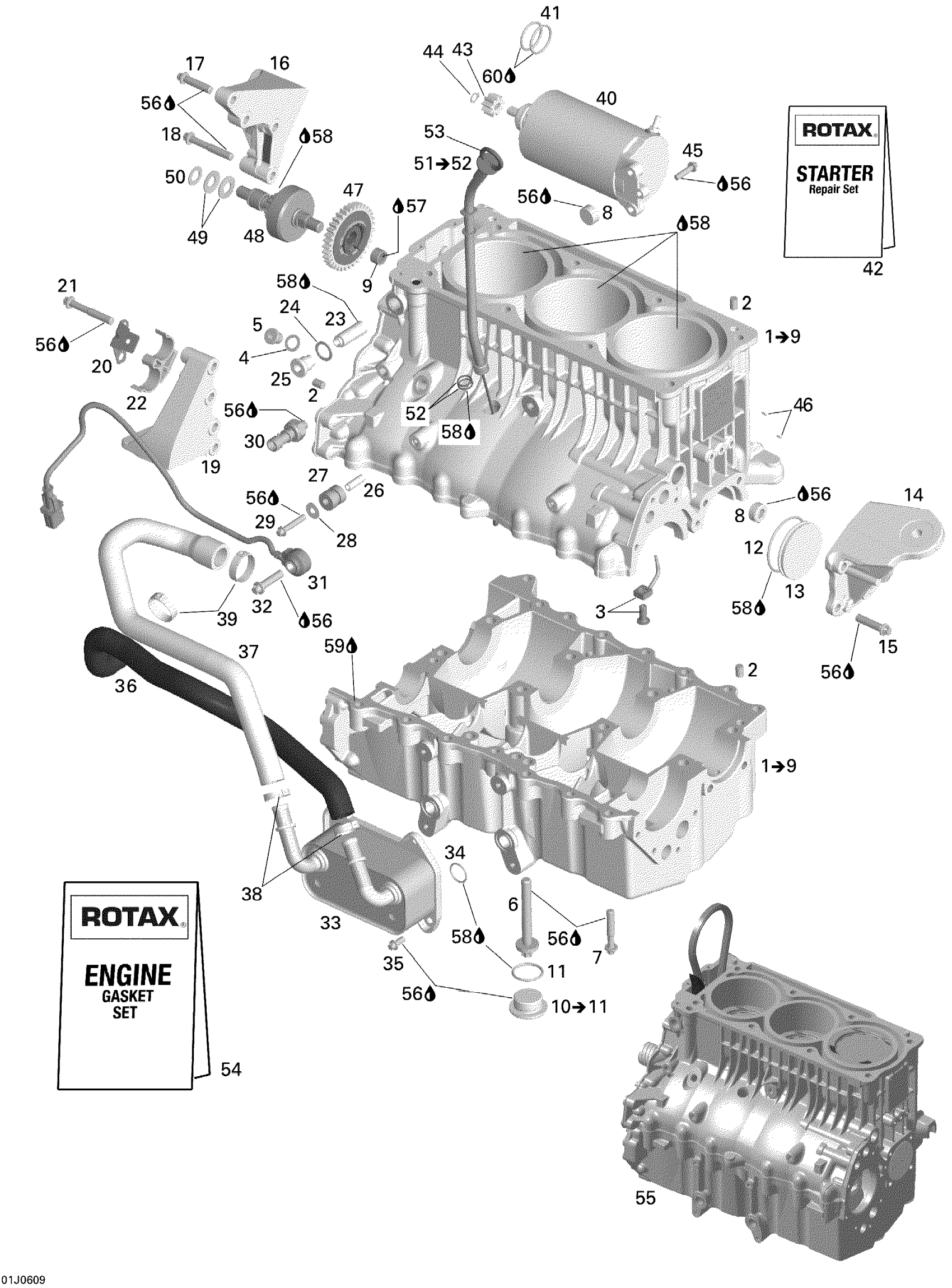

Sea-doo Speedster 200 Twin 4-TEC SCIC, Edition 2, 2006 Engine Block Diagram

#

Description
Price

1

Cylinder Block With Sleeves | Includes 1 to 9 This part replaces 420892461.

420893511

$2.00

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Spray Nozzle This part replaces 420956778.

420956827

$27.49

4

Aluminum Sealing Ring

420250016

$5.39

5

Plug Screw M12

420841923

$15.89

6

Torx Flange Screw M10 X 82

420641120

$7.41

7

Hex. Flange Screw M8 X 45

420641208

$7.51

8

Plug Screw M20 X 1.5

420641317

$14.22

9

Needle Bushing

420232482

$20.99

10

Plug Screw M30 X 1.5

420641171

$20.99

11

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$10.33

12

O-Ring

420430405

$14.28

13

Plug Cover

420660110

$7.41

14

FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.

420811792

Unavailable

15

Torx Flange Screw M8 X 35

420641188

$7.41

16

Engine Bracket PTO, Exhaust

420811788

$75.99

17

Torx Flange Screw M8 X 35

420641188

$7.41

18

Torx Flange Screw M8 X 55

420641213

$7.41

19

Engine Bracket PTO, Exhaust

420811784

$63.99

20

Retaining Plate

420851740

$20.99

21

Torx Flange Screw M8 X 55

420641213

$7.41

22

Hose Bracket

420660290

$16.37

23

Chain Tensioner

415129408

$63.49

24

Gasket Ring

420430624

$1.89

25

Chain Tensioner With Screw | Includes no. 8-11

420236259

$70.99

26

SPACER - Call your local BRP dealership

420847970

Unavailable

27

Rubber Bracket

420660090

$4.12

28

Flat Washer M6

420827968

$1.90

29

Torx Flange Screw M6 X 35

420440274

$1.01

30

Oil Pressure Switch

420856533

$43.99

31

Noise Sensor

270000484

$82.99

32

Torx Flange Screw M8 X 35

420641188

$7.41

33

Oil Radiator

420888850

Unavailable

34

O-Ring

420250057

$4.23

35

Torx Flange Screw M6 X 16

420641048

$2.96

36

FORMED HOSE - Call your local BRP dealership

420922796

Unavailable

37

FORMED HOSE - Call your local BRP dealership

420922791

Unavailable

38

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

39

Gear Clamp

420851673

$5.71

40

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

41

O-Ring

420631310

$4.44

42

CARBON BRUSH SET - Call your local BRP dealership

420664710

Unavailable

43

Starter Gear, 9 Teeth

420834522

$74.99

44

Retaining Ring

420845601

$4.55

45

Torx Flange Screw M6 X 25

420641238

$3.27

46

Grooved Pin

420249073

$1.90

47

Bendix Starter This part replaces 420889872.

420890637

$264.99

48

Bendix Starter This part replaces 420889872.

420890637

$264.99

49

Spring Washer

420238300

$7.41

50

Thrust Washer

420827261

$7.51

51

Oil Level Tube

420956944

$121.49

52

O-Ring

420950810

$14.83

53

Oil Level Gauge

420956933

$25.99

54

Engine Gasket Set

420889773

$550.99

55

Not Available As Spare Part - Friction Washer

Unavailable

55

Engine Long Block This part replaces 420150338.

420150394

$4.00

55

Engine Long Block This part replaces 420150338.

420150394

$4.00

61

Engine Long Block This part replaces 420150338.

420150394

$4.00

56

Loctite 243, 10 ml

293800060

$21.49

57

Dow Corning 111, 150 g

413707000

$59.99

58

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

59

Loctite 5910, 300 ml

293800081

$57.99

60

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
