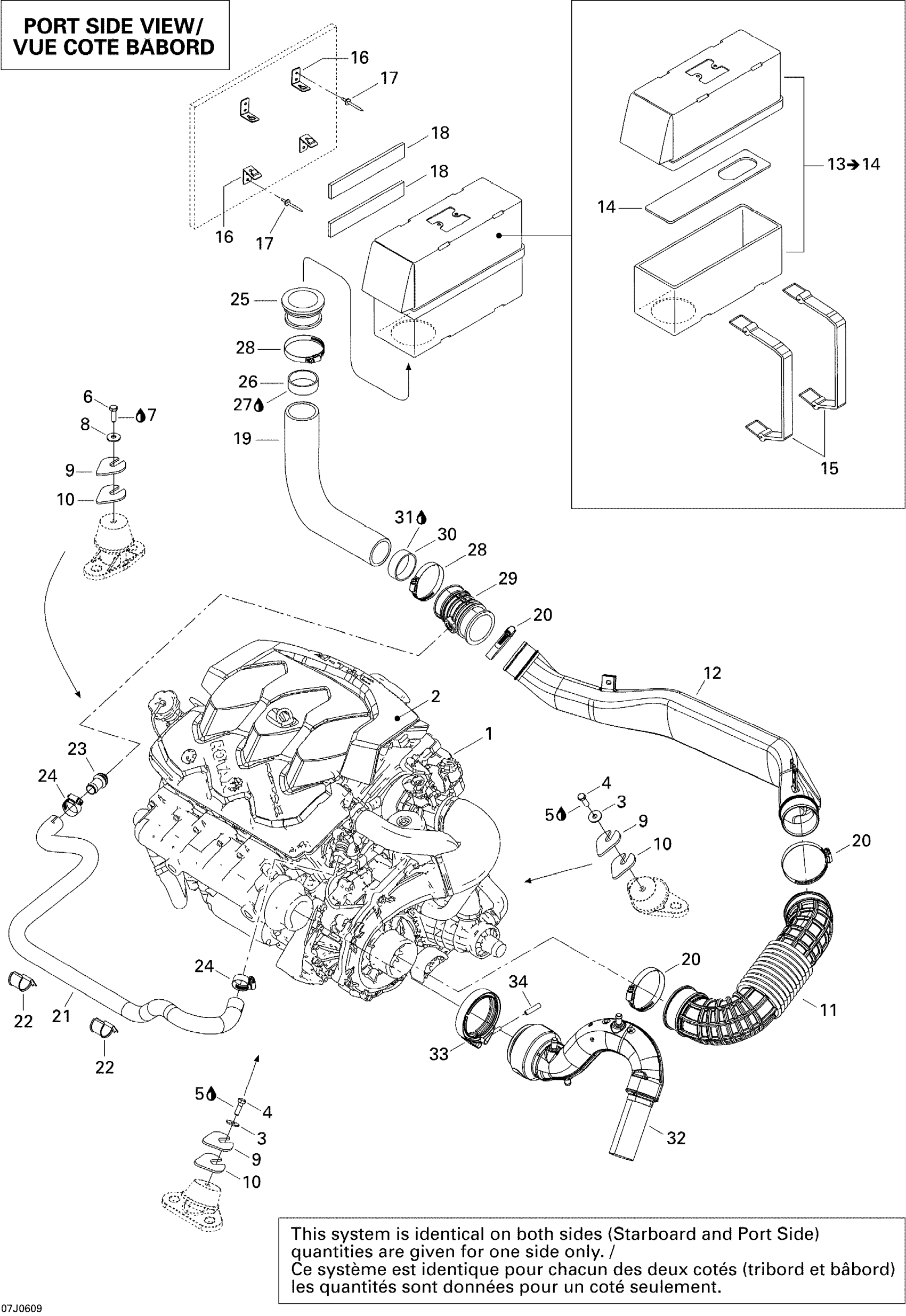

Sea-doo Speedster 200 Twin 4-TEC SCIC, Edition 2, 2006 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

$2.43

4

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

10

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

11

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

12

Intake Hose

273000185

Unavailable

13

Air Silencer Ass'y | Includes 13 to 14

204250323

Unavailable

14

Air Silencer Divider

204250324

Unavailable

15

Retainer Strap

293850097

$11.64

16

Strap Clip 90°

204060017

Unavailable

17

Pop Rivet 3/16"

293150088

$0.99

18

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

19

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

20

Tridon Clamp

293650179

$11.49

21

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

22

Retainer

275500664

$14.75

23

Breather Valve

273000234

$14.49

24

Tridon Gear Clamp

293650051

$4.19

25

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

26

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

27

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

28

Tridon Clamp

293650179

$11.49

29

Adaptor Hose, Engine

204250276

Unavailable

30

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

31

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

32

EXHAUST PIPE - Call your local BRP dealership

274001049

Unavailable

33

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

34

Polyurethane Hose 10000Mm Long

219704410

$56.99
