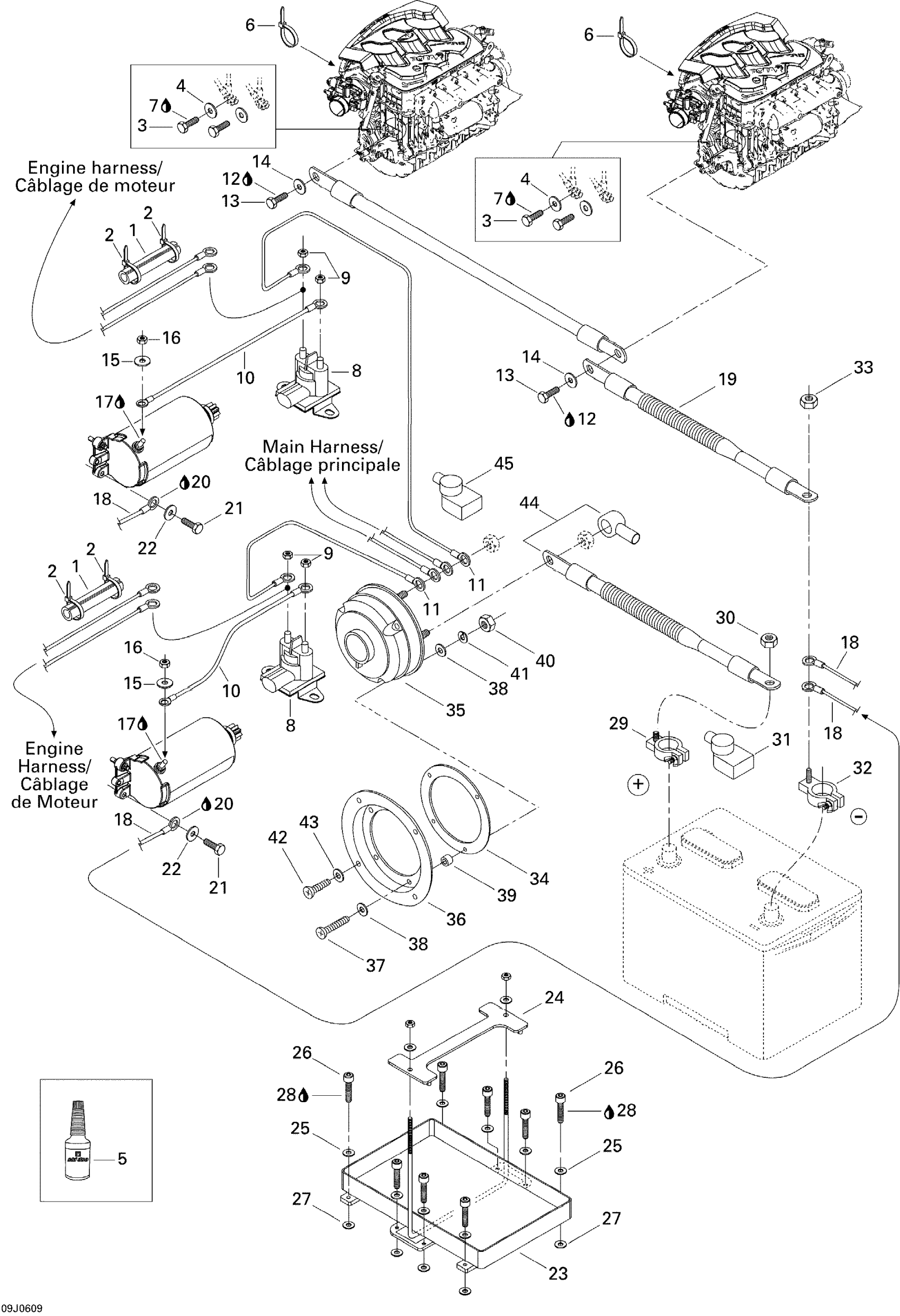

Sea-doo Speedster 200 Twin 4-TEC SCIC, Edition 1, 2006 Electrical System Diagram

#

Description
Price

1

SLIT CONDUIT - Call your local BRP dealership

204471077

Unavailable

2

Tie Wrap 142 mm

293750002

$1.25

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

4

Stainless Flat Washer M6

234061600

$0.33

5

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

6

Tie-Rap 180 mm

414115200

$0.11

7

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

8

Starter Relay

278003012

$42.49

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Red Cable

204470852

Unavailable

10

RED CABLE - Call your local BRP dealership

204470798

Unavailable

11

RED CABLE - Call your local BRP dealership

204470853

Unavailable

11

RED CABLE - Call your local BRP dealership | Starboard

204470838

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

14

Flat Washer M6, Stainless

234062600

$0.77

15

Stainless Flat Washer M6

234061600

$0.33

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

GROUND CABLE, PORT SIDE - Call your local BRP dealership

204470854

Unavailable

18

GROUND CABLE, STARBOARD - Call your local BRP dealership

204470840

Unavailable

19

GROUND CABLE - Call your local BRP dealership

204470839

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

22

Stainless Flat Washer M6

234061600

$0.33

23

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

24

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

25

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

26

Socket Head Screw M6 X 25

205062560

$1.69

27

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

28

Loctite 243, 10 ml

293800060

$21.49

29

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

30

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

31

RED BOOT - Call your local BRP dealership

204470269

Unavailable

32

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

33

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

34

SWITCH ADAPTOR - Call your local BRP dealership

204470813

Unavailable

35

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

36

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

37

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

38

Flat Washer M5, Stainless

234051600

$0.77

39

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

40

Hex. Nut M5

232051600

$1.15

41

Helical Lock Washer M5

234151601

$1.15

42

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

43

Flat Washer 4 mm, Stainless

234041600

$1.15

44

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

45

RED BOOT - Call your local BRP dealership

204470269

Unavailable
