- Speedster 200 Twin 4-TEC SCIC, Edition 1, 2006
10- Electrical Harness

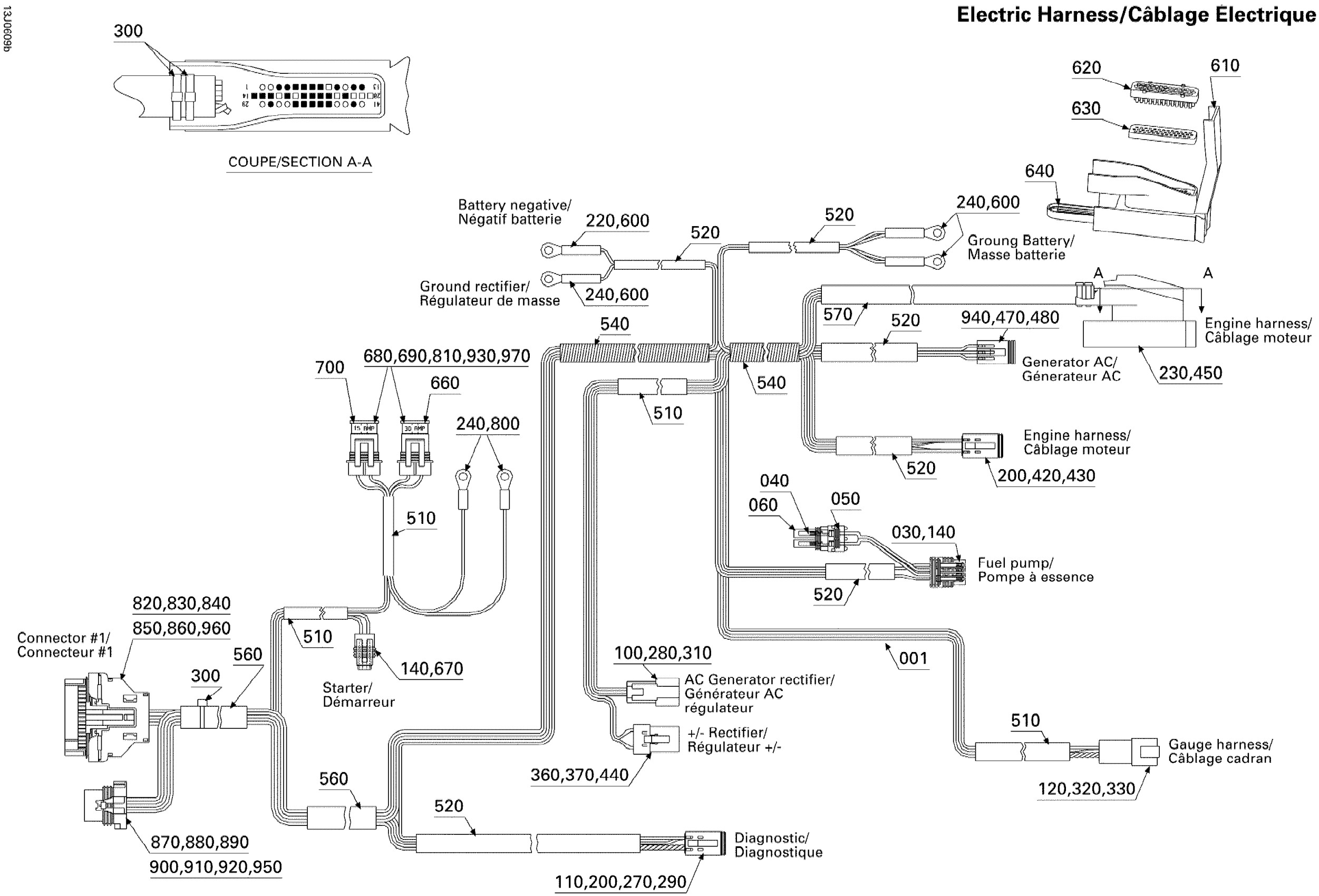

Sea-doo Speedster 200 Twin 4-TEC SCIC, Edition 1, 2006 10- Electrical Harness Diagram
#
001
Engine Harness | Starboard
204470811
Unavailable
030
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
278001308
Unavailable
040
Female Terminal
278000223
$3.19
050
Wire Seal
278000218
$4.39
060
Male Connector, 2 Circuits
278000220
$15.49
100
Male Terminal
515175823
$4.55
110
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
120
Male Terminal
278000631
$4.39
140
Female Terminal
278001114
$3.19
200
Female Terminal
278000632
$2.09
220
Open Barrel Terminal
278001392
$4.79
230
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership
278001751
Unavailable
240
Open Barrel Terminal
278001392
$4.79
270
Sealing Cap
293000052
$3.19
280
Male Lock, 3 Circuits
409207600
$3.19
290
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
300
Tie Wrap 142 mm
293750002
$1.25
310
Male Housing
278002378
$13.99
320
Male Connector, 12 Circuits
409015800
Unavailable
330
MALE LOCK, 12 CIRCUITS - Call your local BRP dealership
409015600
Unavailable
360
Female Terminal Housing, 2 Circuits
278001673
$23.49
370
Female Lock, 2 Circuits
278001671
$3.58
420
Male Connector, 4 Circuits | CE
278000739
$19.49
430
Male Lock, 4 Circuits | CE
278000738
$3.09
440
Female Terminal
515175567
$7.69
450
FEMALE TERMINAL - Call your local BRP dealership
278001750
Unavailable
470
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
480
Female Lock
409207200
$4.39
510
Not Available As Spare Part - Friction Washer
Unavailable
520
Not Available As Spare Part - Friction Washer
Unavailable
540
Not Available As Spare Part - Friction Washer
Unavailable
560
Not Available As Spare Part - Friction Washer
Unavailable
570
Not Available As Spare Part - Friction Washer
Unavailable
600
Not Available As Spare Part - Friction Washer
Unavailable
610
Not Available As Spare Part - Friction Washer
Unavailable
620
Not Available As Spare Part - Friction Washer
Unavailable
630
Not Available As Spare Part - Friction Washer
Unavailable
640
Not Available As Spare Part - Friction Washer
Unavailable
660
Fuse, 20 Amperes
409003900
$3.28
670
Male Connector, 2 Circuits
278001113
$16.86
680
Fuse Holder
278001325
$8.79
690
Female Terminal
710000357
$7.69
700
Fuse, 15 Amperes
278000343
$3.28
800
Not Available As Spare Part - Friction Washer
Unavailable
810
Fuse Holder Cap
278001326
$7.69
820
Not Available As Spare Part - Friction Washer
Unavailable
830
SEAL WIRE - Call your local BRP dealership
710000394
Unavailable
840
Not Available As Spare Part - Friction Washer
Unavailable
850
FEMALE HOUSING - Call your local BRP dealership
710000395
Unavailable
860
Female Terminal
515175806
$0.99
870
Not Available As Spare Part - Friction Washer
Unavailable
880
Not Available As Spare Part - Friction Washer
Unavailable
890
Not Available As Spare Part - Friction Washer
Unavailable
900
Wire Seal
278000218
$4.39
910
Not Available As Spare Part - Friction Washer
Unavailable
920
WIRE SEAL - Call your local BRP dealership
278001505
Unavailable
930
Cushion
278000805
$3.28
940
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
950
Not Available As Spare Part - Friction Washer
Unavailable
960
Plug
515175812
$2.19
970
Not Available As Spare Part - Friction Washer
Unavailable
