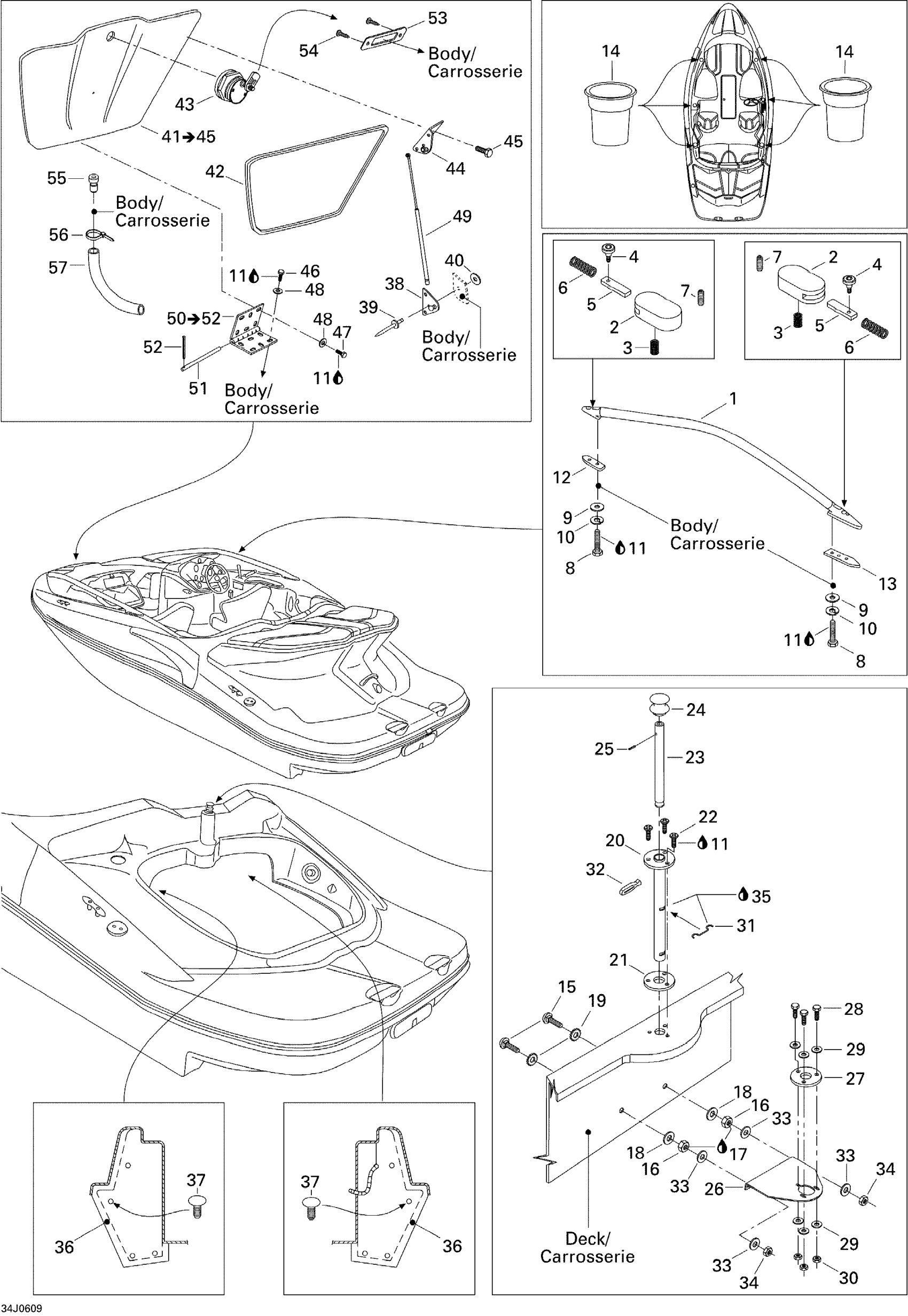

Sea-doo Speedster 200 Twin 4-TEC SCIC, Edition 1, 2006 09- Body And Accessories Diagram

#

Description
Price

1

Side Rail LH | Port Side

204071668

Unavailable

1

Side Rail RH | Starboard

204071667

Unavailable

2

Rail Insert

204130100

Unavailable

3

Rail Insert Spring

204130101

Unavailable

4

Rail Insert Screw

204100149

Unavailable

5

Push Pin

204130102

Unavailable

6

Push Pin Spring

204130103

Unavailable

7

Safety Screw

204100150

Unavailable

8

HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership

204100135

Unavailable

9

Flat Washer 10 mm, Stainless

234002600

$2.22

10

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

11

Loctite 243, 10 ml

293800060

$21.49

12

GASKET, FRONT - Call your local BRP dealership | With Tower

204130063

Unavailable

13

GASKET, REAR - Call your local BRP dealership | With Tower

204130064

Unavailable

14

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

15

Elevator Bolt

204000130

Unavailable

16

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

17

Loctite 271, 10 ml

293800005

$26.99

18

Flat Washer M6, Stainless

234062600

$0.77

19

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

20

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

21

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

22

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

23

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

24

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

25

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

26

FIXATION PLATE - Call your local BRP dealership

204071839

Unavailable

27

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

28

Hex. Forming Screw M6 X 20

207162060

$1.29

29

Flat Washer M6, Stainless

234062600

$0.77

30

Hex. Elastic Stop Nut M6

232561600

$1.15

31

SPRING - Call your local BRP dealership

291001205

Unavailable

32

Windshield Latch

570023800

$4.49

33

Flat Washer M6, Stainless

234062600

$0.77

34

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

35

Synthetic Grease, 400 G

293550010

Unavailable

36

SOUNDWALL SEAL - Call your local BRP dealership

204071935

Unavailable

37

Black Dart

293730014

$0.99

38

Shock Bracket

204071673

Unavailable

39

Pop Rivet 3/16"

293150043

$2.09

40

Flat Washer M5, Stainless

234051600

$0.77

41

Bow Cover | Includes 39 to 43

204072465

Unavailable

42

Was 293200017 Neoprene Seal

219704365

$149.99

43

FLUSH LATCH - Call your local BRP dealership

204071937

Unavailable

44

Shock Bracket

204073074

$27.99

45

Hex. Screw M4 X 12, Scotch Grip

207341260

Unavailable

46

Hex. Screw M6 X 25

207162560

$1.47

47

Hex. Screw M6 X 16

207161660

$1.59

48

Stainless Flat Washer M6

234061600

$0.33

49

CYLINDER GAS SHOCK - Call your local BRP dealership

204071918

Unavailable

50

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

51

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

52

Cotter Pin M2.5 X 12

204070205

Unavailable

53

LATCH PLATE - Call your local BRP dealership

204072027

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

DRAIN FITTING - Call your local BRP dealership

204071783

Unavailable

56

Tie Wrap 94 mm | 4X4

293750001

$1.03

57

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99
