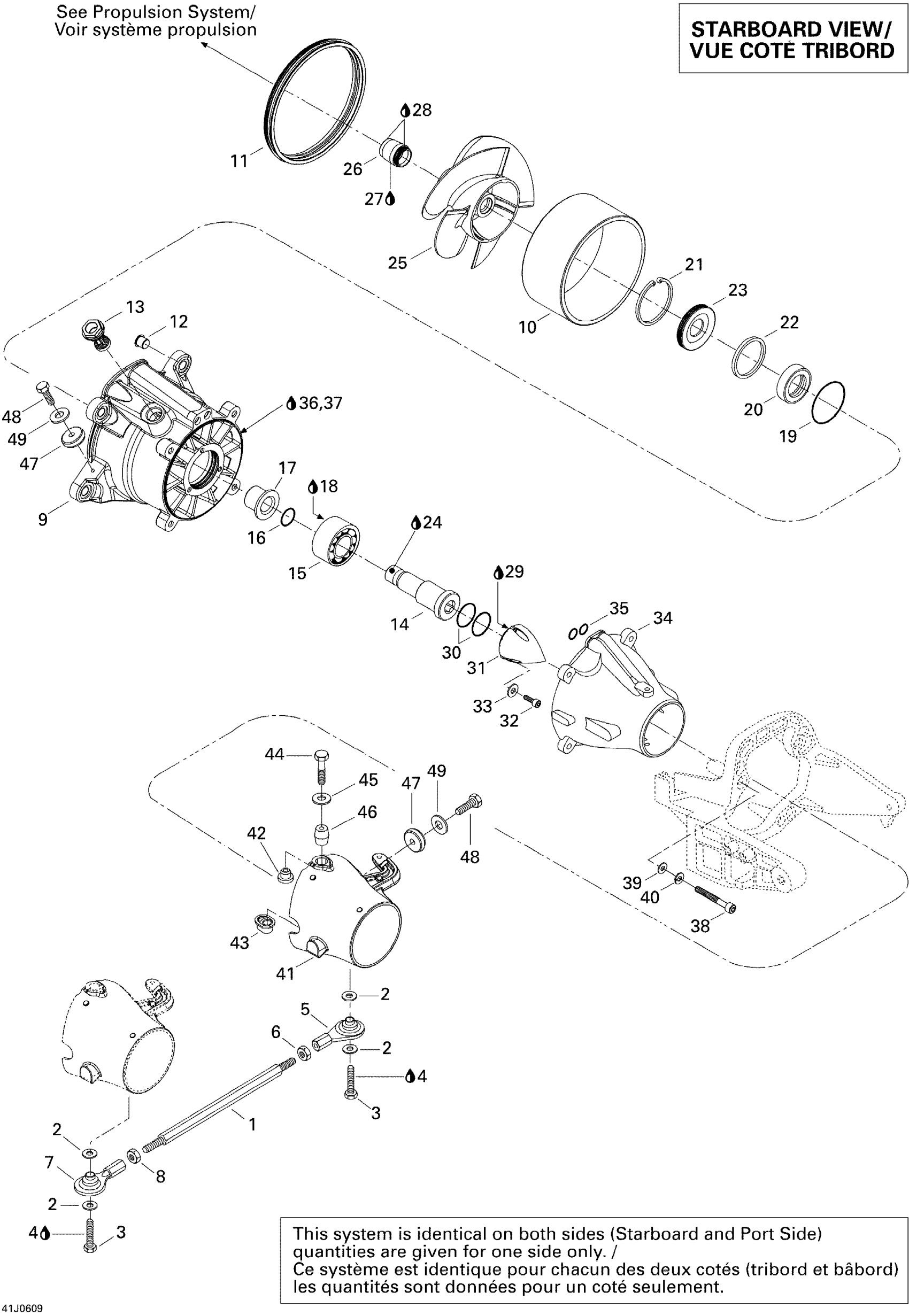

Sea-doo Speedster 200 Twin 4-TEC SCIC, Edition 1, 2006 Pump Diagram

#

Description
Price

1

LINK ROD - Call your local BRP dealership

204120255

Unavailable

2

Stainless Flat Washer M6

234061600

$0.33

3

Hex. Screw M6 X 25

207162560

$1.47

4

Loctite 243, 10 ml

293800060

$21.49

5

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

6

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

7

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

8

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

9

Impeller Housing

267000084

Unavailable

10

Wear Ring

267000372

$84.99

11

Neoprene Seal

293200087

$12.63

12

Bushing

267000093

$9.59

13

Plug | Includes 370z to 370z1

267000282

$19.49

14

Impeller Shaft

267000054

$116.49

15

Angled Bearing This part replaces 267000030.

267000900

$80.99

16

O-Ring

505070315

$2.85

17

Shaft Sleeve

267000318

$134.99

18

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

19

O-Ring

293300090

$7.20

20

Seal

271002071

$33.99

21

Circlip

293370038

$8.79

22

Spacer

271001393

$8.59

23

Oil Seal

293200089

$19.99

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Impeller Ass'y This part replaces 267000249.

267000697

$391.99

26

Guard

271002228

$12.99

27

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

28

Synthetic Grease, 400 G

293550010

Unavailable

29

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

30

O-Ring

293300086

$3.59

31

Impeller Cover

267000262

$21.99

32

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

33

Stainless Flat Washer M6

234061600

$0.33

34

VENTURI, BLACK - Call your local BRP dealership

271001485

Unavailable

35

O-Ring

293300013

$8.18

36

Was 293800041 Loctite Primer 7649

219704458

$39.99

37

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

38

Socket Screw M8 X 110, Scotch Grip

231181060

$9.89

39

Flat Washer M8.5 x 18

293050001

$3.07

40

Lock Washer 8 mm, Stainless

234181601

$0.55

41

STEERING NOZZLE, BLACK - Call your local BRP dealership

271001787

Unavailable

42

Venturi Bushing

293900001

$7.62

43

Plastic Bushing

293900010

$9.59

44

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

45

Flat Washer M8.5 x 18

293050001

$3.07

46

Sleeve

271001816

$14.99

47

Anode Zinc

271001813

$18.99

48

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

49

Stainless Flat Washer M6

234061600

$0.33
