- Speedster 200 Twin 4-TEC SCIC, Edition 1, 2006
03- PTO Cover And Magneto 1

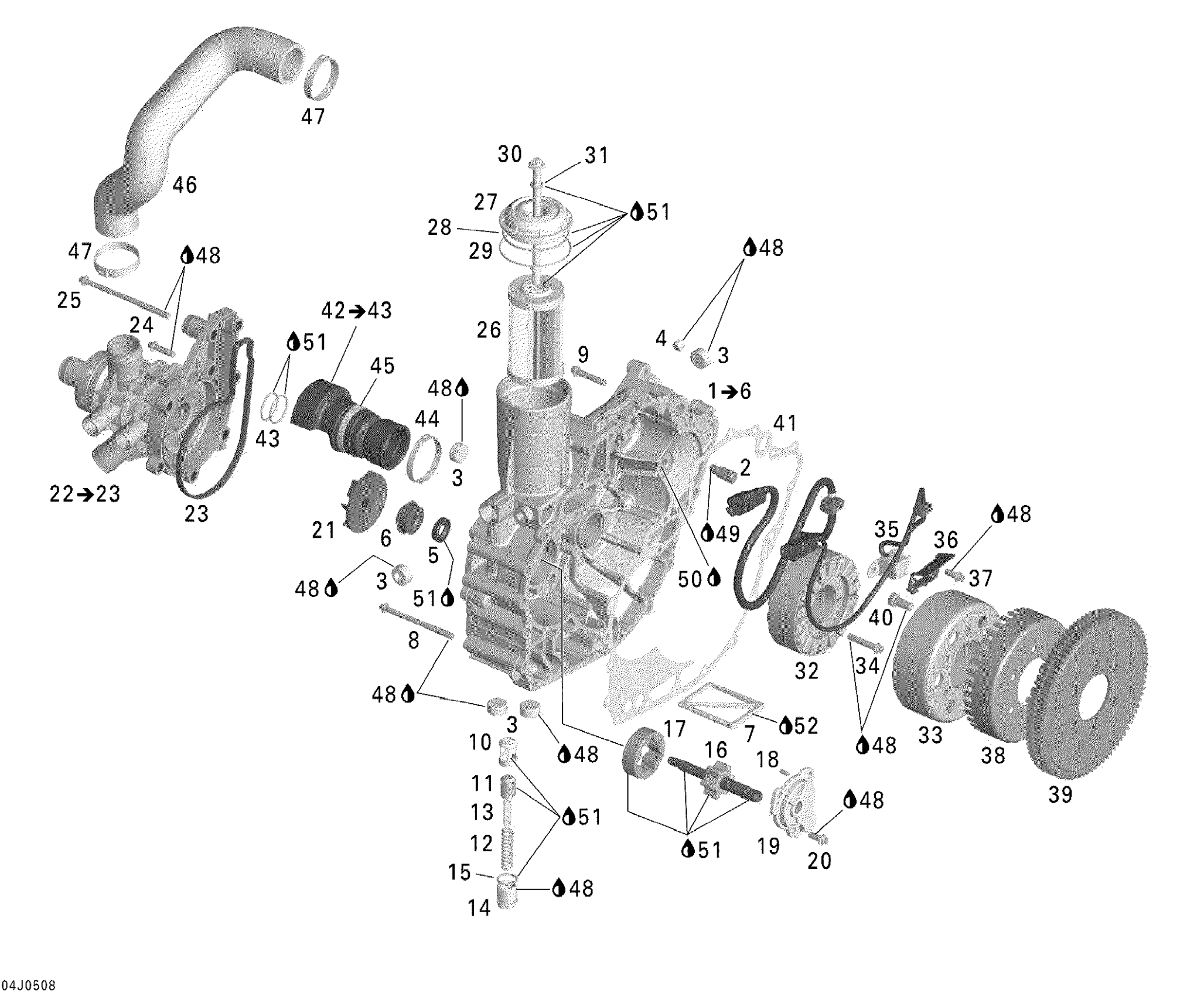

Sea-doo Speedster 200 Twin 4-TEC SCIC, Edition 1, 2006 03- PTO Cover And Magneto 1 Diagram
#
1
TIMING/DRIVE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 6
420811579
Unavailable
2
SPRAY NOZZLE - Call your local BRP dealership
420856012
Unavailable
3
Plug Screw M20 X 1.5
420641317
$14.22
4
Plug Screw M10 X 1
420641323
$14.28
5
Oil Seal
420650315
$11.65
6
Rotary Seal
420650371
$43.49
7
Oil Sieve
420956950
$16.86
8
Torx Flange Screw M6 X 85
420641228
$7.41
9
Torx Flange Screw M6 X 35
420641258
$3.38
10
Valve Seat Sleeve
420256606
$29.49
11
Piston Valve
420256638
$22.99
12
Compression Spring
420939211
$8.99
13
Compression Spring
420939401
$14.75
14
Plug Screw M20 X 1.5
420641052
$37.99
15
O-Ring
420230890
$5.39
16
Pump Shaft Ass'y
420837472
$56.99
17
Oil Pump Rotor 16 mm
420956675
$36.99
18
Needle Pin
420929070
$1.90
19
Oil Pump Cover
420811591
$37.99
20
Torx Flange Screw M6 X 16
420641048
$2.96
21
Impeller
420922801
$17.53
22
Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.
420922921
$309.99
23
Water Pump Housing Gasket | Included in gasket kit
420950840
$15.27
24
Torx Flange Screw M6 X 25
420641238
$3.27
25
Torx Flange Screw M6 X 105
420641338
$7.41
26
Oil Filter
420956741
$13.77
27
Oil Filter Cover
420610329
$33.99
28
O-Ring
420850500
$3.17
29
O-Ring
420230923
$3.17
30
Oil Filter Screw Kit
295501207
$39.99
31
O-Ring
420950860
$3.91
32
STATOR ASS'Y - Call your local BRP dealership
420889720
Unavailable
33
MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership
420889710
Unavailable
34
Torx Flange Screw M6 X 35
420641258
$3.38
35
CRANKSHAFT SENSOR - Call your local BRP dealership
420664140
Unavailable
36
Retaining Plate
420926300
$16.37
37
Torx Flange Screw M6 X 16
420641048
$2.96
38
Trigger Wheel
420966851
$18.49
39
Double Starter Gear 86/86 Teeth
420834485
Unavailable
40
Hex Screw
295501162
$15.28
41
Timing Drive Cover Gasket (1603 NA) | Included in gasket kit
420931130
$23.49
42
Ball Bearing With Bellows Ass'y | Includes 50 to 52
420832648
$142.99
43
O-Ring
420631612
$4.33
44
Gear Clamp
420851653
$7.41
45
Gear Clamp 46.8-50.0MM
420853023
$7.41
46
Formed Hose
420922822
$66.49
47
Oetiker Clamp
420851687
$11.65
48
Loctite 243, 10 ml
293800060
$21.49
49
Sealant Loctite 648
219703000
$45.99
50
Dow Corning 111, 150 g
413707000
$59.99
51
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
52
Loctite 5910, 300 ml
293800081
$57.99
