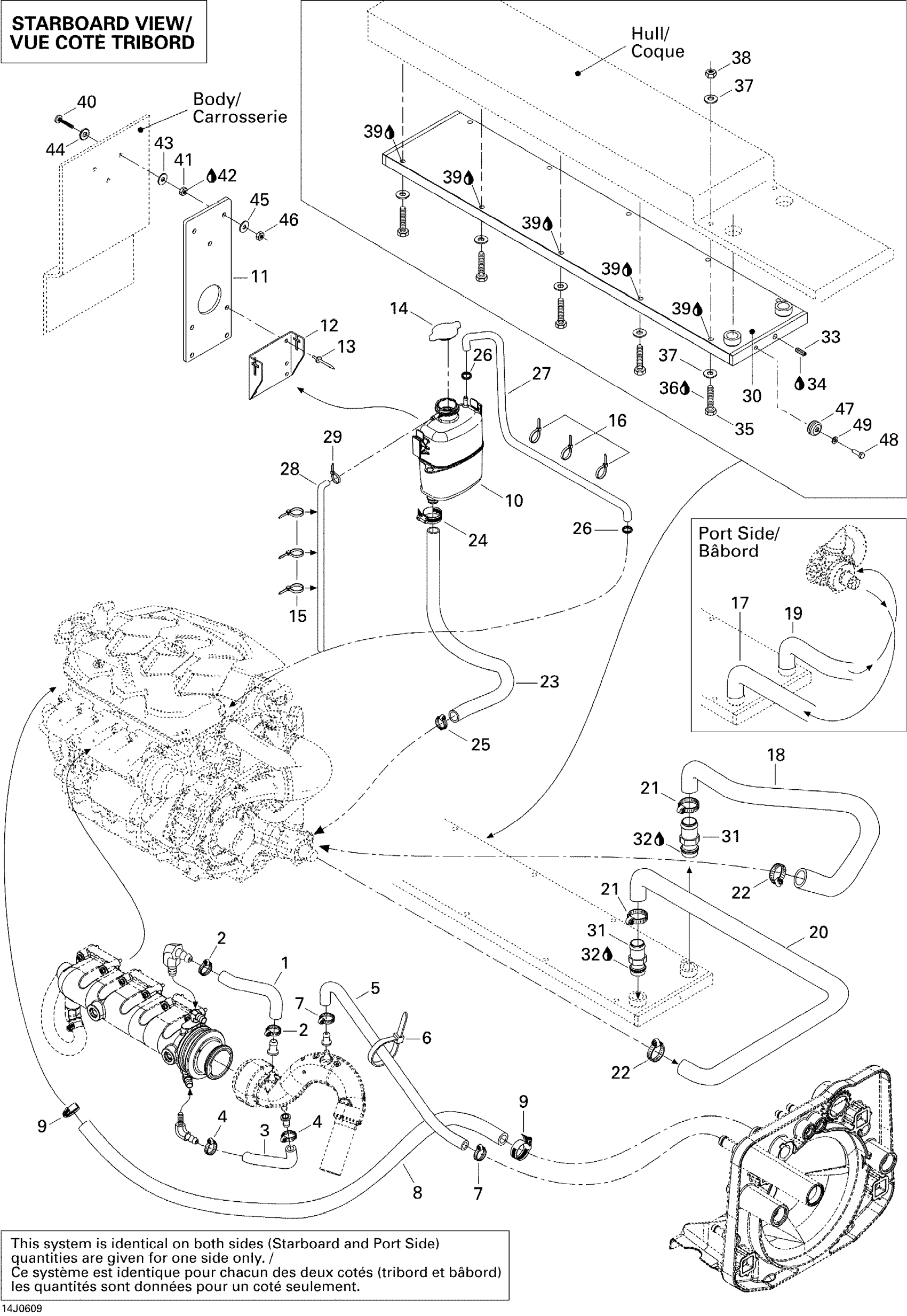

Sea-doo Speedster 200 Twin 4-TEC SCIC, Edition 1, 2006 Cooling System Diagram

#

Description
Price

1

Formed Hose

276000155

Unavailable

2

Tridon Gear Clamp

293650172

$3.09

3

FORMED HOSE - Call your local BRP dealership

276000156

Unavailable

4

Tridon Gear Clamp

293650172

$3.09

5

Was 276000001 Hose 12.5 mm

219704394

$51.99

6

Tie Wrap 368 mm

293750008

$1.04

7

Tridon Gear Clamp

293650172

$3.09

8

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

9

Tridon Gear Clamp

293650051

$4.19

10

Coolant Tank

276000086

$109.99

11

Coolant Tank Bracket Mount

204300145

Unavailable

12

Coolant Tank Bracket

204300165

Unavailable

13

Pop Rivet 3/16"

293150008

$0.50

14

Pressure Cap | Includes 720 to 720a

276000100

$25.99

15

Tie Wrap 142 mm

293750002

$1.25

16

Tie Wrap 142 mm

293750002

$1.25

17

FORMED HOSE - Call your local BRP dealership | Port Side

204300136

Unavailable

18

FORMED HOSE - Call your local BRP dealership | Starboard

204300137

Unavailable

19

FORMED HOSE - Call your local BRP dealership | Port Side

204300138

Unavailable

20

FORMED HOSE - Call your local BRP dealership | Starboard

204300139

Unavailable

21

Tridon Gear Clamp

293650045

$5.69

22

Tridon Gear Clamp

293650045

$5.69

23

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

24

Tridon Gear Clamp

293650051

$4.19

25

Tridon Gear Clamp

293650019

$5.82

26

Oetiker Gear Clamp

293650025

$3.09

27

Was 275500549 Hose 1/4"

219704357

$194.99

28

Polyurethane Hose 10000Mm Long

219704410

$56.99

29

Tie Wrap 94 mm | 4X4

293750001

$1.03

30

Heat Exchanger

204300155

Unavailable

31

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

32

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

33

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

34

Was 293800013 Loctite 56765

219704454

$65.99

35

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

36

Loctite 243, 10 ml

293800060

$21.49

37

Flat Washer 10 mm, Stainless

234000600

$1.46

38

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

39

Instant Gasket

219701421

$51.99

40

Elevator Bolt

204000130

Unavailable

41

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

42

Loctite 271, 10 ml

293800005

$26.99

43

Flat Washer M6, Stainless

234062600

$0.77

44

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

45

Flat Washer M6, Stainless

234062600

$0.77

46

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

47

Anode Zinc

271001813

$18.99

48

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

49

Stainless Flat Washer M6

234061600

$0.33
