- Speedster 200 Twin 4-TEC SC, 2005
10- Weedless System

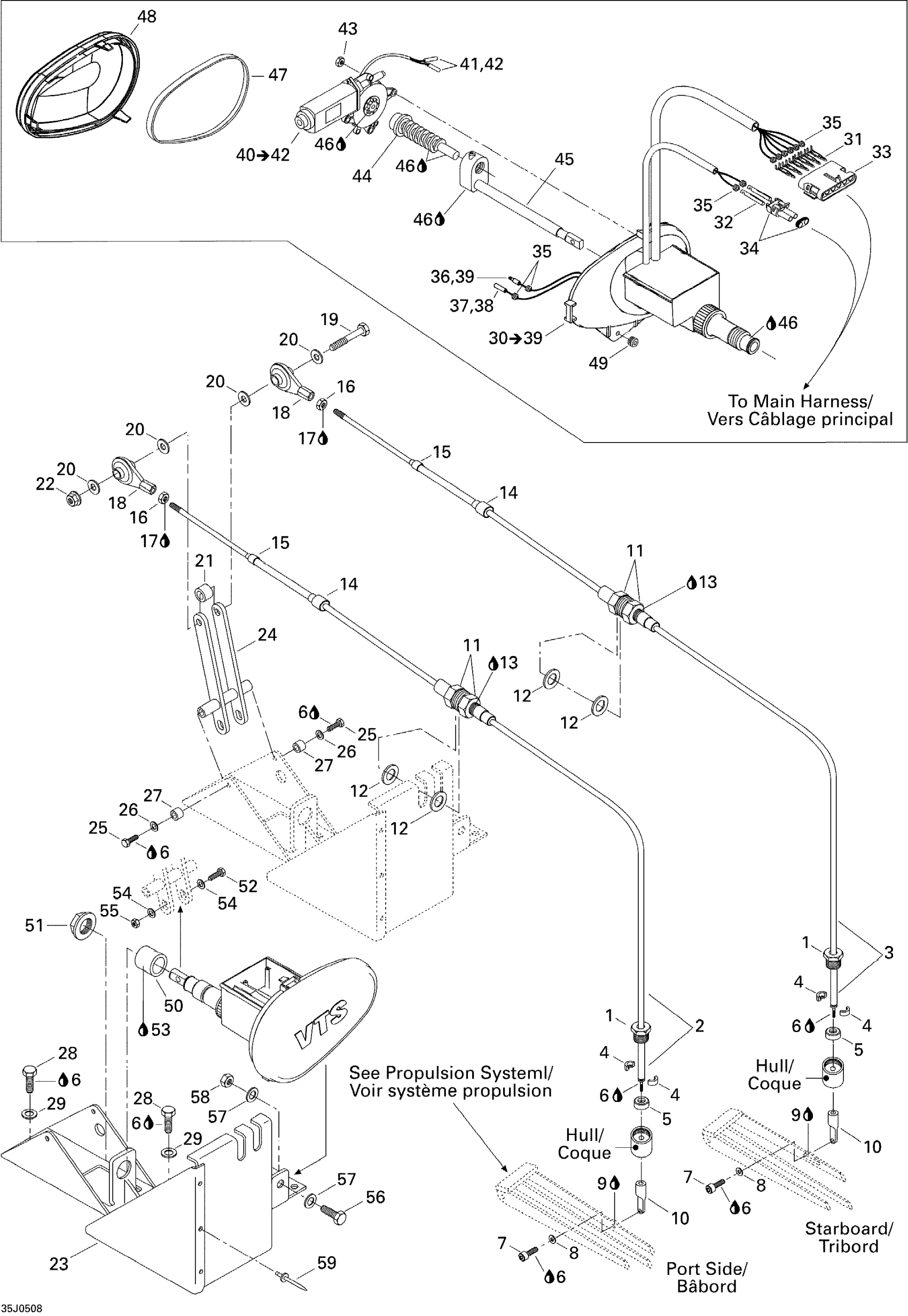

Sea-doo Speedster 200 Twin 4-TEC SC, 2005 10- Weedless System Diagram
#
1
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
2
LH Weedless Cable, Port Side
204200113
Unavailable
3
RH Weedless Cable, Starboard
204200114
Unavailable
4
HALF RING - Call your local BRP dealership
204200009
Unavailable
5
THRU HULL SEAL - Call your local BRP dealership
204200118
Unavailable
6
Loctite 243, 10 ml
293800060
$21.49
7
Pivot Socket Screw M5 x 0.8
204100138
Unavailable
8
FLAT WASHER 5 MM - Call your local BRP dealership
234052100
$1.99
9
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
10
Joint
204200006
Unavailable
11
Hex. Jam Nut
212100006
Unavailable
12
Flat Washer
213200017
Unavailable
13
Loctite 243, 10 ml
293800060
$21.49
14
Boot, Large
277000473
Unavailable
15
Boot, Small
277000466
Unavailable
16
Hex. Nut
212100005
$1.35
17
Loctite 243, 10 ml
293800060
$21.49
18
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
19
Hex. Screw M6 X 70
207067060
$5.61
20
Flat Washer M6, Stainless
234062600
$0.77
21
NYLON SPACER - Call your local BRP dealership
204200112
Unavailable
22
Hex. Elastic Stop Nut M6
232561600
$1.15
23
Weedless Support Ass'y
204471003
Unavailable
24
Pivot-arm Ass'y
204471006
Unavailable
25
Hex. Screw M6 X 16
207161660
$1.59
26
Stainless Flat Washer M6
234061600
$0.33
27
SPACER 6.7 MM - Call your local BRP dealership
277000584
Unavailable
28
Hex. Screw M6 X 30
207163060
$1.48
29
Stainless Flat Washer M6
234061600
$0.33
30
V.T.S. HOUSING ASSY - Call your local BRP dealership | Includes 27 to 36
278001606
Unavailable
31
Male Terminal | XT Models
278000222
$3.19
32
Female Terminal
278000223
$3.19
33
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000156
Unavailable
34
Male Connector, 2 Circuits
278000220
$15.49
35
Wire Seal
278000218
$4.39
36
Insulated Sheath
278001008
$3.28
37
Insulated Sheath
278001007
$3.58
38
Female Terminal | DS 650 X
278001009
$3.19
39
Male Terminal
278000230
$4.39
40
Windshield Motor
278002579
$234.99
41
Insulation Sheath
278000231
$5.08
42
Male Terminal
278000230
$4.39
43
Hex. Elastic Stop Nut M6
232561600
$1.15
44
Worm Screw
278000428
$14.30
45
Sliding Block Ass’y
278001698
$43.99
46
Synthetic Grease, 400 G
293550010
Unavailable
47
GASKET - Call your local BRP dealership
293200027
Unavailable
48
V.T.S. COVER - Call your local BRP dealership
278000595
Unavailable
49
GROMMET - Call your local BRP dealership
293720015
Unavailable
50
ABS SPACER - Call your local BRP dealership
204470857
Unavailable
51
SPECIAL NUT M27 - Call your local BRP dealership
211100020
Unavailable
52
Hex. Screw M6 X 40
207164060
$3.38
53
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
54
Flat Washer M6, Stainless
234062600
$0.77
55
Hex. Elastic Stop Nut M6
232561600
$1.15
56
Hex. Screw M8 X 30
207183060
$1.58
57
Flat Washer M8, Stainless
234080600
$1.48
58
Hex. Elastic Nut M8
232581600
$1.48
59
Pop Rivet 3/16"
293150039
$1.49
