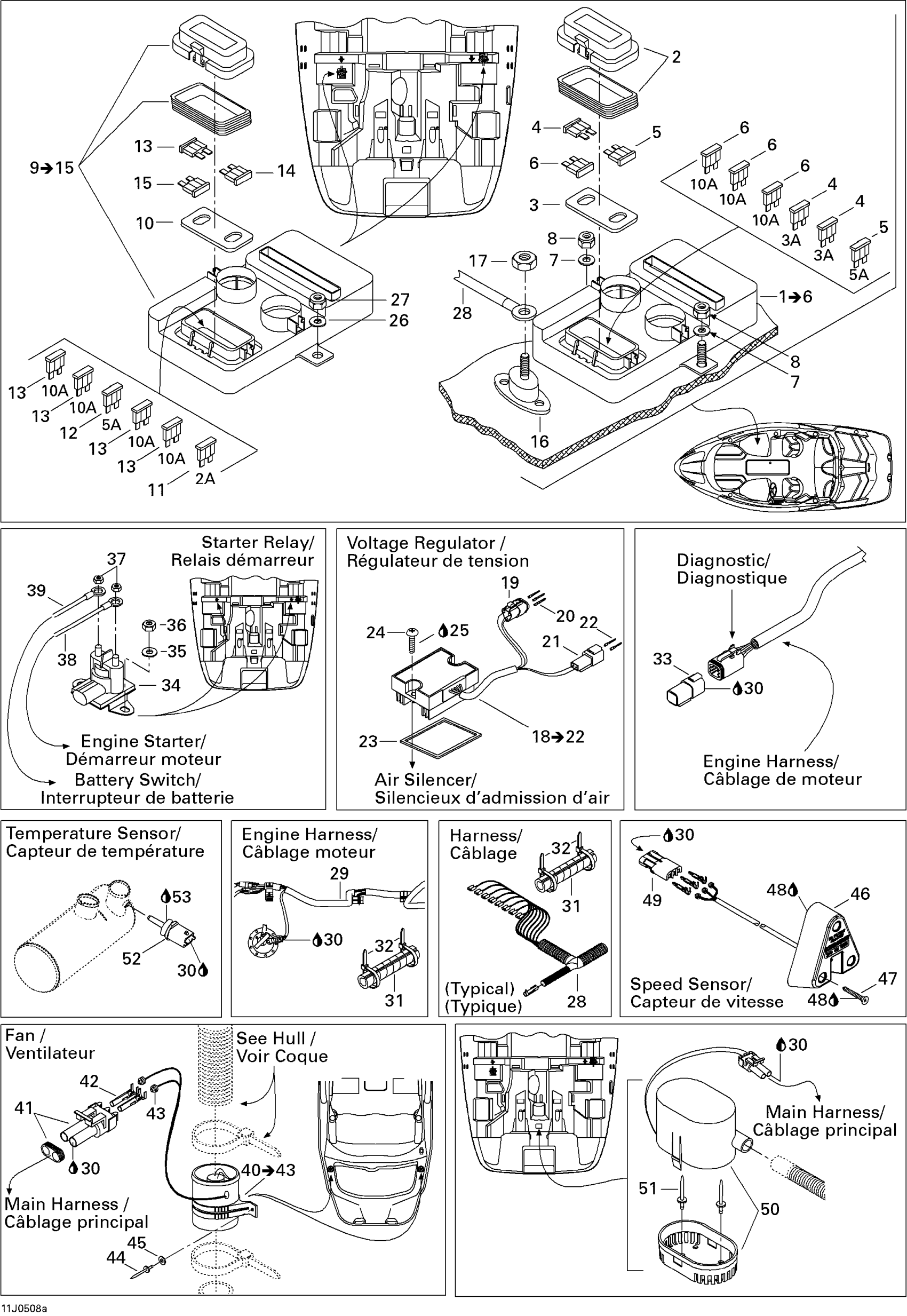

Sea-doo Speedster 200 Twin 4-TEC SC, 2005 Electrical Accessories 1 Diagram

#

Description
Price

1

TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America

204471262

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.12

6

Fuse, 10 Amperes | North America

278001197

$2.06

7

Flat Washer M6, Stainless

234062600

$0.73

8

Hex. Elastic Stop Nut M6

232561600

$1.06

9

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

10

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

11

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

12

Fuse, 5 Amperes | CE

278000344

$3.12

13

Fuse, 10 Amperes | North America

278001197

$2.06

14

Fuse, 20 Amperes

409003900

$3.12

15

Fuse, 30 Amperes

410917200

$3.12

16

Ground Post

204470715

Unavailable

17

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

18

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

19

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

20

Female Terminal

278000632

$1.94

21

Mâle Terminal Housing, 2 Circuits

278001674

$29.07

22

Male Terminal

515175568

$7.25

23

SEAL - Call your local BRP dealership

293250123

Unavailable

24

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

25

Loctite 271, 10 ml

293800005

$23.85

26

Flat Washer M6, Stainless

234062600

$0.73

27

Hex. Elastic Stop Nut M6

232561600

$1.06

28

Accessory Harness

204470903

Unavailable

29

Engine Harness | Starboard

204470811

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

31

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

32

Tie Wrap 142 mm

293750002

$1.01

33

Diagnostic Connector

278002704

$17.88

34

Starter Relay

278003012

$40.27

35

Flat Washer M6, Stainless

234062600

$0.73

36

Hex. Elastic Stop Nut M6

232561600

$1.06

37

Hex. Elastic Stop Nut M6

232561600

$1.06

38

Red Cable

204470852

Unavailable

39

RED CABLE - Call your local BRP dealership

204470853

Unavailable

39

RED CABLE - Call your local BRP dealership | Starboard

204470838

Unavailable

40

Fan Ass'y | Includes 44 to 47

204470108

$131.31

41

Male Connector, 2 Circuits

278000220

$12.66

42

Female Terminal

278000223

$2.93

43

Wire Seal

278000218

$4.00

44

Pop Rivet 3/16"

293150008

$0.46

45

Flat Washer 5 mm, Stainless

234052600

$0.73

46

Speed Sensor

278001993

$164.90

47

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

48

Silicone Sealant 5150, 300 ml

293800086

Unavailable

49

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

50

BILGE PUMP - Call your local BRP dealership

204470562

Unavailable

51

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

52

Temperature Sensor

278002895

$36.54

53

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48
