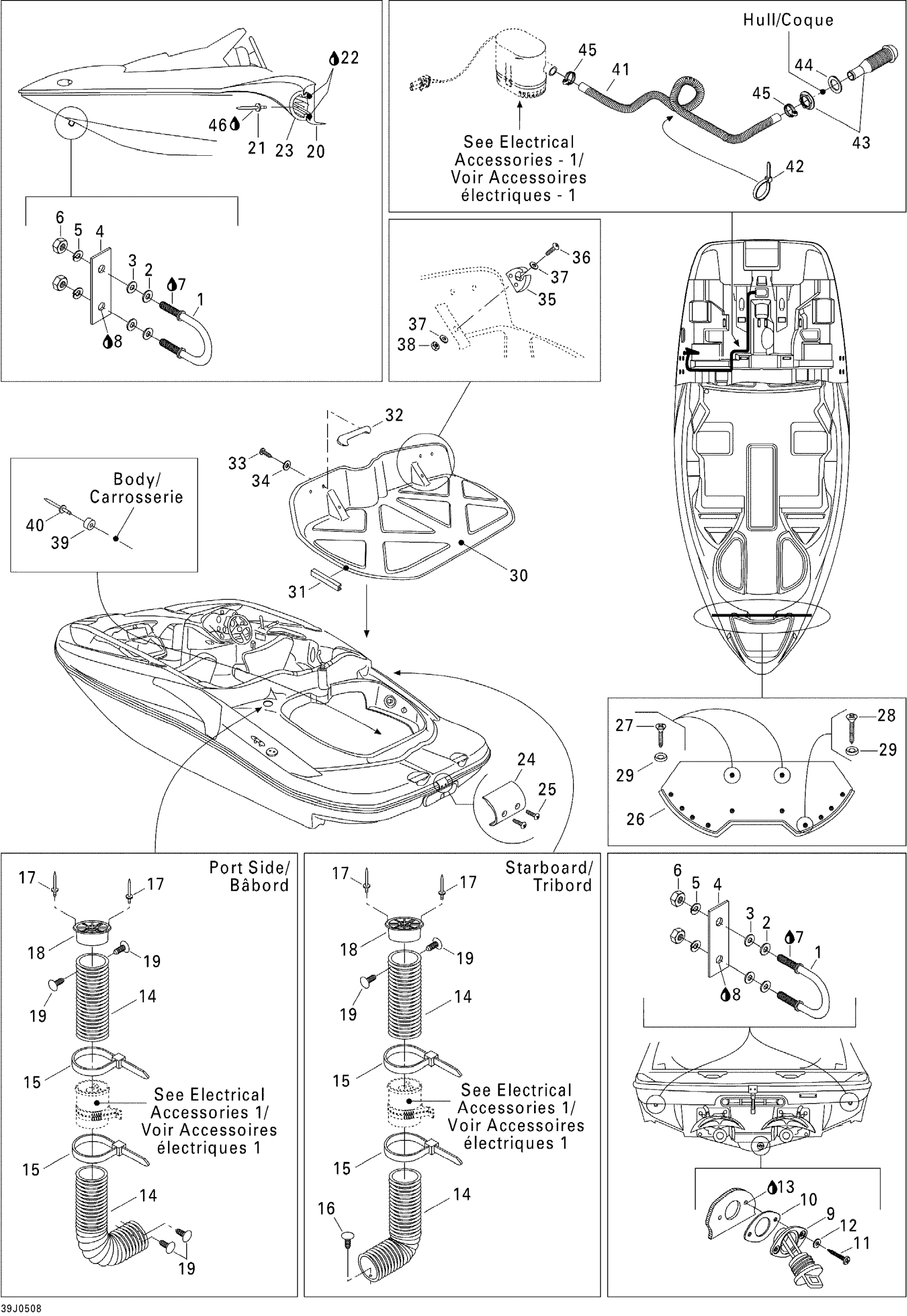

Sea-doo Speedster 200 Twin 4-TEC SC, 2005 Hull Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

Flat Washer M8.5 x 18

293050001

$3.07

3

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Hex. Nut M8

232081600

$1.47

7

Loctite 271, 10 ml

293800005

$26.99

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

Drain Plug

292000187

$14.49

10

GASKET - Call your local BRP dealership

293250030

Unavailable

11

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

12

Flat Washer 4 mm, Stainless

234041600

$1.15

13

Silicone Sealant 51388, 300 ml

296000309

$36.99

14

Was 204050122 Vent Hose 4"

219704358

$25.99

15

Tie Wrap 368 mm

293750008

$1.04

16

Black, Dart

293730006

$0.99

17

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

18

VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.

204050803

Unavailable

19

Black, Dart

293730006

$0.99

20

Bumper, Black

204050467

Unavailable

21

Pop Rivet 3/16"

293150013

$1.37

22

Silicone Sealant 51388, 300 ml

296000309

$36.99

23

Bumper Trim, Black

204050463

Unavailable

24

BUMPER COVER, BLACK - Call your local BRP dealership

204050031

Unavailable

25

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

26

TRIM LOCK, METER - Call your local BRP dealership

204130079

Unavailable

27

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

28

PHILLIPS TAPPING SCREW M4.8 X 51 - Call your local BRP dealership

250000087

Unavailable

29

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

30

ENGINE ACCESS COVER - Call your local BRP dealership

269700130

Unavailable

31

Seal Tray 1000Mm Long

219704368

$13.99

32

Black, Handle - Call your local BRP dealership

204050159

Unavailable

33

Hex. Flange Screw K40 X 16

241141660

$1.48

34

Flat Washer 4 mm, Stainless

234042600

$1.15

35

Pole Support

291000642

Unavailable

36

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

37

Flat Washer 4 mm

234040600

$0.55

38

Elastic Stop Nut M4

232541600

$1.15

39

Rubber Stopper

293830043

Unavailable

40

RIVET - Call your local BRP dealership

293150065

Unavailable

41

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

42

Tie-Rap 180 mm

414115200

$0.11

43

Fitting

293710162

$13.49

44

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

45

Tridon Clamp

293650016

$10.99

46

Silicone Sealant 51388, 300 ml

296000309

$36.99
