- Speedster 200 Twin 4-TEC SC, 2005
09- Front Console And Glove Box

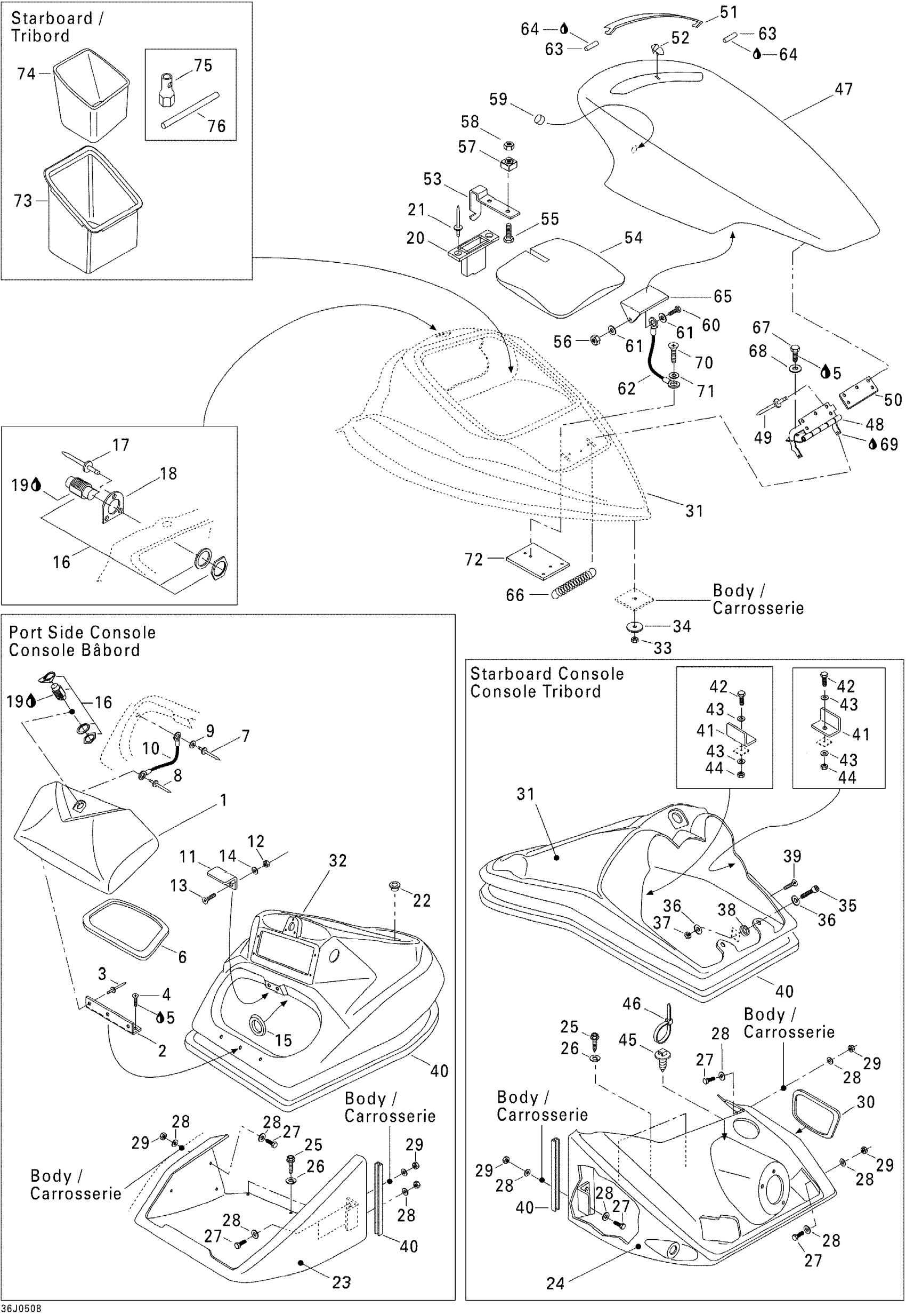

Sea-doo Speedster 200 Twin 4-TEC SC, 2005 09- Front Console And Glove Box Diagram
#
1
GLOVE BOX DOOR - Call your local BRP dealership
204072269
Unavailable
2
Hinge, Black
204071945
Unavailable
3
Pop Rivet 3/16"
293150088
$0.99
4
Phillips Pan Head Screw M4 X 40
250000169
$1.48
5
Loctite 243, 10 ml
293800060
$21.49
6
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
7
Pop Rivet 3/16"
293150008
$0.50
8
Pop Rivet 3/16"
293150008
$0.50
9
Flat Washer 5 mm, Stainless
234052600
$0.77
10
RETAINER CABLE - Call your local BRP dealership
204071498
Unavailable
11
KEEPER - Call your local BRP dealership
204070060
Unavailable
12
Elastic Stop Nut M4
232541600
$1.15
13
Phillips Screw M4 X 16
208641660
$0.90
14
Flat Washer 4 mm
234040600
$0.55
15
SPLIT LOOM 3/8, METER - Call your local BRP dealership
204050326
Unavailable
16
LATCH KIT, 3 LATCHES - Call your local BRP dealership
204071838
Unavailable
17
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
18
LATCH PLATE - Call your local BRP dealership
204070304
Unavailable
19
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
20
LATCH GUIDE - Call your local BRP dealership
204072064
Unavailable
21
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
22
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
23
Lower Console Ass'y, Port Side | Port Side
204072186
Unavailable
24
Lower Console Ass'y, Starboard | Starboard
204072188
Unavailable
25
Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership
204050138
Unavailable
26
Lock Washer 1/4”
211200025
$1.29
27
Hex. Screw M6 X 35
207163560
$1.49
28
Flat Washer M6, Stainless
234062600
$0.77
29
Hex. Elastic Stop Nut M6
232561600
$1.15
30
Slit Conduit, Meter
204550045
Unavailable
31
Upper Console Ass'y, Starboard | Starboard
204072190
Unavailable
32
Upper Console Ass'y, Port Side | Port Side
204072191
Unavailable
33
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
33
Elastic Stop Nut 5/16-18
204100100
Unavailable
34
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
34
Stainless Steel Washer 5/16" | 955B, 955D
202000355
Unavailable
35
HEX. SCREW M6 X 45 - Call your local BRP dealership
207064560
Unavailable
36
Flat Washer M6, Stainless
234062600
$0.77
37
Hex. Elastic Stop Nut M6
232561600
$1.15
38
ALUMINUM SPACER - Call your local BRP dealership
204071928
Unavailable
39
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
40
Trim, White, 7/16”, Meter
204070446
Unavailable
41
Not Available As Spare Part - Friction Washer
Unavailable
42
HEX. SCREW M6 X 45 - Call your local BRP dealership
207064560
Unavailable
43
Flat Washer M6, Stainless
234062600
$0.77
44
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
45
Mount Dart
293730040
$1.04
46
Tie-Rap 180 mm
414115200
$0.11
47
Windshield This part replaces 204620079.
291003861
$380.99
48
HINGE ASS'Y - Call your local BRP dealership
204620281
Unavailable
49
Pop Rivet 3/16"
293150039
$1.49
50
RETAINING PLATE - Call your local BRP dealership
204620087
Unavailable
51
DEFLECTOR - Call your local BRP dealership
204073803
$63.99
52
REAR STOPPER - Call your local BRP dealership
204620106
Unavailable
53
LATCH - Call your local BRP dealership
204620070
Unavailable
54
FOAM, WINDSCREEN - Call your local BRP dealership
204620080
Unavailable
55
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
56
Hex. Elastic Nut M5 | X
232551600
$1.15
57
NUT HOUSING - Call your local BRP dealership
204073798
Unavailable
58
Hex. Elastic Nut M5 | X
232551600
$1.15
59
RUBBER STOPPER - Call your local BRP dealership
204620295
Unavailable
60
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
61
Flat Washer 5 mm, Stainless
234052600
$0.77
62
RETAINER CABLE - Call your local BRP dealership
204620194
Unavailable
63
ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership
204620126
Unavailable
64
Glue Tube, Loctite 454, 20 G
413708300
$60.99
65
CABLE ATTACHEMENT - Call your local BRP dealership
204620127
Unavailable
66
HINGE SPRING - Call your local BRP dealership
204620018
Unavailable
67
Hex. Screw M5 X 20
207152060
$1.47
68
Flat Washer 5 mm, Stainless
234052600
$0.77
69
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
70
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
71
Flat Washer M6, Stainless
234062600
$0.77
72
WINDSCREEN INSERT - Call your local BRP dealership
204620280
Unavailable
73
STORAGE TRAY - Call your local BRP dealership
269501940
$53.99
74
ICEBOX FOAM - Call your local BRP dealership
204630008
Unavailable
75
Socket Wrench
529035731
Unavailable
76
Not Available As Spare Part - Friction Washer
Unavailable
