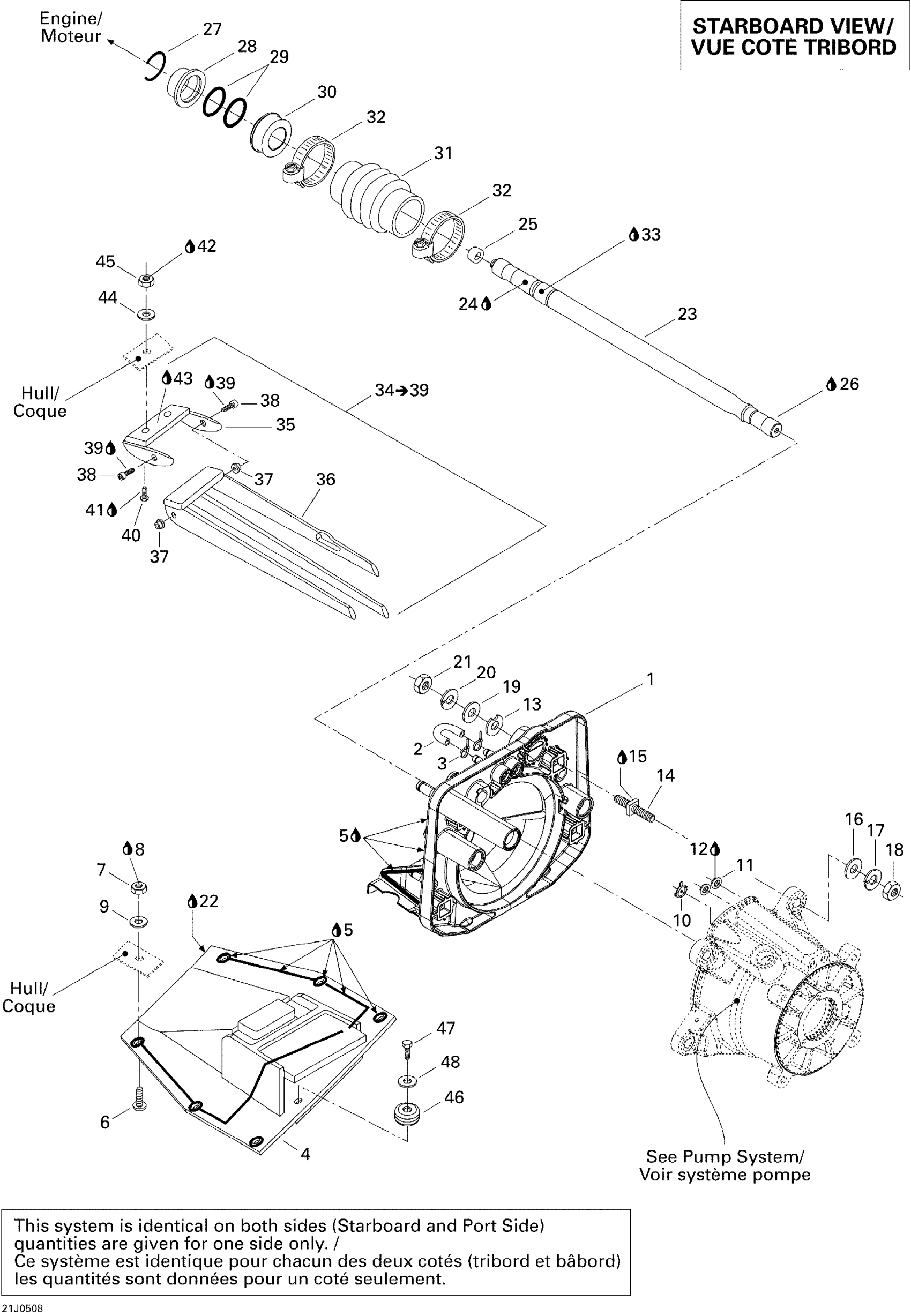

Sea-doo Speedster 200 Twin 4-TEC SC, 2005 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120252

Unavailable

2

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

3

Tie Wrap 94 mm | 4X4

293750001

$0.96

4

Ride Plate, Port Side

204120286

Unavailable

4

Ride Plate, Starboard

204120287

Unavailable

5

Instant Gasket

219701421

$51.99

6

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

7

Hex. Elastic Stop Nut M6

232561600

$1.06

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

Flat Washer M6, Stainless

234062600

$0.73

10

Reducer

291001888

Unavailable

11

Watertight Seal

293250084

$6.67

12

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

13

Shim 0.3 mm

272000053

$9.21

13

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

14

Square Stud

250300022

$17.88

15

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

16

Flat Washer

211200051

$1.54

17

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

18

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

19

Flat Washer 10 mm, Stainless

234002600

$2.12

20

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Instant Gasket

219701421

$51.99

23

Drive Shaft

204120284

$442.51

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Drive Shaft Plug

272000173

$8.06

26

Synthetic Grease, 400 G

293550010

Unavailable

27

C-Clip

271001575

$5.21

28

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

29

O-Ring

293300044

$0.99

30

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

31

Bellows

272000183

$26.09

32

Norma Clamp

293650077

$7.01

33

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

34

Weedless Grate Ass’y, Starboard | Includes 29 to 34

204120258

Unavailable

34

Weedless Grate Ass’y, Port Side | Includes 29 to 34

204120259

Unavailable

35

Grate Support, Starboard

204120083

Unavailable

35

GRATE SUPPORT, PORT SIDE - Call your local BRP dealership

204120086

Unavailable

36

MOBILE GRATE, STARBOARD - Call your local BRP dealership

204120256

Unavailable

36

Mobile Grate, Port Side

204120257

Unavailable

37

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

38

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$1.88

41

Loctite 243, 10 ml

293800060

$21.49

42

Silicone Sealant 51388, 300 ml

296000309

$36.99

43

Instant Gasket

219701421

$51.99

44

Flat Washer M6, Stainless

234062600

$0.73

45

Hex. Elastic Stop Nut M6

232561600

$1.06

46

Anode Zinc

271001813

$15.64

47

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

48

Stainless Flat Washer M6

234061600

$0.28
