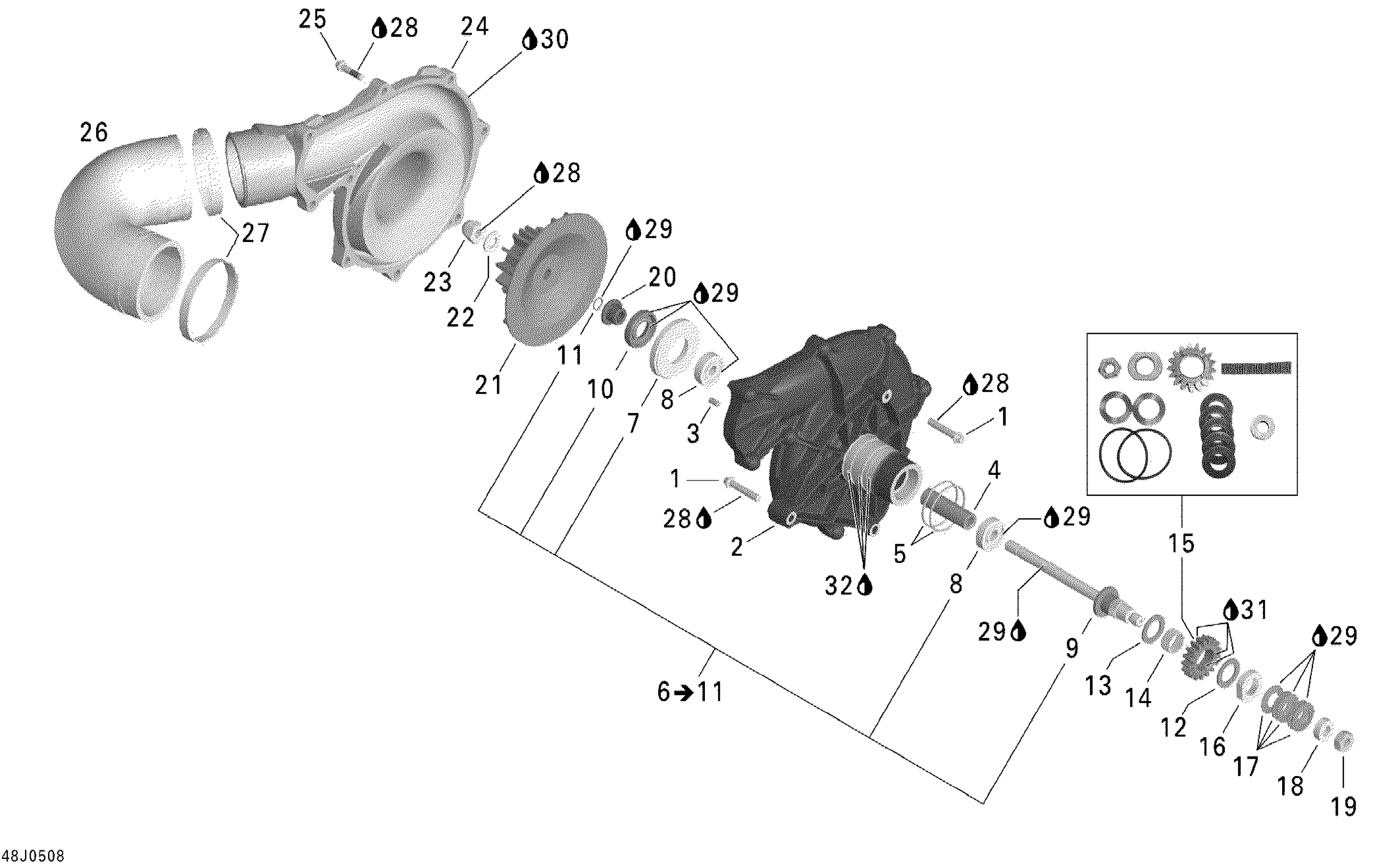

Sea-doo Speedster 200 Twin 4-TEC SC, 2005 Supercharger Diagram

#

Description
Price

1

Torx Flange Screw M6 X 35

420641258

$3.38

2

Compressor Base Plate

420867180

$264.99

3

Drive Pin 5 X 10

420929650

$1.68

4

Spacer

420947022

Unavailable

5

O-Ring | Included in gasket kit

420650270

$8.01

6

Booster Shaft Kit | Includes 6 to 11

420881945

Unavailable

7

THRUST WASHER - Call your local BRP dealership

420926393

Unavailable

8

Bearing Ball This part replaces 420832710.

420832713

$39.99

9

Compressor Shaft Ass’y

420837569

Unavailable

10

Oil Seal

420950940

$30.49

11

O-Ring

420950950

$1.01

12

Ceramic Shim

420626022

Unavailable

13

Ceramic Shim

420626023

Unavailable

14

Needle Pin This part replaces 420632430.

420632435

$35.99

15

Supercharger Kit Bv This part replaces 420881940.

420881151

$481.49

16

LOCK WASHER - Call your local BRP dealership

420926376

Unavailable

17

SPRING WASHER - Call your local BRP dealership

420939220

Unavailable

18

LOCK WASHER - Call your local BRP dealership

420926376

Unavailable

19

HEX. NUT - Call your local BRP dealership

420942950

Unavailable

20

STEP COLLAR - Call your local BRP dealership

420947012

Unavailable

21

Compressor Impeller

420867191

$759.99

22

SHIM - Call your local BRP dealership

420927413

Unavailable

23

CAP NUT - Call your local BRP dealership

420842833

Unavailable

24

Compressor Housing

420867154

$114.99

25

Torx Flange Screw M6 X 25

420641238

$3.27

26

FORMED HOSE - Call your local BRP dealership

420660151

Unavailable

27

Gear Clamp

420851703

$22.99

28

Loctite 243, 10 ml

293800060

$21.49

29

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

30

Loctite 5910, 300 ml

293800081

$57.99

31

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

32

Grease, Super Lube

293550030

$28.99
