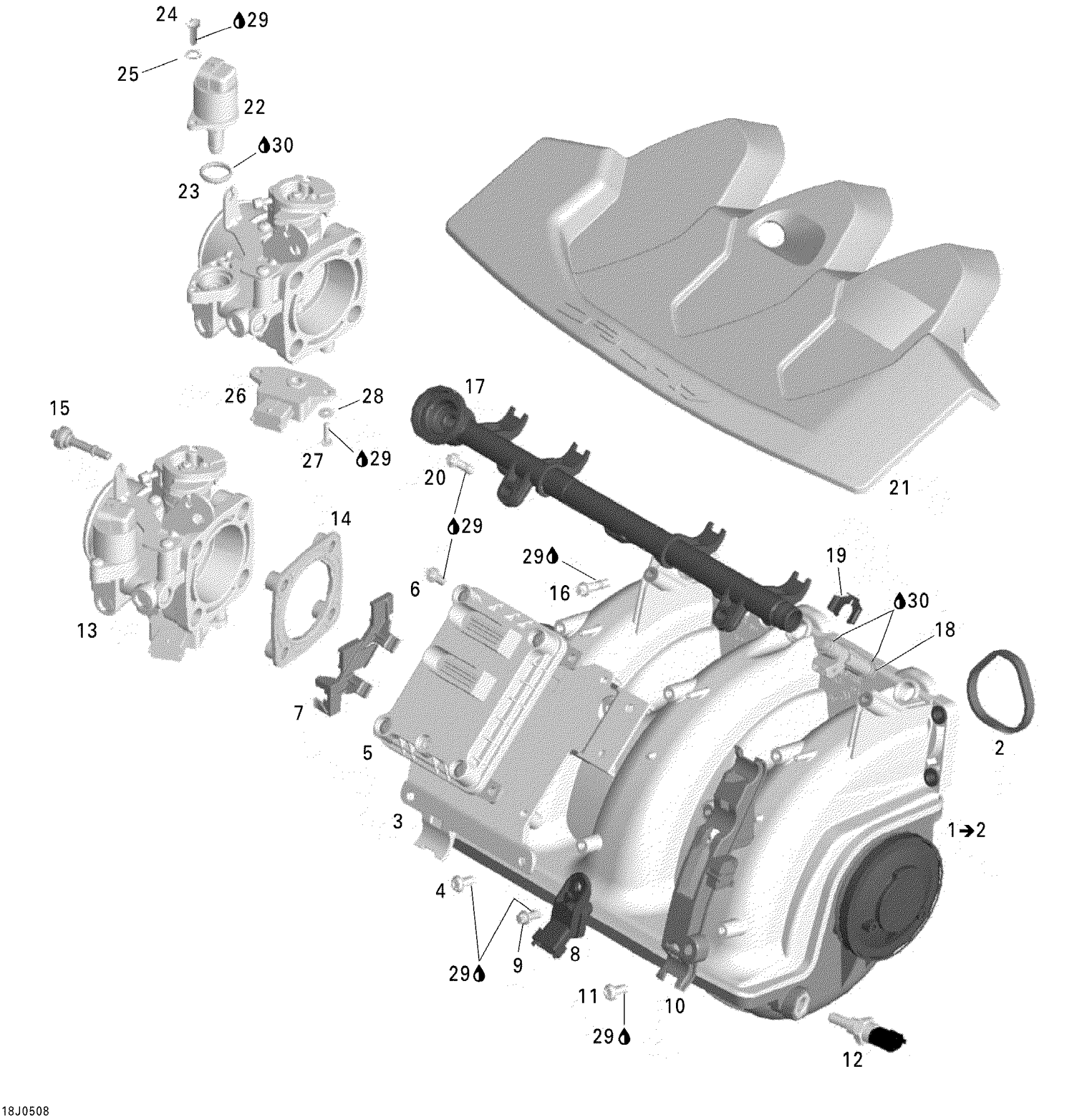

Sea-doo Speedster 200 Twin 4-TEC SC, 2005 Air Intake Manifold Diagram

#

Description
Price

1

Induction Manifold | Includes 1 to 2

420867951

$592.51

2

Gasket | Included in gasket kit

420950740

$4.15

3

BASE PLATE - Call your local BRP dealership

420851521

Unavailable

4

Torx Flange Screw M6 X 16

420641048

$2.82

5

ELECTRONIC BOX - Call your local BRP dealership

420665471

Unavailable

6

Torx Flange Screw M6 X 16

420641588

$2.00

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

Unavailable

8

Pressure Sensor

420274058

$125.34

9

Torx Flange Screw M6 X 16

420641048

$2.82

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$2.00

12

Temperature Sensor

278002895

$36.54

13

Throttle Body

420892450

$858.93

14

Rubber Gasket

420950792

$10.21

15

Allen Screw M6 x 30,5

420440561

$4.21

16

Torx Flange Screw M6 X 25

420641238

$3.07

17

FUEL RAIL ASS'Y - Call your local BRP dealership

420874391

Unavailable

18

Fuel Injector | Includes 19 to 20

420874520

$137.28

19

Injector Clip

420853030

$2.82

20

Torx Flange Screw M6 X 25

420641238

$3.07

21

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

22

Idle Bypass Valve

420963051

$291.76

23

O-Ring

420631780

$4.15

24

Binding Head Screw M5 X 16

420440911

$13.18

25

Snap Ring

420845710

$3.88

26

Position Sensor

420866120

$89.52

27

Phillips Screw M4 X 16

208641660

$0.85

28

Flat Washer 4 mm, Stainless

234042600

$1.06

29

Loctite 243, 10 ml

293800060

$21.49

30

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
