- Speedster 200 Twin 4-TEC SC, 2005
01- Engine And Air Intake Silencer

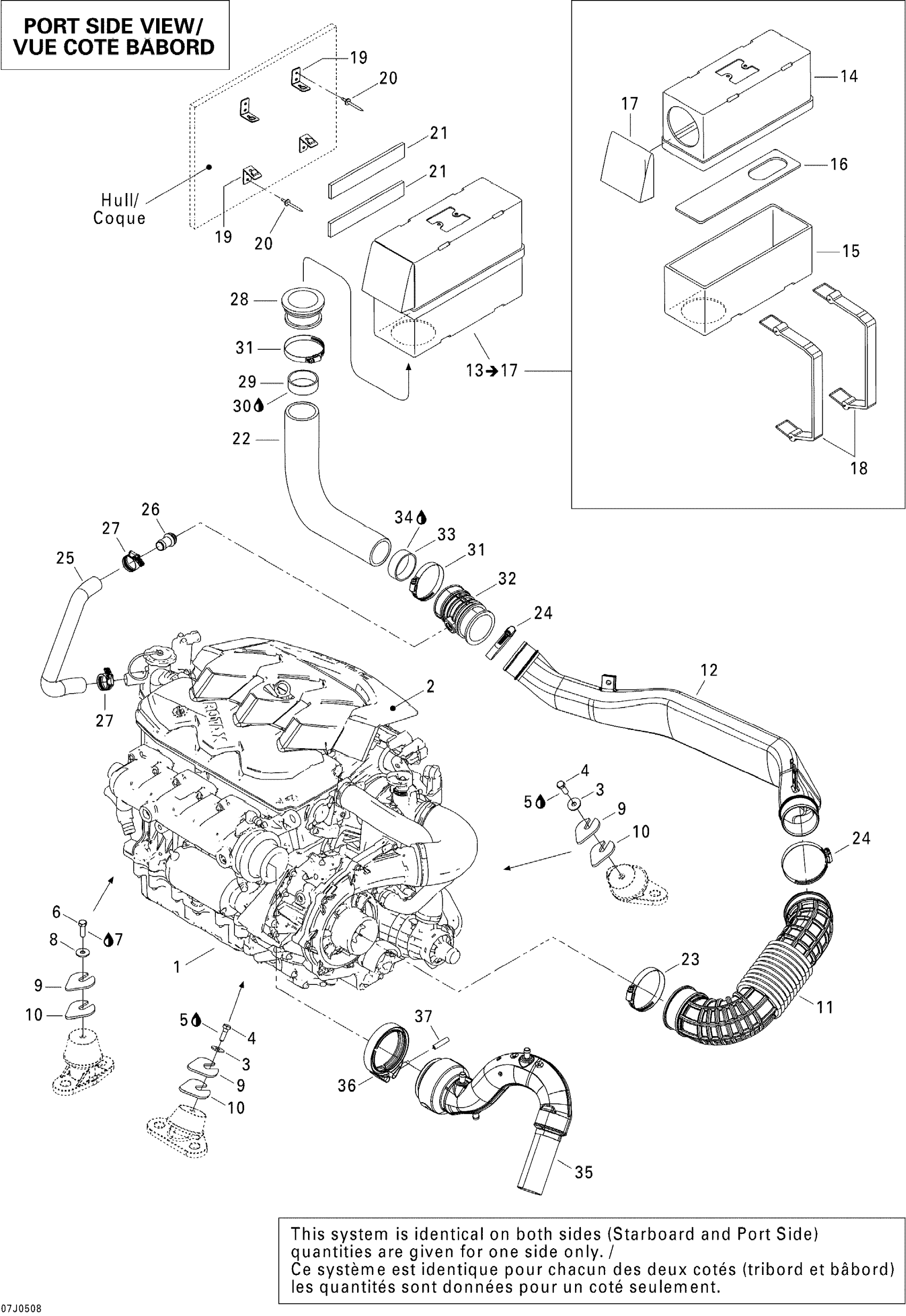

Sea-doo Speedster 200 Twin 4-TEC SC, 2005 01- Engine And Air Intake Silencer Diagram
#
1
Rotax Engine 4 Stokes «1503 Bv»
270000640
Unavailable
2
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
3
Flat Washer 8 mm, Stainless
234082600
$2.43
4
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
5
Loctite 243, 10 ml
293800060
$21.49
6
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
7
Loctite 243, 10 ml
293800060
$21.49
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
10
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
11
INTAKE HOSE - Call your local BRP dealership | Without Catalyst
273000188
Unavailable
12
Intake Hose
273000185
Unavailable
13
Air Silencer Ass'y | Includes 13 to 14
204250323
Unavailable
14
Air Silencer, Upper
204250260
Unavailable
15
Air Silencer, Lower
204250261
Unavailable
16
Air Silencer Divider
204250324
Unavailable
17
Air Silencer Hood
204250270
Unavailable
18
Retainer Strap
293850097
$11.64
19
Strap Clip 90°
204060017
Unavailable
20
Pop Rivet 3/16"
293150088
$0.99
21
NEOPRENE, METER - Call your local BRP dealership
202000024
Unavailable
22
INTAKE HOSE - Call your local BRP dealership
204340435
Unavailable
23
Tridon Clamp
293650179
$11.49
24
Tridon Clamp
293650179
$11.49
25
Hose
275500604
Unavailable
26
Breather Valve
273000234
$14.49
27
Tridon Gear Clamp
293650051
$4.19
28
INTAKE ADAPTATOR - Call your local BRP dealership
508000254
Unavailable
29
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
30
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
31
Tridon Clamp
293650179
$11.49
32
Adaptor Hose, Engine
204250276
Unavailable
33
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
34
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
35
EXHAUST PIPE - Call your local BRP dealership
274001089
Unavailable
36
Exhaust Clamp This part replaces 274000959.
274001472
$58.99
37
Polyurethane Hose 10000Mm Long
219704410
$56.99
