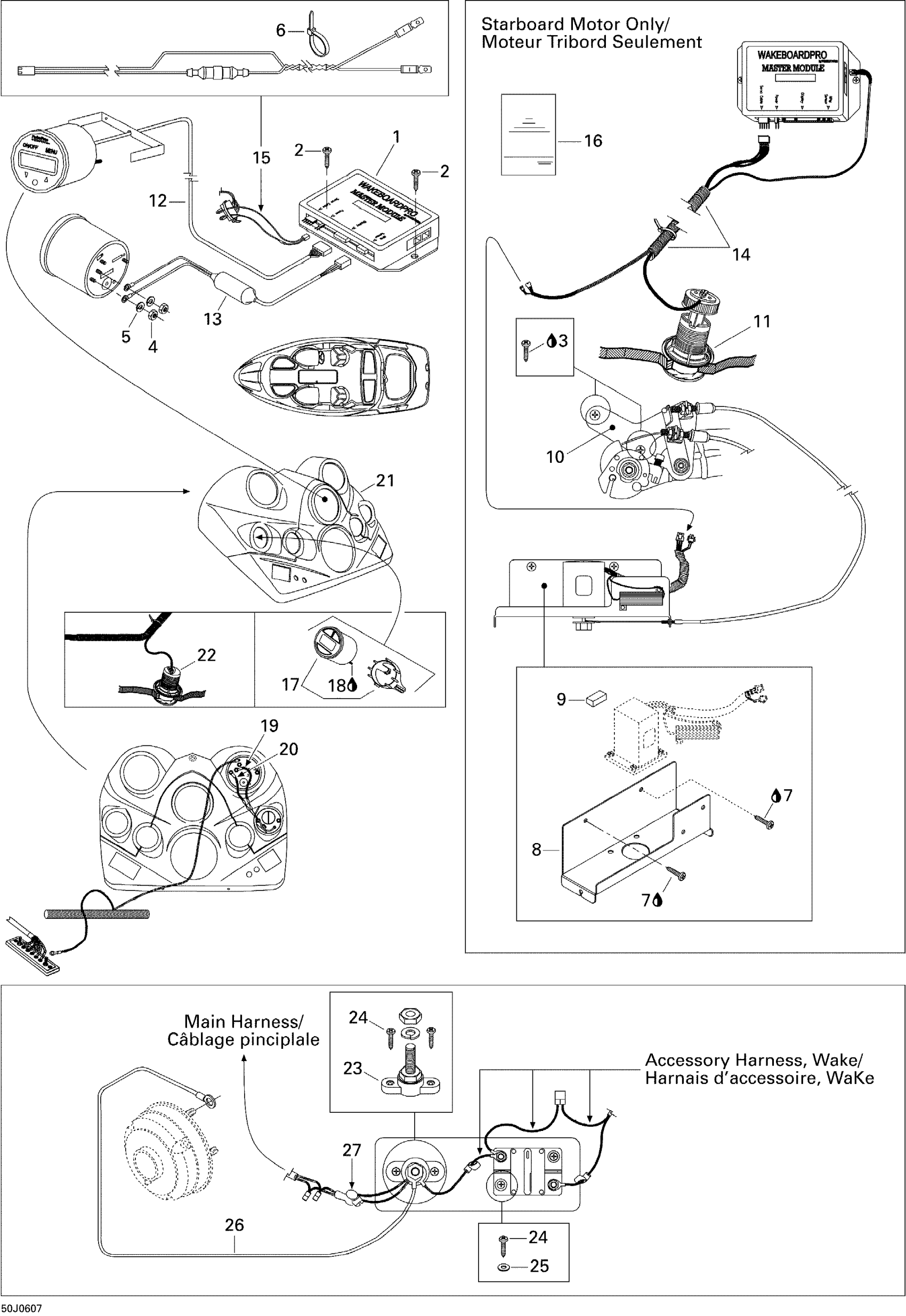

Sea-doo Speedster 200 Twin 4-TEC NA, WAKE, Edition 1, 2006 Speed Control Perfect Pass Diagram

#

Description
Price

1

Cruise Control Module | Wake

204250354

Unavailable

2

PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership

204100126

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Hex. Nut

212100005

$1.35

5

Helical Lock Washer M5

234151601

$1.15

6

Tie-Rap 180 mm

414115200

$0.11

7

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

8

SERVO/RESIST/BRACKET ASSY - Call your local BRP dealership

204250355

Unavailable

9

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

10

BRACKET - Call your local BRP dealership

204250357

Unavailable

11

SPEED SENSOR - Call your local BRP dealership

204250358

Unavailable

12

Speedometer Gauge | Wake

204250359

Unavailable

13

TACHOMETER HARNESS - Call your local BRP dealership

204250360

Unavailable

14

SPEEDOMETER HARNESS - Call your local BRP dealership

204250361

Unavailable

15

POWER HARNESS - Call your local BRP dealership

204250366

Unavailable

16

Owner Manual, Perfect Pass | Wake

204250364

Unavailable

17

DEPTH GAUGE - Call your local BRP dealership

204470917

Unavailable

18

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

19

Ground Wire Ass'y, Black | Wake

204471086

Unavailable

20

Power Wire Ass'y, Purple | Wake

204470995

Unavailable

21

Fascia Ass'y | WAKE

204471043

Unavailable

22

Depth Sensor

204471292

$194.99

23

POWER POST 3/8 - Call your local BRP dealership

204471083

Unavailable

24

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

25

Flat Washer 4 mm, Stainless

234041600

$1.15

26

Power Cable, Red

204471082

Unavailable

27

BOOT, RED - Call your local BRP dealership

204471081

Unavailable
