- Speedster 200 Twin 4-TEC NA, WAKE, Edition 1, 2006
09- Ballast Tank

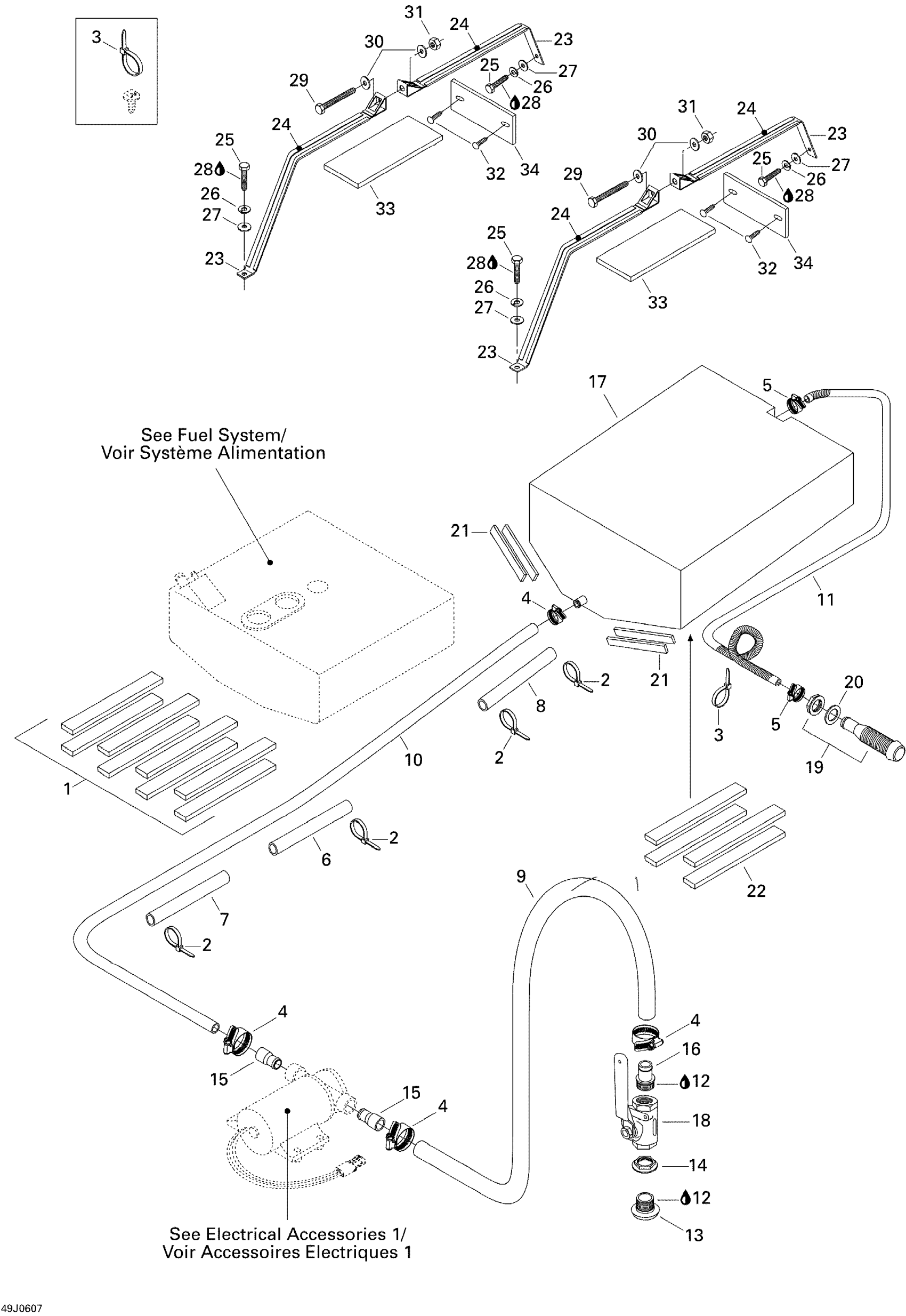

Sea-doo Speedster 200 Twin 4-TEC NA, WAKE, Edition 1, 2006 09- Ballast Tank Diagram
#
Description
Price
1
PROTECTOR PAD - Call your local BRP dealership
204560115
Unavailable
2
Tie-Rap 180 mm
414115200
$0.11
3
Tie-Rap 180 mm
414115200
$0.11
4
Tridon Gear Clamp
293650019
$5.82
5
Tridon Clamp
293650016
$10.99
6
Slit Conduit, Meter
204550045
Unavailable
7
Slit Conduit, Meter
204550045
Unavailable
8
Slit Conduit, Meter
204550045
Unavailable
9
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
10
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
11
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
12
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
13
THRU HULL FITTING, 3/4 - Call your local BRP dealership
204061017
Unavailable
14
Flange Nut 3/4", Bronze
204100165
Unavailable
15
Pump Fitting
204061015
Unavailable
16
Adapter
204061016
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Shut-Off Valve
204061013
Unavailable
19
Fitting
293710162
$13.49
20
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
21
NEOPRENE, METER - Call your local BRP dealership
202000024
Unavailable
22
NEOPRENE, METER - Call your local BRP dealership
202000024
Unavailable
23
FUEL TANK STRAP - Call your local BRP dealership
204560235
Unavailable
24
PROTECTOR PAD - Call your local BRP dealership
293830044
Unavailable
25
Hex. Screw M8 X 30
207183060
$1.58
26
Lock Washer 8 mm, Stainless
234181601
$0.55
27
Flat Washer 8 mm, Stainless
234082600
$2.43
28
Loctite 271, 10 ml
293800005
$26.99
29
HEX. SCREW M8 X 80 - Call your local BRP dealership
207188060
Unavailable
30
Flat Washer 8 mm, Stainless
234082600
$2.43
31
Hex. Elastic Nut M8
232581600
$1.48
32
Black, Dart
293730006
$0.99
33
NEOPRENE PAD - Call your local BRP dealership
204560191
Unavailable
34
MUFFLER RUBBER PAD - Call your local BRP dealership
204060702
Unavailable
