- Speedster 200 Twin 4-TEC NA, TOWER, Edition 1, 2006
09- Front Console And Glove Box TOWER

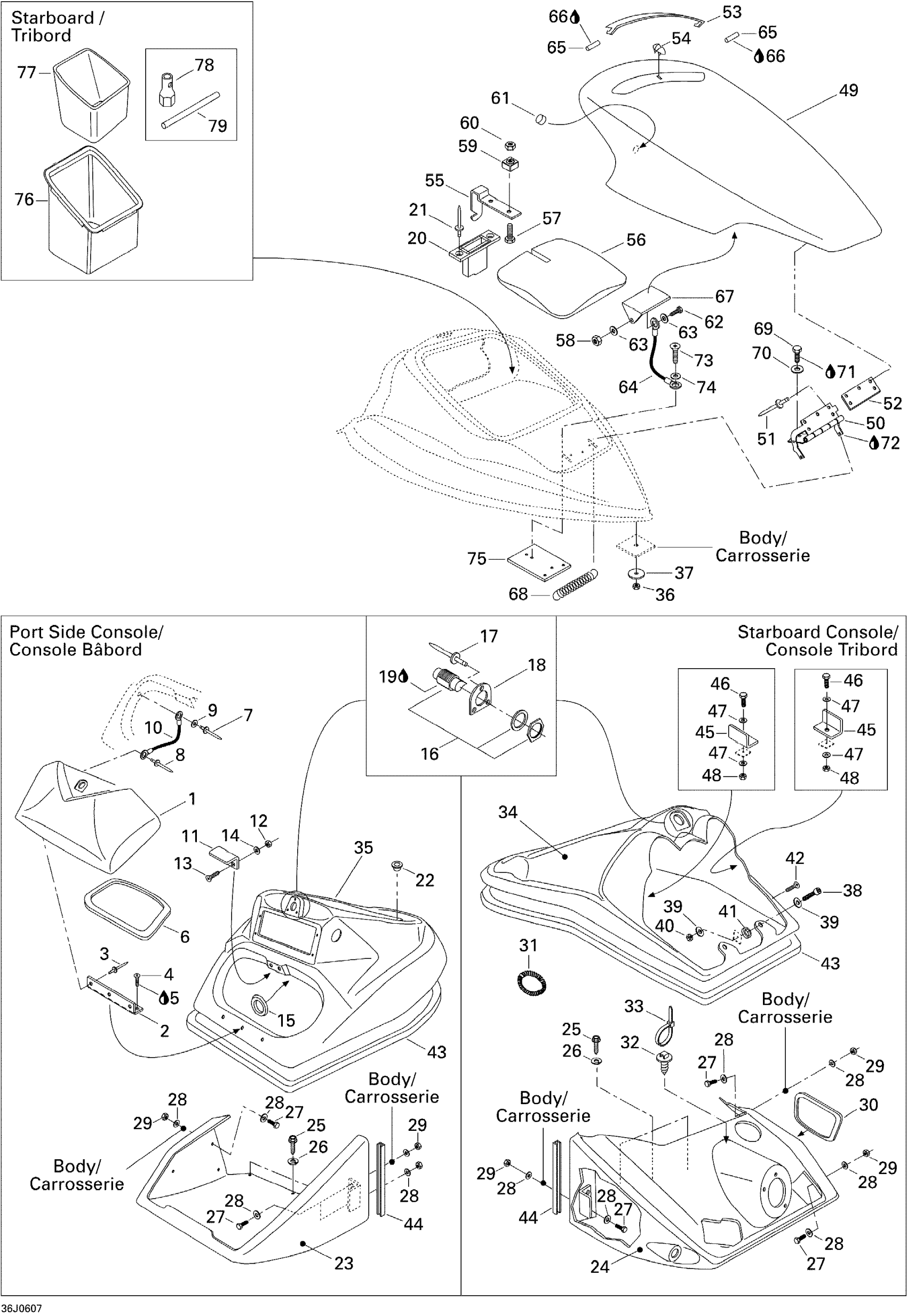

Sea-doo Speedster 200 Twin 4-TEC NA, TOWER, Edition 1, 2006 09- Front Console And Glove Box TOWER Diagram
#
1
GLOVE BOX DOOR - Call your local BRP dealership
204072269
Unavailable
2
Hinge, Black
204071945
Unavailable
3
Pop Rivet 3/16"
293150088
$0.99
4
Phillips Pan Head Screw M4 X 40
250000169
$1.48
5
Loctite 243, 10 ml
293800060
$21.49
6
Seal Tray 1000Mm Long
219704368
$13.99
7
Pop Rivet 3/16"
293150008
$0.50
8
Pop Rivet 3/16"
293150088
$0.99
9
Flat Washer 5 mm, Stainless
234052600
$0.77
10
RETAINER CABLE - Call your local BRP dealership
204071498
Unavailable
11
KEEPER - Call your local BRP dealership
204072476
Unavailable
12
Elastic Stop Nut M4
232541600
$1.15
13
Phillips Screw M4 X 16
208641660
$0.90
14
Flat Washer 4 mm
234040600
$0.55
15
SPLIT LOOM 3/8, METER - Call your local BRP dealership
204050326
Unavailable
16
LATCH KIT, 3 LATCHES - Call your local BRP dealership
204071838
Unavailable
17
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
18
LATCH PLATE - Call your local BRP dealership
204070304
Unavailable
19
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
20
LATCH GUIDE - Call your local BRP dealership
204072064
Unavailable
21
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
22
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
23
Lower Console Ass'y, Port Side
204072556
Unavailable
24
Lower Console Ass'y, Starboard
204072434
Unavailable
25
Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership
204050138
Unavailable
26
Lock Washer 1/4”
211200025
$1.29
27
Hex. Screw M6 X 35
207163560
$1.49
28
Flat Washer M6, Stainless
234062600
$0.77
29
Hex. Elastic Stop Nut M6
232561600
$1.15
30
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
31
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
32
Not Available As Spare Parts
XXX
Unavailable
33
Not Available As Spare Parts
XXX
Unavailable
34
Upper Console Ass'y, Starboard
204072558
Unavailable
35
Upper Console Ass'y, Port Side
204072559
Unavailable
36
Elastic Stop Nut 5/16-18
204100100
Unavailable
37
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
38
HEX. SCREW M6 X 45 - Call your local BRP dealership
207064560
Unavailable
39
Flat Washer M6, Stainless
234062600
$0.77
40
Hex. Elastic Stop Nut M6
232561600
$1.15
41
ALUMINUM SPACER - Call your local BRP dealership
204071928
Unavailable
42
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
43
Trim, White, 7/16”, Meter
204070446
Unavailable
44
Trim, White, 7/16”, Meter
204070446
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
46
HEX. SCREW M6 X 45 - Call your local BRP dealership
207064560
Unavailable
47
Flat Washer M6, Stainless
234062600
$0.77
48
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
49
Windshield This part replaces 204620079.
291003861
$380.99
50
HINGE ASS'Y - Call your local BRP dealership
204620281
Unavailable
51
Pop Rivet 3/16"
293150039
$1.49
52
RETAINING PLATE - Call your local BRP dealership
204620087
Unavailable
53
DEFLECTOR - Call your local BRP dealership
204073803
$63.99
54
REAR STOPPER - Call your local BRP dealership
204620106
Unavailable
55
LATCH - Call your local BRP dealership
204620070
Unavailable
56
FOAM, WINDSCREEN - Call your local BRP dealership
204620080
Unavailable
57
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
58
Hex. Elastic Nut M5 | X
232551600
$1.15
59
NUT HOUSING - Call your local BRP dealership
204073798
Unavailable
60
Hex. Elastic Nut M5 | X
232551600
$1.15
61
RUBBER STOPPER - Call your local BRP dealership
204620295
Unavailable
62
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
63
Flat Washer 5 mm, Stainless
234052600
$0.77
64
RETAINER CABLE - Call your local BRP dealership
204620194
Unavailable
65
ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership
204620126
Unavailable
66
Glue Tube, Loctite 454, 20 G
413708300
$60.99
67
CABLE ATTACHEMENT - Call your local BRP dealership
204620127
Unavailable
68
HINGE SPRING - Call your local BRP dealership
204620018
Unavailable
69
Hex. Screw M5 X 20
207152060
$1.47
70
Flat Washer 5 mm, Stainless
234052600
$0.77
71
Loctite 243, 10 ml
293800060
$21.49
72
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
73
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
74
Flat Washer M6, Stainless
234062600
$0.77
75
WINDSCREEN INSERT - Call your local BRP dealership
204620280
Unavailable
76
STORAGE TRAY - Call your local BRP dealership
269501940
$53.99
77
ICEBOX FOAM - Call your local BRP dealership
204630008
Unavailable
78
Socket Wrench
529035731
Unavailable
79
Not Available As Spare Part - Friction Washer
Unavailable
