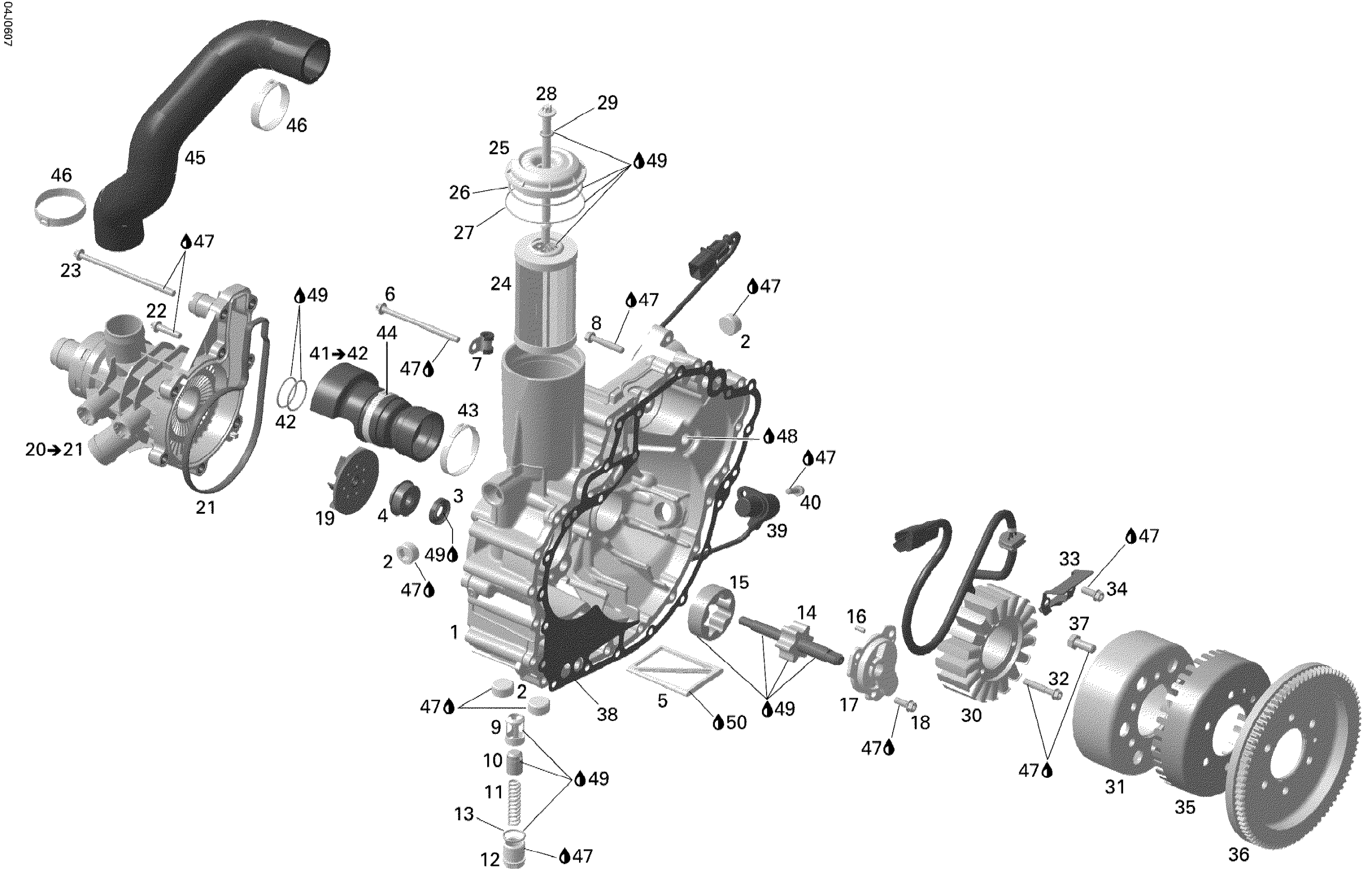

Sea-doo Speedster 200 Twin 4-TEC NA, Edition 2, 2006 PTO Cover And Magneto Diagram

#

Description
Price

1

TIMING/DRIVE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 4 This part replaces 420812625.

420481447

Unavailable

2

Plug Screw M20 X 1.5

420641317

$12.15

3

Oil Seal

420650315

$11.04

4

Rotary Seal

420650371

$41.01

5

Oil Sieve

420956950

$14.33

6

Torx Flange Screw M6 X 85

420641228

$7.01

7

Clamp

420853414

$17.13

8

Torx Flange Screw M6 X 35

420440274

$0.96

9

Valve Seat Sleeve

420256606

$27.58

10

Piston Valve

420256638

Unavailable

11

Compression Spring

420939410

Unavailable

12

Plug Screw M20 X 1.5

420641052

$35.79

13

O-Ring

420230890

$5.06

14

Pump Shaft Ass'y

420837472

$52.21

15

Oil Pump Rotor 16 mm

420956675

$33.55

16

Needle Pin

420929070

$1.79

17

Oil Pump Cover

420811591

$34.30

18

Torx Flange Screw M6 X 16

420641048

$2.82

19

Impeller

420922801

$16.39

20

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$276.84

21

Water Pump Housing Gasket | Included in gasket kit

420950840

$13.07

22

Torx Flange Screw M6 X 25

420641238

$3.07

23

Torx Flange Screw M6 X 105

420641338

$7.01

24

Oil Filter

420956741

$12.79

25

Oil Filter Cover

420610329

$31.31

26

O-Ring

420230923

$2.97

27

O-Ring

420850500

$3.01

28

Oil Filter Screw Kit

295501207

$37.28

29

O-Ring

420950860

$3.67

30

Stator Plate This part replaces 420889721.

420889726

$319.49

31

Magneto Flywheel

420296900

$461.99

32

Torx Flange Screw M6 X 35

420440274

$0.96

33

Retaining Plate

420926300

$14.90

34

Torx Flange Screw M6 X 16

420641048

$2.82

35

Trigger Wheel

420966851

$17.13

36

Starter Gear, 86 Teeth

420835163

$276.84

37

Hex Screw

295501162

$13.16

38

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

39

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

40

Torx Flange Screw M6 X 16

420641048

$2.82

41

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$131.31

42

O-Ring

420631612

$4.04

43

Gear Clamp

420851653

$7.01

44

Gear Clamp 46.8-50.0MM

420853023

$7.01

45

Formed Hose

420922822

$61.16

46

Oetiker Clamp

420851687

$10.82

47

Loctite 243, 10 ml

293800060

$21.49

48

Dow Corning 111, 150 g

413707000

$59.99

49

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

50

Loctite 5910, 300 ml

293800081

$57.99
