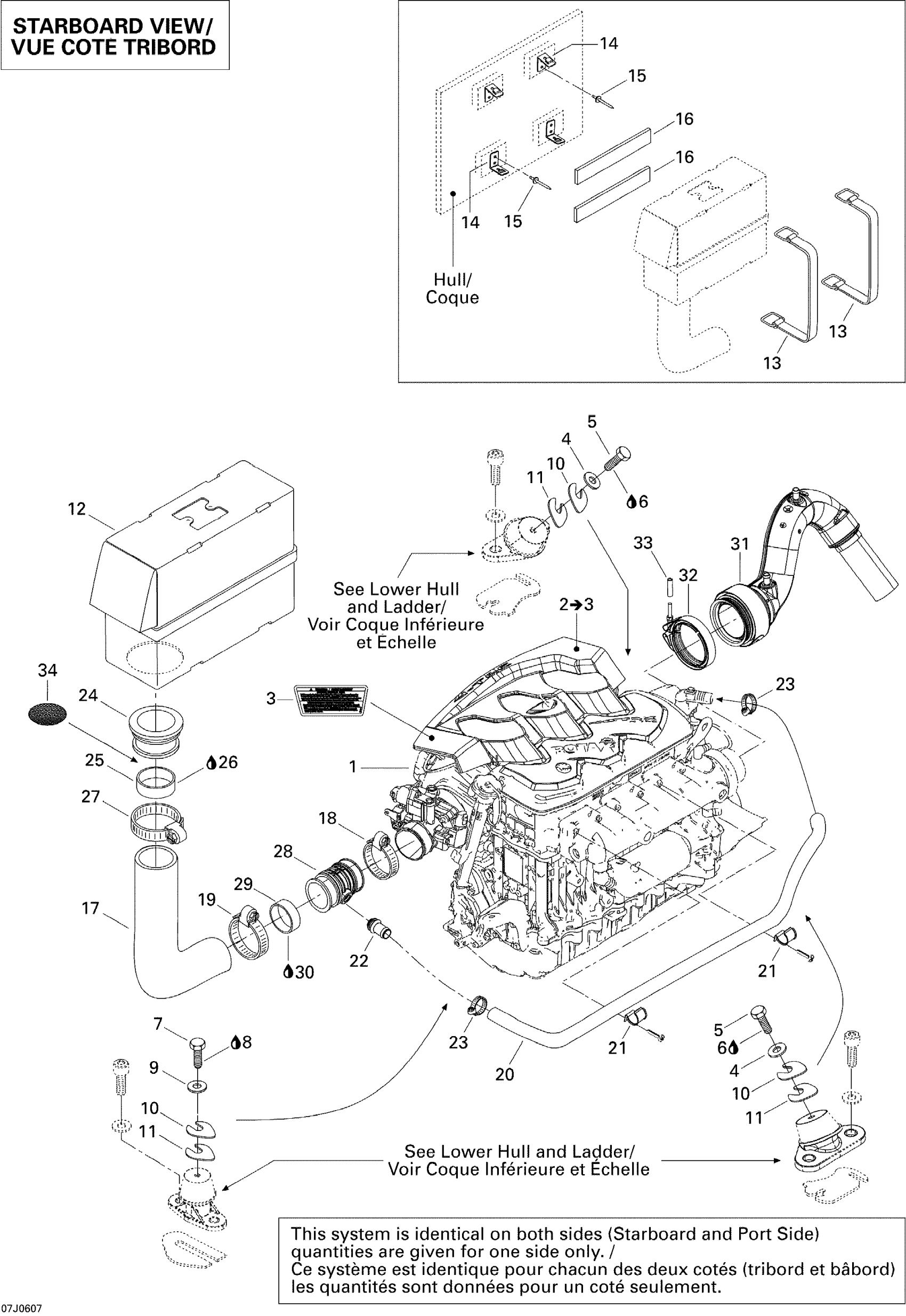

Sea-doo Speedster 200 Twin 4-TEC NA, Edition 2, 2006 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 4 Strokes, 1503 NA

270000639

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

Flat Washer 8 mm, Stainless

234082600

$2.43

5

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

8

Loctite 243, 10 ml

293800060

$21.49

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

11

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

12

Air Silencer Ass'y

204250258

Unavailable

13

Retainer Strap

293850097

$11.64

14

Strap Clip 90°

204060017

Unavailable

15

Pop Rivet 3/16"

293150088

$0.99

16

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

17

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

18

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

19

Tridon Clamp

293650179

$11.49

20

Formed Hose

270000949

$47.99

21

Retainer

275500664

$14.75

22

Breather Valve

273000234

$14.49

23

Tridon Gear Clamp

293650051

$4.19

24

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

25

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

26

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

27

Tridon Clamp

293650179

$11.49

28

Adaptor Hose, Engine

204250276

Unavailable

29

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

30

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

31

EXHAUST PIPE - Call your local BRP dealership

274001030

Unavailable

32

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

33

Polyurethane Hose 10000Mm Long

219704410

$56.99

34

Intake Screen

204250395

$25.99
