- Speedster 200 Twin 4-TEC NA, Edition 1, 2006
10- Electrical System

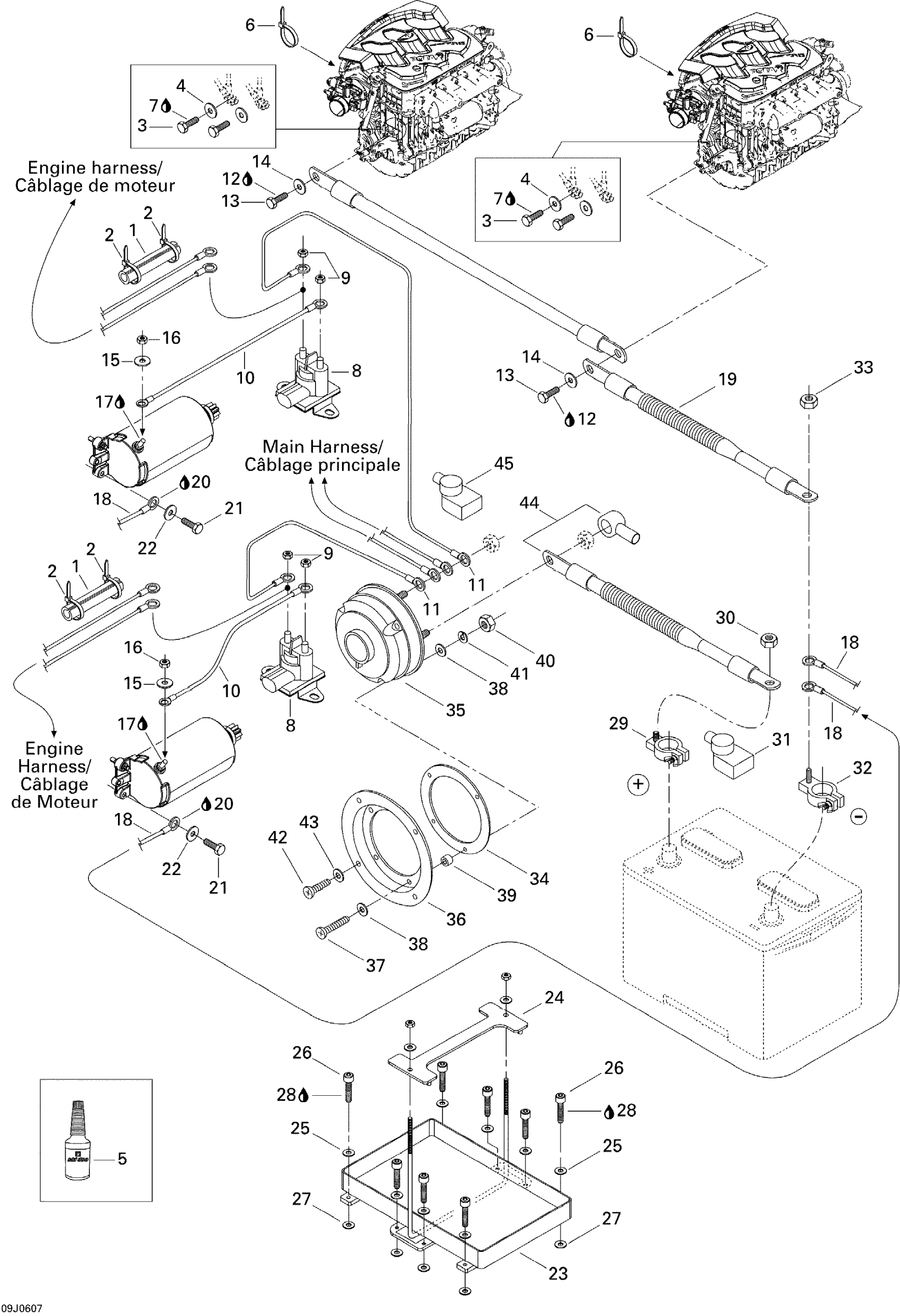

Sea-doo Speedster 200 Twin 4-TEC NA, Edition 1, 2006 10- Electrical System Diagram
#
1
SLIT CONDUIT - Call your local BRP dealership
204471077
Unavailable
2
Tie Wrap 142 mm
293750002
$1.25
3
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
4
Stainless Flat Washer M6
234061600
$0.33
5
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
6
Tie-Rap 180 mm
414115200
$0.11
7
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
8
Starter Relay
278003012
$42.49
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
Red Cable
204470852
Unavailable
10
RED CABLE - Call your local BRP dealership
204470798
Unavailable
11
RED CABLE - Call your local BRP dealership
204470853
Unavailable
11
RED CABLE - Call your local BRP dealership | Starboard
204470838
Unavailable
12
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
13
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
14
Flat Washer M6, Stainless
234062600
$0.77
15
Stainless Flat Washer M6
234061600
$0.33
16
Hex. Elastic Stop Nut M6
232561600
$1.15
17
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
18
GROUND CABLE, PORT SIDE - Call your local BRP dealership
204470854
Unavailable
18
GROUND CABLE, STARBOARD - Call your local BRP dealership
204470840
Unavailable
19
GROUND CABLE - Call your local BRP dealership
204470839
Unavailable
20
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
21
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
22
Stainless Flat Washer M6
234061600
$0.33
23
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
24
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
25
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
26
Socket Head Screw M6 X 25
205062560
$1.69
27
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
28
Loctite 243, 10 ml
293800060
$21.49
29
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
30
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
31
RED BOOT - Call your local BRP dealership
204470269
Unavailable
32
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
33
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
34
SWITCH ADAPTOR - Call your local BRP dealership
204470813
Unavailable
35
BATTERY SWITCH - Call your local BRP dealership
204470814
Unavailable
36
SWITCH SUPPORT - Call your local BRP dealership
204470259
Unavailable
37
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership
205455060
Unavailable
38
Flat Washer M5, Stainless
234051600
$0.77
39
NYLON SPACER - Call your local BRP dealership
204470330
Unavailable
40
Hex. Nut M5
232051600
$1.15
41
Helical Lock Washer M5
234151601
$1.15
42
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
43
Flat Washer 4 mm, Stainless
234041600
$1.15
44
POSITIVE SWITCH CABLE - Call your local BRP dealership
204470250
Unavailable
45
RED BOOT - Call your local BRP dealership
204470269
Unavailable
