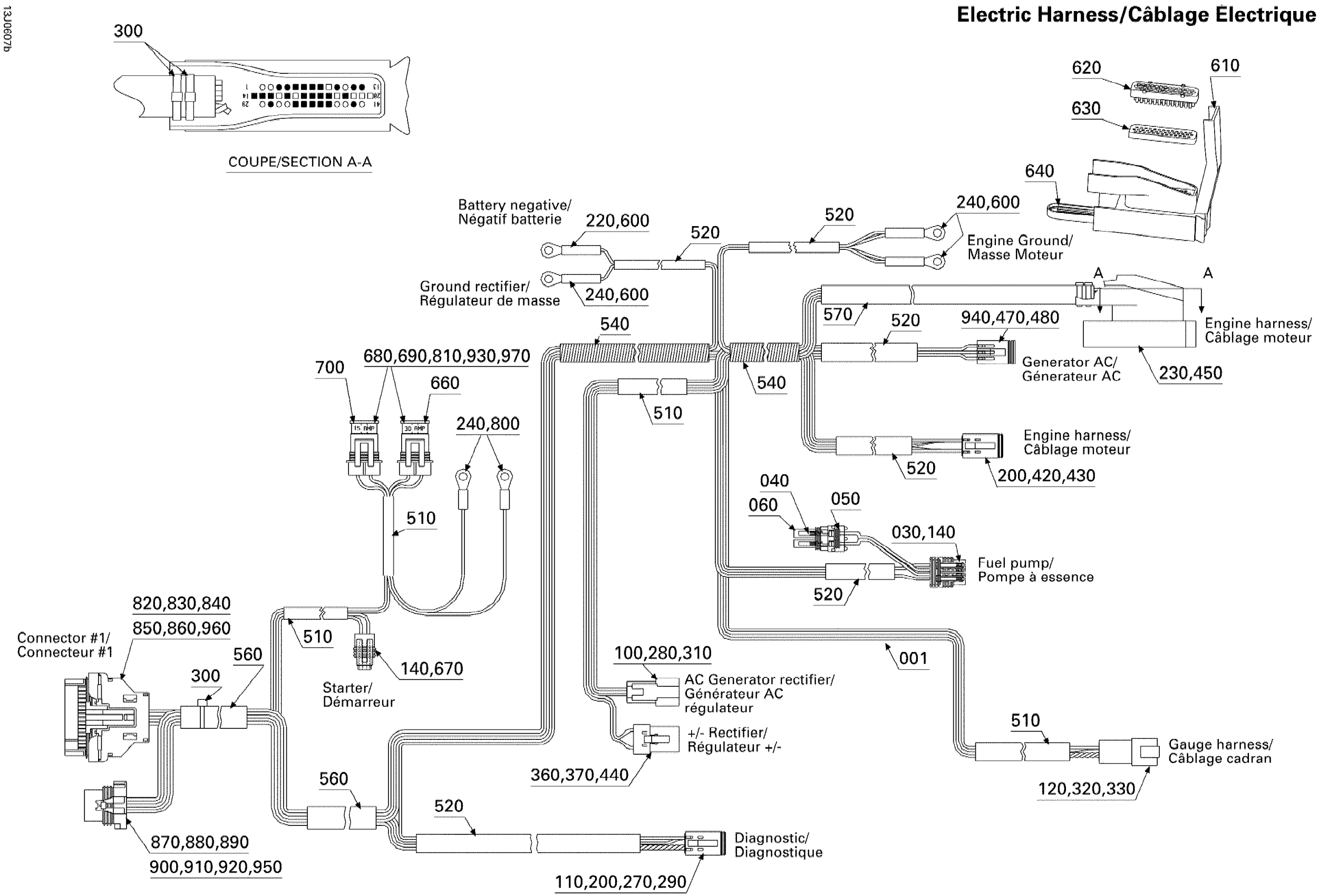

Sea-doo Speedster 200 Twin 4-TEC NA, Edition 1, 2006 Electrical Harness Diagram

#

Description
Price

001

Engine Harness | Starboard

204470811

Unavailable

030

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

040

Female Terminal

278000223

$2.93

050

Wire Seal

278000218

$4.00

060

Male Connector, 2 Circuits

278000220

$12.66

100

Male Terminal

515175823

$4.28

110

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

120

Male Terminal

278000631

$4.00

140

Female Terminal

278001114

$2.93

200

Female Terminal

278000632

$1.94

220

Open Barrel Terminal

278001392

$4.00

230

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

240

Open Barrel Terminal

278001392

$4.00

270

Sealing Cap

293000052

$2.93

280

Male Lock, 3 Circuits

409207600

$2.93

290

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

300

Tie Wrap 142 mm

293750002

$1.01

310

Male Housing

278002378

$12.52

320

Male Connector, 12 Circuits

409015800

Unavailable

330

MALE LOCK, 12 CIRCUITS - Call your local BRP dealership

409015600

Unavailable

360

Female Terminal Housing, 2 Circuits

278001673

$22.36

370

Female Lock, 2 Circuits

278001671

$3.12

420

Male Connector, 4 Circuits | CE

278000739

$17.13

430

Male Lock, 4 Circuits | CE

278000738

$2.82

440

Female Terminal

515175567

$5.85

450

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

470

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

480

Female Lock

409207200

$4.00

510

Not Available As Spare Part - Friction Washer

Unavailable

520

Not Available As Spare Part - Friction Washer

Unavailable

540

Not Available As Spare Part - Friction Washer

Unavailable

560

Not Available As Spare Part - Friction Washer

Unavailable

570

Not Available As Spare Part - Friction Washer

Unavailable

600

Not Available As Spare Part - Friction Washer

Unavailable

610

Not Available As Spare Part - Friction Washer

Unavailable

620

Not Available As Spare Part - Friction Washer

Unavailable

630

Not Available As Spare Part - Friction Washer

Unavailable

640

Not Available As Spare Part - Friction Washer

Unavailable

660

Fuse, 20 Amperes

409003900

$3.12

670

Male Connector, 2 Circuits

278001113

$14.52

680

Fuse Holder

278001325

$8.31

690

Female Terminal

710000357

$5.85

700

Fuse, 15 Amperes

278000343

$3.12

800

Not Available As Spare Part - Friction Washer

Unavailable

810

Fuse Holder Cap

278001326

$5.85

820

Not Available As Spare Part - Friction Washer

Unavailable

830

SEAL WIRE - Call your local BRP dealership

710000394

Unavailable

840

Not Available As Spare Part - Friction Washer

Unavailable

850

FEMALE HOUSING - Call your local BRP dealership

710000395

Unavailable

860

Female Terminal

515175806

$0.93

870

Not Available As Spare Part - Friction Washer

Unavailable

880

Not Available As Spare Part - Friction Washer

Unavailable

890

Not Available As Spare Part - Friction Washer

Unavailable

900

Wire Seal

278000218

$4.00

910

Not Available As Spare Part - Friction Washer

Unavailable

920

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

930

Cushion

278000805

$3.12

940

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

950

Not Available As Spare Part - Friction Washer

Unavailable

960

Plug

515175812

$1.96

970

Not Available As Spare Part - Friction Washer

Unavailable
