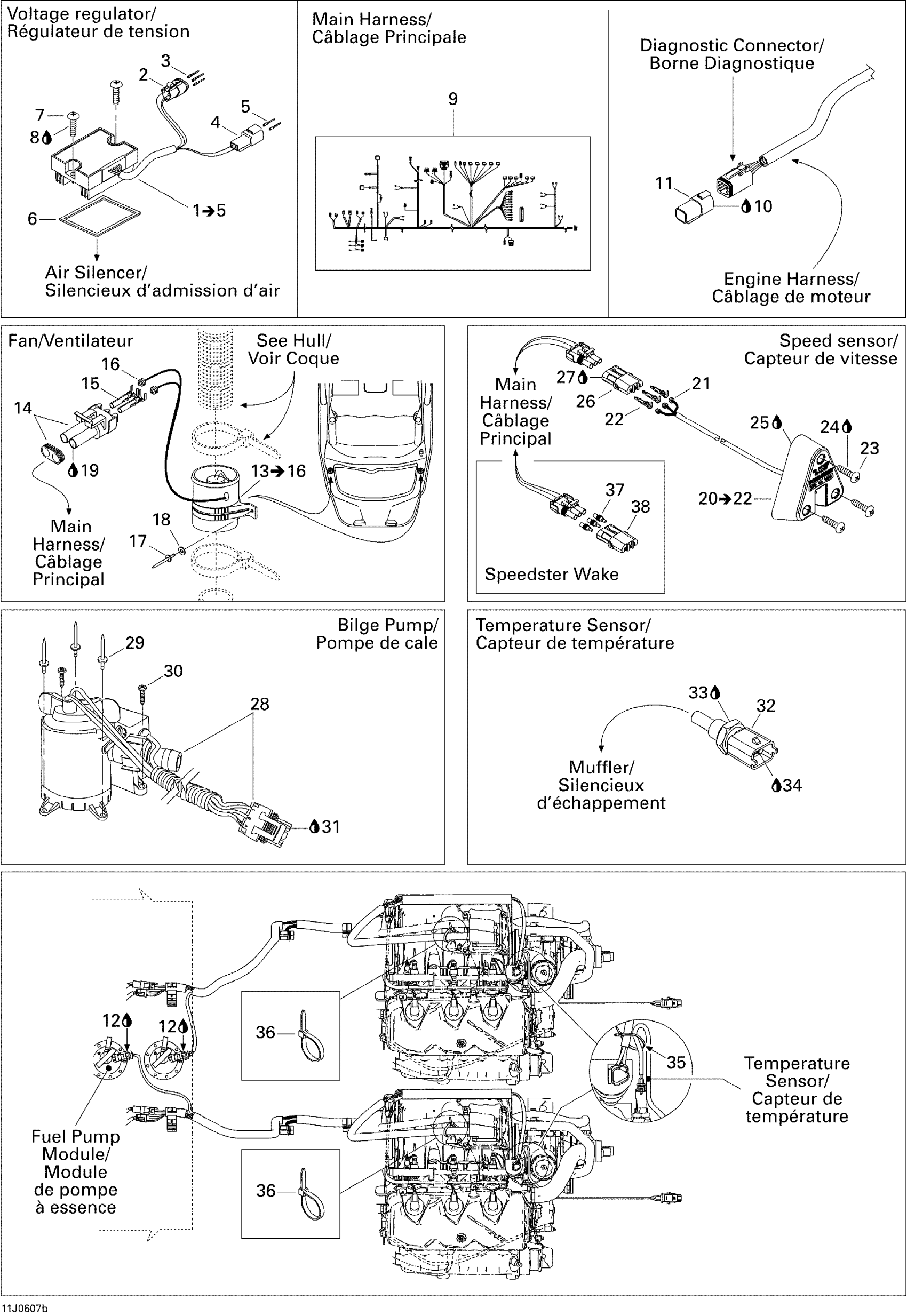

Sea-doo Speedster 200 Twin 4-TEC NA, Edition 1, 2006 Electrical Accessories 2, STD, TOWER Diagram

#

Description
Price

1

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

2

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

3

Female Terminal

278000632

$1.94

4

Male Housing, 2 Circuits

409206900

$8.72

5

Female Terminal

515175567

$5.85

6

SEAL - Call your local BRP dealership

293250123

Unavailable

7

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

8

Loctite 271, 10 ml

293800005

$23.85

9

Main Harness

204471061

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

11

Diagnostic Connector

278002704

$17.88

12

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

13

Fan Ass'y | Includes 44 to 47

204470108

$131.31

14

Male Connector, 2 Circuits

278000220

$12.66

15

Female Terminal

278000223

$2.93

16

Wire Seal

278000218

$4.00

17

Pop Rivet 3/16"

293150008

$0.46

18

Flat Washer 5 mm, Stainless

234052600

$0.73

19

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

20

Speed Sensor

278001993

$164.90

21

Wire Seal

710000048

$5.85

22

Male Terminal | XT Models

278000222

$2.93

23

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

24

Silicone Sealant 51388, 300 ml

296000309

$36.99

25

Silicone Sealant 51388, 300 ml

296000309

$36.99

26

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

27

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

28

Bilge Pump

204471072

Unavailable

29

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

30

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

31

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

32

Temperature Sensor

278002895

$36.54

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

34

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

35

Tie Wrap 142 mm

293750002

$1.01

36

Tie Wrap 142 mm

293750002

$1.01

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable
