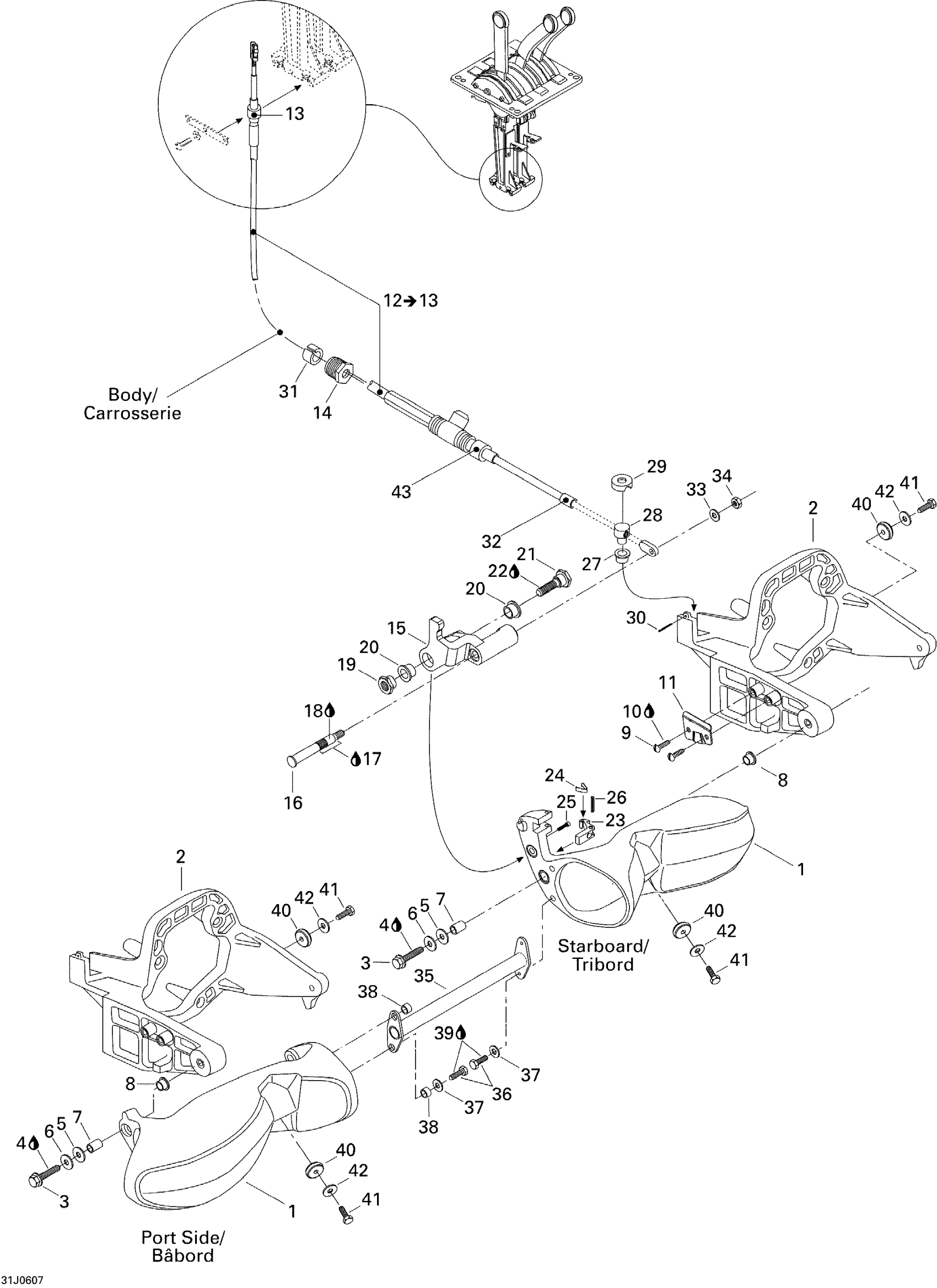

Sea-doo Speedster 200 Twin 4-TEC NA, Edition 1, 2006 05- Reverse Diagram

#

Description
Price

1

NEEDS DESCRIPTION This part replaces 204170217.

423465080

$369.99

1

Reverse Gate, Starboard

268000107

$359.99

2

Reverse Gate Support

204170214

$189.99

3

Hex. Flange Screw 18 X 1.56

204100163

$9.09

4

Loctite 243, 10 ml

293800060

$21.49

5

WASHER, NYLON - Call your local BRP dealership

204100128

Unavailable

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Sleeve

204170177

$33.99

8

Bushing

204130237

$12.11

9

SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership

204100122

Unavailable

10

Loctite 243, 10 ml

293800060

$21.49

11

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

12

Reverse Cable

268000109

$148.49

13

End Piece

277001583

$14.49

14

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

15

NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.

0460979

$224.99

16

PIN - Call your local BRP dealership

204130037

Unavailable

17

Was 293800041 Loctite Primer 7649

219704458

$39.99

18

Sealant Loctite 648

219703000

$45.99

19

SHOULDER NUT - Call your local BRP dealership

204100123

Unavailable

20

BUSHING - Call your local BRP dealership

204130036

Unavailable

21

SHOULDER SCREW - Call your local BRP dealership

204100124

Unavailable

22

Loctite 271, 10 ml

293800005

$26.99

23

HOOK - Call your local BRP dealership

204170220

Unavailable

24

Spring

271000431

$15.49

25

Socket Head Screw

204100127

$3.70

26

Pin

211400009

$1.68

27

Bushing

204130237

$12.11

28

THREADED END PIECE - Call your local BRP dealership

204130038

Unavailable

29

Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.

296000396

Unavailable

30

Cotter Pin

204130040

$2.85

31

RUBBER GROMMET - Call your local BRP dealership

204130041

Unavailable

32

Wiper Rod

277001582

$11.11

33

Flat Washer 5 mm, Stainless

234052600

$0.77

34

NEEDS DESCRIPTION This part replaces 204100034.

0460000

$0.60

35

Reverse Rod

204170180

Unavailable

36

SCREW HEX. M4 X 20 - Call your local BRP dealership

207142060

Unavailable

37

Flat Washer 4 mm, Stainless

234042600

$1.15

38

SPACER BUSHING - Call your local BRP dealership

204170026

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

Anode Zinc

271001813

$18.99

41

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

42

Stainless Flat Washer M6

234061600

$0.33

43

End Piece

277001583

$14.49
