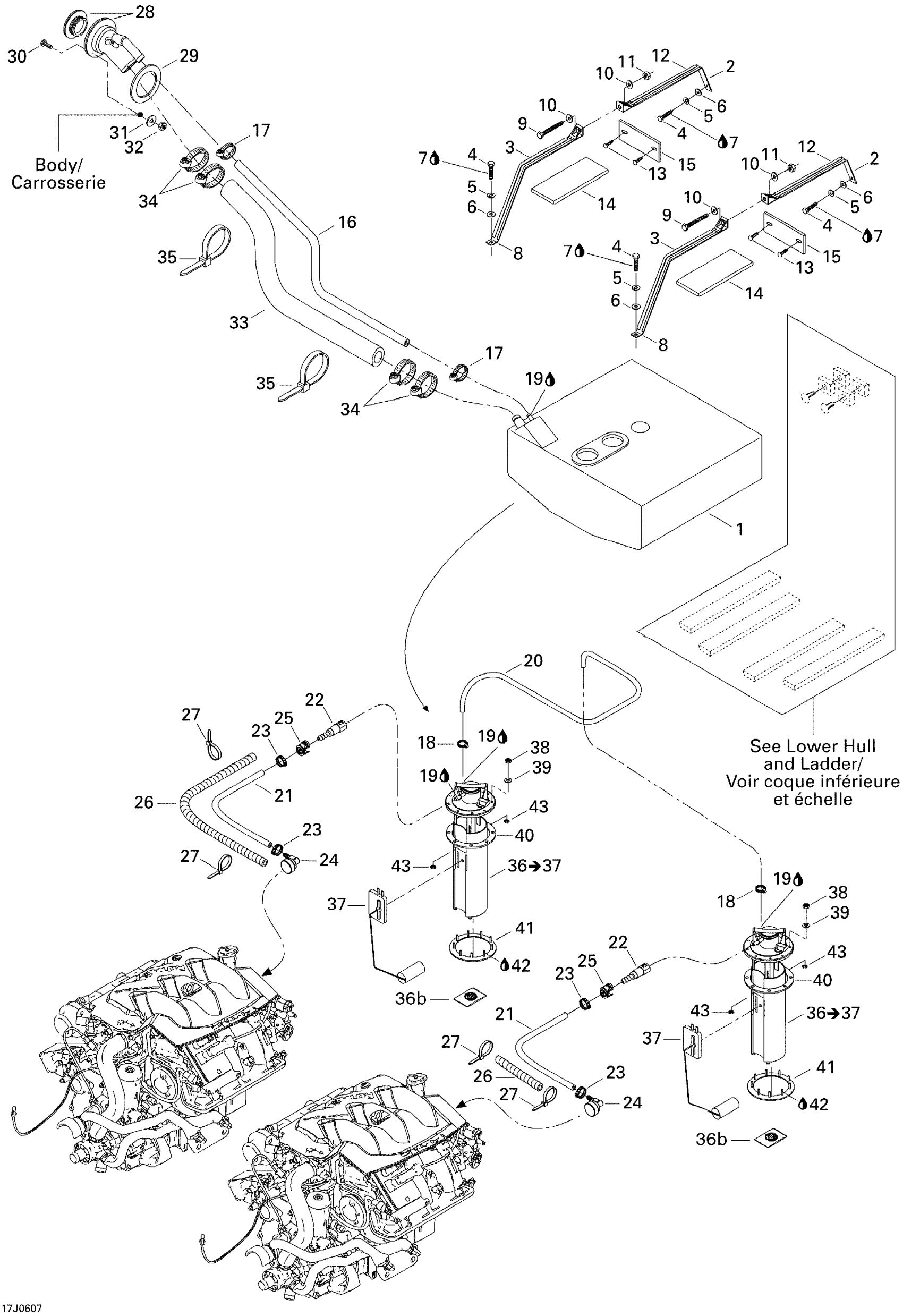

Sea-doo Speedster 200 Twin 4-TEC NA, Edition 1, 2006 Fuel System Diagram

#

Description
Price

1

FUEL TANK 42 GAL - C/U - Call your local BRP dealership This part replaces 204560364.

204560473

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560235

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.49

5

Lock Washer 8 mm, Stainless

234181601

$0.52

6

Flat Washer 8 mm, Stainless

234082600

$2.27

7

Loctite 271, 10 ml

293800005

$23.85

8

FUEL TANK STRAP - Call your local BRP dealership

204560270

Unavailable

9

HEX. SCREW M8 X 80 - Call your local BRP dealership

207188060

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$2.27

11

Hex. Elastic Nut M8

232581600

$1.43

12

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

13

Black, Dart

293730006

$0.93

14

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

15

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

16

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

17

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

18

Tridon Gear Clamp

293650170

$2.00

19

Not Available As Spare Part - Friction Washer

Unavailable

20

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

21

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

22

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

23

Oetiker Clamp

293650011

$2.82

24

Elbow Fitting 90°

293710105

$12.15

25

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

26

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

27

Tie Wrap 142 mm

293750002

$1.01

28

FILLER NECK - Call your local BRP dealership

204560182

Unavailable

29

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

30

Phillips Screw M4 X 35

208643560

Unavailable

31

Flat Washer 4 mm

234040600

$0.52

32

Elastic Stop Nut M4

232541600

$1.06

33

Filler Neck Hose

204560294

Unavailable

34

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

35

Tie-Rap 180 mm

414115200

$0.10

36

FUEL PUMP MODULE ASSY - Call your local BRP dealership | Includes 20 to 20b

204560259

Unavailable

36b

Fuel Filter, Bosch

219700368

$36.54

37

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

38

Elastic Stop Nut 5 mm

232551200

$1.40

39

Flat Washer 5 mm, Stainless

234052400

$2.69

40

Gasket

293250088

$12.57

41

C-Ring, 9 Studs

275500679

$73.10

42

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

43

Circlip 5 mm

293370002

$5.10
