- Speedster 200 Twin 4-TEC NA, Edition 1, 2006
01- Crankshaft And Pistons 1

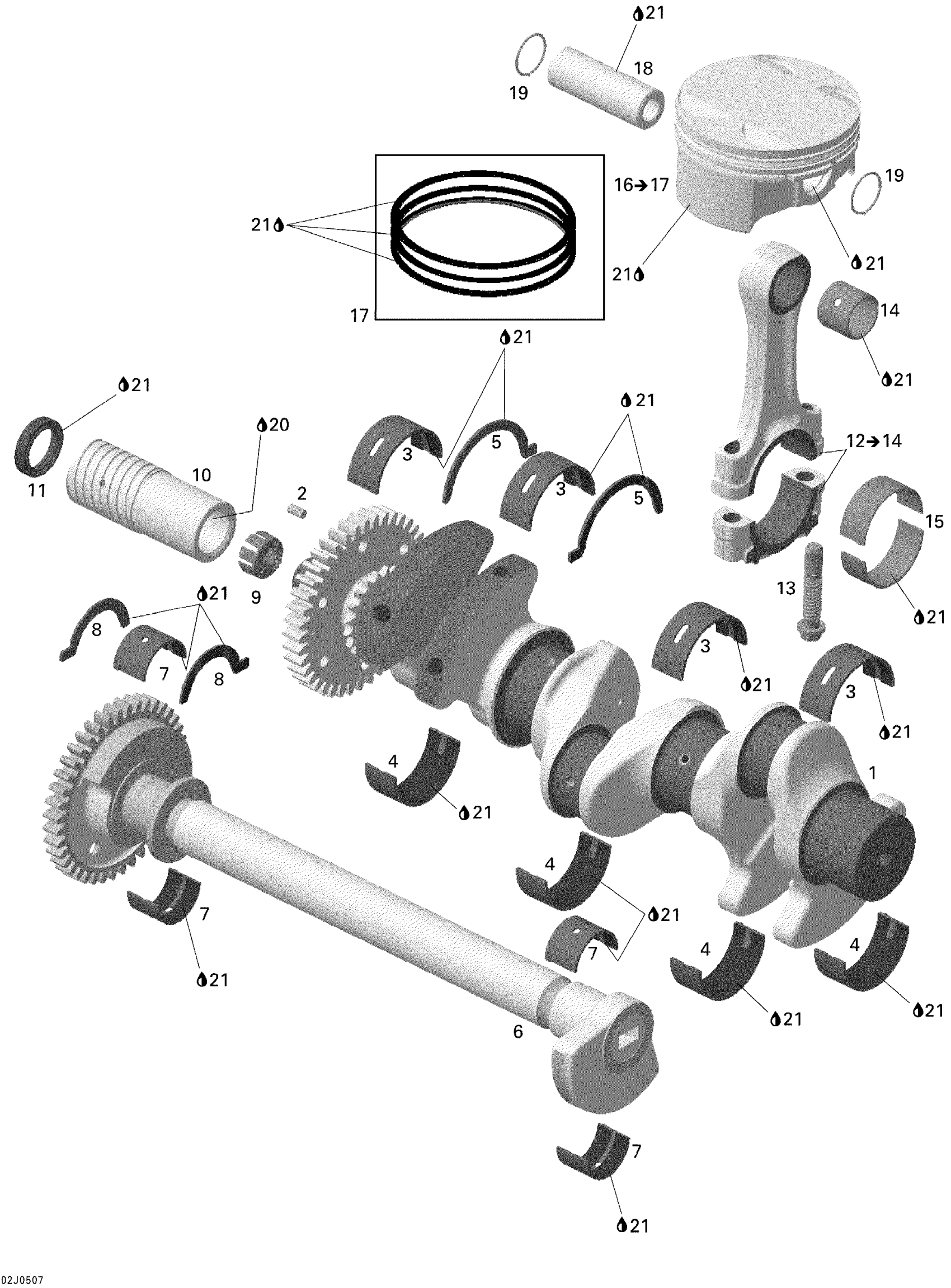

Sea-doo Speedster 200 Twin 4-TEC NA, Edition 1, 2006 01- Crankshaft And Pistons 1 Diagram
#
Description
Price
1
REBUILT - CRANKSHAFT 1503 02 A 05 | Includes 1 to 2 This part replaces 420819078.
421000670
Unavailable
2
Drive Pin 5 X 10
420929650
$1.68
3
Plain Half-Bearing
420933456
$16.34
4
Plain Half-Bearing
420933466
$16.34
5
Half-Ring
420933475
$11.63
6
Balance Shaft Ass'Y This part replaces 420837556.
420837559
$614.49
7
Plain Bearing Half
420933442
$19.99
8
Half-Ring
420933470
$7.41
9
Stop Sleeve
420660280
$14.75
10
Output Sleeve This part replaces 420847952.
420947770
$121.99
11
Sealing Ring
420630551
$14.83
12
Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.
420917516
Unavailable
13
Connecting rod Screw M10 X 1
420640991
$11.63
14
Bearing Sleeve
420933510
$14.22
15
Half-Bearing
420933523
$19.19
16
Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5
420296565
$180.99
16
Piston Ass'y, Oversize, 100.21 mm | Traxter 500 CVT, Includes 4 To 5
420296566
$164.99
17
Piston Set Ring, Standard | Traxter 500 CVT
420890380
$65.99
17
Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT
420890381
$71.49
18
Piston Pin
420216250
$23.99
19
Circlip
420845580
$2.64
20
Sealant Loctite 648
219703000
$45.99
21
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
