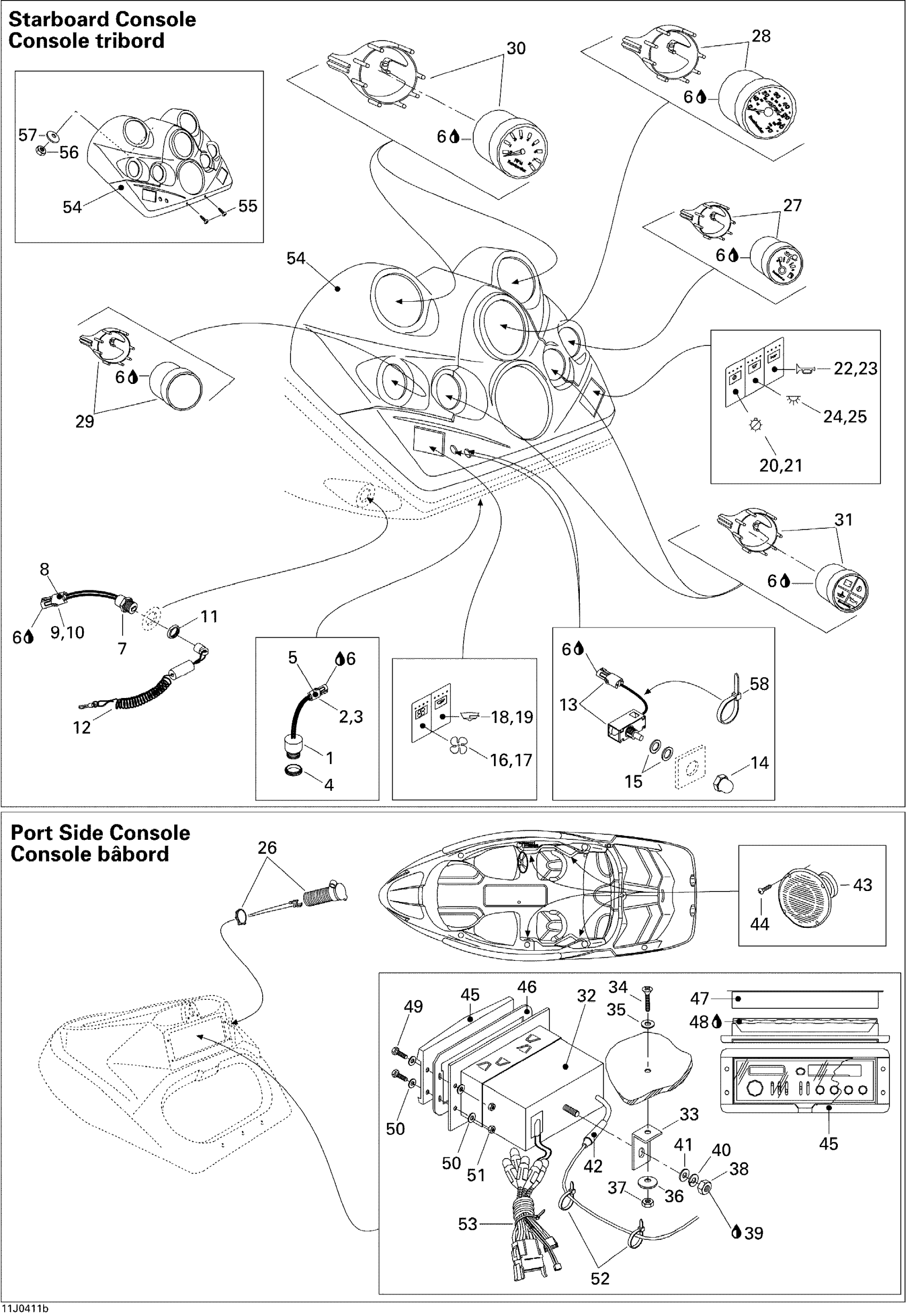

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Electrical Accessories 2 Diagram

#

Description
Price

1

BUZZER - Call your local BRP dealership

278001586

Unavailable

2

Male Terminal | XT Models

278000222

$2.55

3

Wire Seal

278000218

$3.48

4

Buzzer Nut

278000707

Unavailable

5

Female Housing, 2 Circuits

278000217

$7.59

6

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

7

Safety Switch This part replaces 278002325.

278002773

$89.67

8

Male Housing, 3 Circuits

278000273

$7.59

9

Wire Seal

278000218

$3.48

10

Female Terminal

278000223

$2.55

11

Safety Nut (DESS Switch)

278002963

$2.72

12

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

13

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

14

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

15

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

16

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

17

Gasket

204470132

Unavailable

18

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

19

Gasket

204470132

Unavailable

20

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

21

Gasket

204470132

Unavailable

22

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$44.75

23

Gasket

204470132

Unavailable

24

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

25

Gasket

204470132

Unavailable

26

DC Outlet

710001248

$31.17

27

Fuel Gauge

204470775

Unavailable

28

Speed Gauge

204470776

Unavailable

29

Speed Gauge

204470844

Unavailable

30

Tachometer

204470777

Unavailable

31

ENGINE WARNING GAUGE - Call your local BRP dealership

204470778

Unavailable

32

Compact Disk Radio

204470869

Unavailable

33

RADIO SUPPORT - Call your local BRP dealership

204470837

Unavailable

34

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

35

Stainless Flat Washer M6

234061600

$0.25

36

Flat Washer M6, Stainless

234062600

$0.64

37

Hex. Elastic Stop Nut M6

232561600

$0.92

38

Hex. Nut M5

232051600

$0.92

39

Loctite 243, 10 ml

293800060

$20.77

40

Helical Lock Washer M5

234151601

$0.91

41

Flat Washer 5 mm, Stainless

234052600

$0.64

42

Antenna

204470380

Unavailable

43

Speaker

204470378

Unavailable

44

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

45

Radio Cover

204470266

Unavailable

46

RADIO COVER GASKET - Call your local BRP dealership

204470257

Unavailable

47

Radio Splashguard

204470270

Unavailable

48

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

49

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

50

Flat Washer 4 mm

234040600

$0.46

51

Elastic Stop Nut M4

232541600

$0.92

52

Tie Wrap 94 mm | 4X4

293750001

$0.83

53

Tie Wrap 142 mm

293750002

$0.88

54

Fascia Ass'y

204470889

Unavailable

55

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

56

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

57

Flat Washer 8 mm, Stainless

234082600

$1.98

58

Tie Wrap 142 mm

293750002

$0.88
