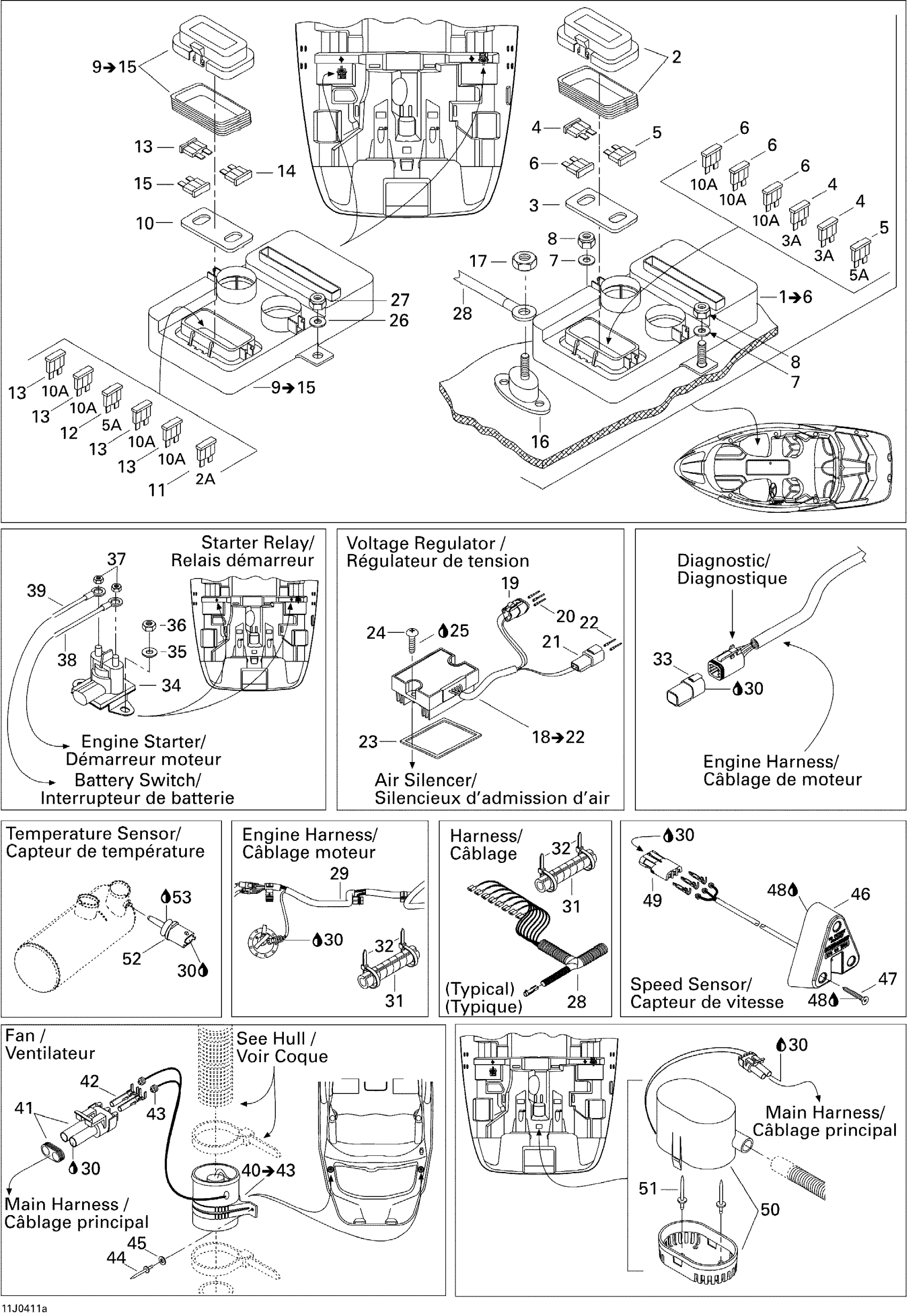

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Electrical Accessories 1 Diagram

#

Description
Price

1

TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America

204471262

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

Unavailable

6

Fuse, 10 Amperes | North America

278001197

Unavailable

7

Flat Washer M6, Stainless

234062600

Unavailable

8

Hex. Elastic Stop Nut M6

232561600

Unavailable

9

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

10

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

11

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

12

Fuse, 5 Amperes | CE

278000344

Unavailable

13

Fuse, 10 Amperes | North America

278001197

Unavailable

14

Fuse, 20 Amperes

409003900

Unavailable

15

Fuse, 30 Amperes

410917200

Unavailable

16

Ground Post

204470715

Unavailable

17

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

18

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

19

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

20

Female Terminal

278000632

Unavailable

21

Mâle Terminal Housing, 2 Circuits

278001674

Unavailable

22

Male Terminal

515175568

Unavailable

23

SEAL - Call your local BRP dealership

293250123

Unavailable

24

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

25

Loctite 271, 10 ml

293800005

Unavailable

26

Flat Washer M6, Stainless

234062600

Unavailable

27

Hex. Elastic Stop Nut M6

232561600

Unavailable

28

Accessory Harness

204470903

Unavailable

29

Engine Harness | Starboard

204470811

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

31

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

32

Tie Wrap 142 mm

293750002

Unavailable

33

Diagnostic Connector

278002704

Unavailable

34

Starter Relay

278003012

Unavailable

35

Flat Washer M6, Stainless

234062600

Unavailable

36

Hex. Elastic Stop Nut M6

232561600

Unavailable

37

Hex. Elastic Stop Nut M6

232561600

Unavailable

38

Red Cable

204470852

Unavailable

39

RED CABLE - Call your local BRP dealership

204470853

Unavailable

39

RED CABLE - Call your local BRP dealership | Starboard

204470838

Unavailable

40

Fan Ass'y | Includes 44 to 47

204470108

Unavailable

41

Male Connector, 2 Circuits

278000220

Unavailable

42

Female Terminal

278000223

Unavailable

43

Wire Seal

278000218

Unavailable

44

Pop Rivet 3/16"

293150008

Unavailable

45

Flat Washer 5 mm, Stainless

234052600

Unavailable

46

Speed Sensor

278001993

Unavailable

47

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

48

Silicone Sealant 51388, 300 ml

296000309

Unavailable

49

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

50

Bilge Pump

204471431

Unavailable

51

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

52

Temperature Sensor

278002895

Unavailable

53

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable
