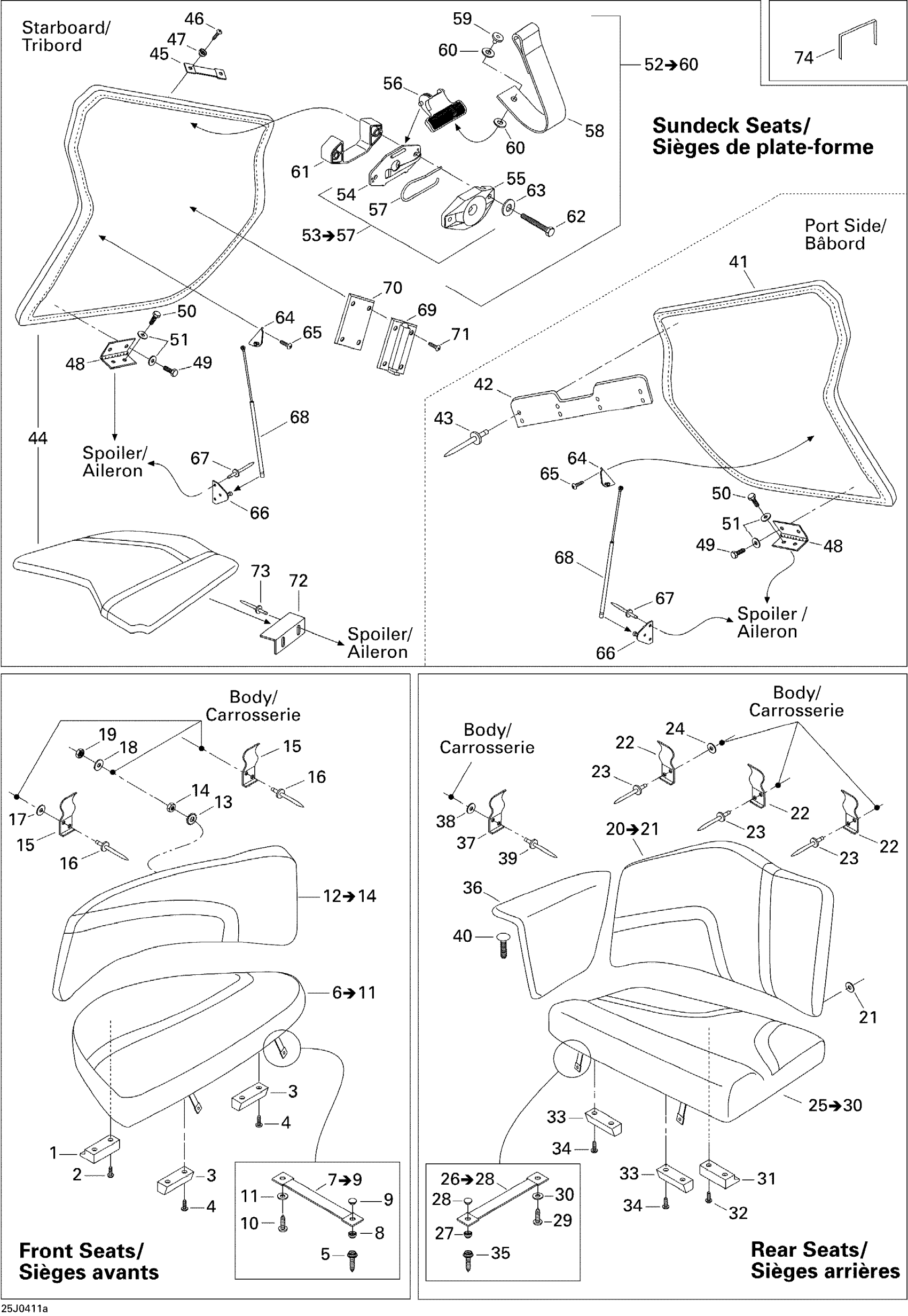

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Seat (Front and Rear) Diagram

#

Description
Price

1

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

2

TAPPING PAN SCREW M14 X 2 - Call your local BRP dealership

204100120

Unavailable

3

LATCH - Call your local BRP dealership

204611805

Unavailable

4

SCREW #8 X 1-1/4? - Call your local BRP dealership

204100081

Unavailable

5

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

6

Front Seat Ass’y, Port Side | INCLUDES 1 TO 6 / RED 5773

204612150

Unavailable

6

Front Seat Ass’y, Port Side | INCLUDES 1 TO 6 / BLUE 5160

204612726

Unavailable

6

Front Seat Ass’y, Starboard | INCLUDES 1 TO 6 / RED 5773

204612153

Unavailable

6

Front Seat Ass’y, Starboard | INCLUDES 1 TO 6 / BLUE 5160

204612731

Unavailable

7

Retaining Strap Ass'y

204612613

Unavailable

8

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

9

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

10

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

11

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

12

Front Seat Backrest Ass’y, Port Side

204612151

Unavailable

12

Front Seat Backrest Ass’y, Port Side

204612729

Unavailable

12

Front Seat Backrest Ass’y, Starboard

204612152

Unavailable

12

Front Seat Backrest Ass’y, Starboard

204612730

Unavailable

13

External Serrated Lock Washer 6 mm

234461608

Unavailable

14

Hex. Jam Nut

204100060

Unavailable

15

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

16

Pop Rivet 3/16"

293150043

Unavailable

17

Flat Washer 5 mm, Stainless

234052400

Unavailable

18

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

19

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

20

Rear Backrest Ass’y, Starboard

204612164

Unavailable

20

Rear Backrest Ass’y, Starboard

204612733

Unavailable

20

Rear Backrest Ass’y, Port Side

204612154

Unavailable

20

Rear Backrest Ass’y, Port Side

204612735

Unavailable

21

Flat Washer M6, Stainless

234062600

Unavailable

22

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

23

Pop Rivet 3/16"

293150043

Unavailable

24

Flat Washer 5 mm, Stainless

234052400

Unavailable

25

Front Seat Ass’y, Port Side | INCLUDES 14 TO 18 / RED 5773

204612753

Unavailable

25

Front Seat Ass’y, Port Side | INCLUDES 14 TO 18 / BLUE 5160

204612758

Unavailable

25

Rear Seat Ass’y, Starboard | INCLUDES 14 TO 18 / RED 5773

204612756

Unavailable

25

Rear Seat Ass’y, Starboard | INCLUDES 14 TO 18 / BLUE 5160

204612759

Unavailable

26

Retaining Strap Ass'y

204612613

Unavailable

27

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

28

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

29

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

30

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

31

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

32

TAPPING PAN SCREW M14 X 2 - Call your local BRP dealership

204100120

Unavailable

33

LATCH - Call your local BRP dealership

204611805

Unavailable

34

SCREW #8 X 1-1/4? - Call your local BRP dealership

204100081

Unavailable

35

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

36

Arm Rest, Starboard

204612158

Unavailable

36

Arm Rest, Port Side

204612159

Unavailable

37

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

38

Flat Washer 5 mm, Stainless

234052400

Unavailable

39

Pop Rivet 3/16"

293150043

Unavailable

40

Dart

293730021

Unavailable

41

Sunpad Door Ass’y, Port Side

204612165

Unavailable

41

Sunpad Door Ass’y, Port Side

204612742

Unavailable

42

Retainer Plate

204612684

Unavailable

43

Pop Rivet 3/16"

293150008

Unavailable

44

Sunpad Door Ass’y, Starboard

204612166

Unavailable

44

Sunpad Door Ass’y, Starboard

204612744

Unavailable

45

Loop

204612685

Unavailable

46

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

47

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

48

SUNDECK HINGE - Call your local BRP dealership

204612769

Unavailable

49

TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership

204100134

Unavailable

50

TAPPING SCREW 1/4-20 X 1/2 - Call your local BRP dealership

204100137

Unavailable

51

Stainless Flat Washer M6

234061600

Unavailable

52

Sundeck Latch Ass'y | Includes 20 to 28 This part replaces 204612768.

204613506

Unavailable

53

Latch Ass’y | Includes 36 to 40

204070577

Unavailable

54

Latch Ass'y

269700109

Unavailable

55

Latch Ass'y

269700109

Unavailable

56

Latch Ass'y

269700109

Unavailable

57

Latch Spring

269700017

Unavailable

58

Strap

204612642

Unavailable

59

Pop Rivet 3/16"

293150039

Unavailable

60

Flat Washer 5 mm, Stainless

234052600

Unavailable

61

SHIM - Call your local BRP dealership

269700015

Unavailable

62

HEX. BOLT TAPPING - Call your local BRP dealership

204100141

Unavailable

63

Stainless Flat Washer M6

234061600

Unavailable

64

Shock Bracket

204073074

Unavailable

65

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

66

Shock Bracket

204071673

Unavailable

67

Pop Rivet 3/16"

293150039

Unavailable

68

GAS SHOCK - Call your local BRP dealership

204071874

Unavailable

69

SLIDE LATCH - Call your local BRP dealership

204612641

Unavailable

70

LATCH SHIM - Call your local BRP dealership

204612664

Unavailable

71

TAPPING SCREW - Call your local BRP dealership

204100082

Unavailable

72

KEEPER - Call your local BRP dealership

204070060

Unavailable

73

Pop Rivet 3/16"

293150039

Unavailable

74

Not Available As Spare Part - Friction Washer

Unavailable
