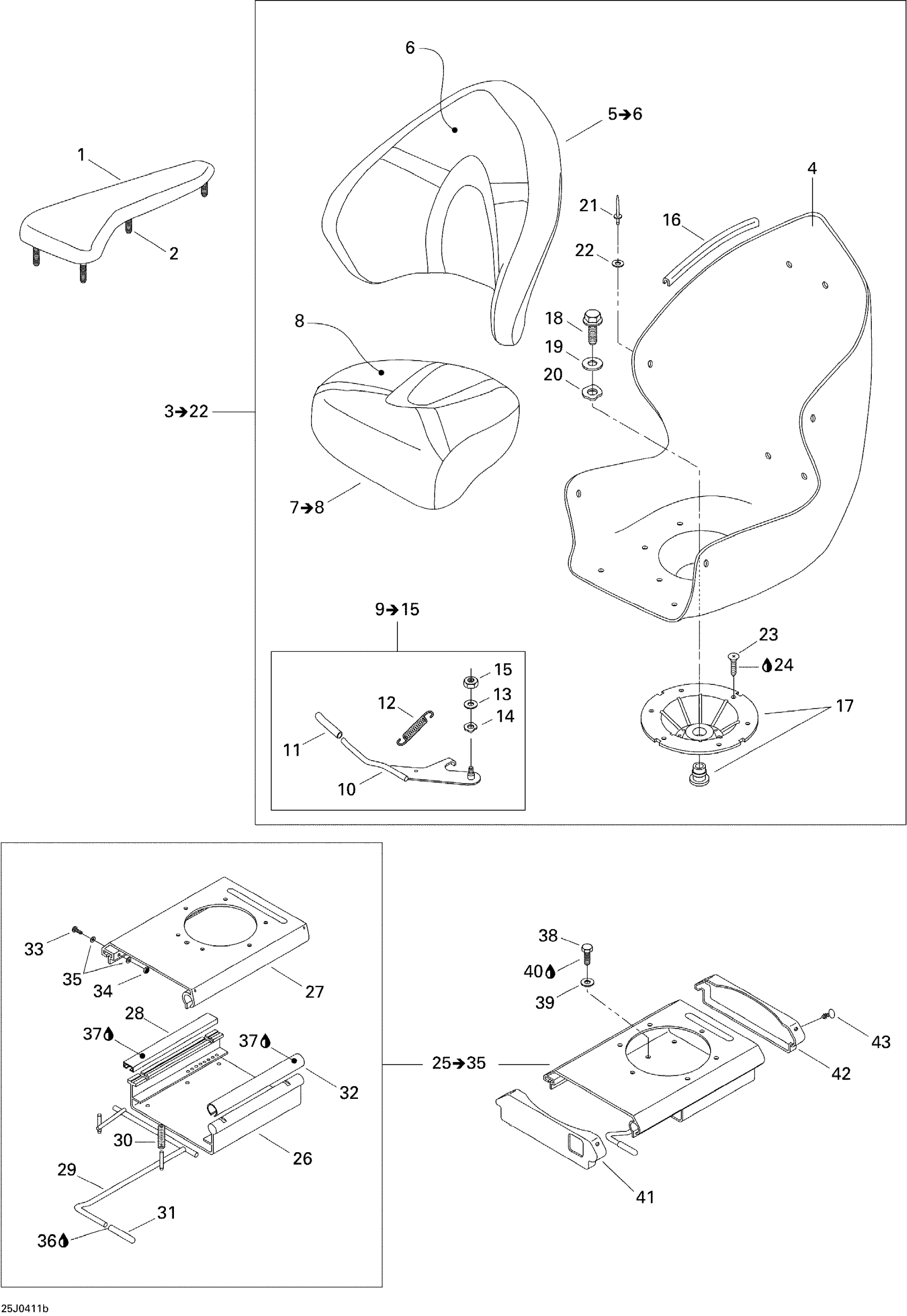

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Seat (Driver and Passenger) Diagram

#

Description
Price

1

Elbow Rest Ass’y, Starboard

204612160

Unavailable

1

Elbow Rest Ass’y, Port Side

204612161

Unavailable

2

Dart

293730021

$7.79

3

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Seat Base

204611146

Unavailable

5

Backrest Cushion | RED 5773

204612709

Unavailable

5

Backrest Cushion | BLUE 5160

204612764

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Seat Cushion | INCLUDES 4 TO 5 / RED 5773

204612710

Unavailable

7

Seat Cushion | INCLUDES 4 TO 5 / BLUE 5160

204612765

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Lever Arm Ass’y

204610523

Unavailable

10

Lever Arm

204610524

Unavailable

11

Handle

204610348

Unavailable

12

SPRING - Call your local BRP dealership

204610349

Unavailable

13

Stainless Flat Washer M6

234061600

$0.33

14

Washer

211200059

Unavailable

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

17

SWIVEL PLATE - Call your local BRP dealership

204610513

Unavailable

18

SCREW-SHOULDER - Call your local BRP dealership

211000172

Unavailable

19

FLAT WASHER - Call your local BRP dealership

211200058

Unavailable

20

WASHER - Call your local BRP dealership

293200056

Unavailable

21

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

22

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

23

PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

208561660

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Lower Part

269500636

Unavailable

27

Upper Part

269500637

Unavailable

28

Rectangular Bushing

269500638

Unavailable

29

Rod Ass'y

269500639

Unavailable

30

Spring

269500640

Unavailable

31

Handle

204610348

Unavailable

32

Circle Bushing

269500642

Unavailable

33

Hex. Screw M6 X 50

207065060

$2.22

34

Hex. Elastic Stop Nut M6

232561600

$1.15

35

Stainless Flat Washer M6

234061600

$0.33

36

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

37

Synthetic Grease, 400 G

293550010

Unavailable

38

Hex. Screw M6 X 35

207163560

$1.49

39

Flat Washer M6, Stainless

234062600

$0.77

40

Loctite 243, 10 ml

293800060

$21.49

41

Front Protector

204610375

Unavailable

42

Rear Protector

204610376

Unavailable

43

Black, Dart

293730006

$0.99
