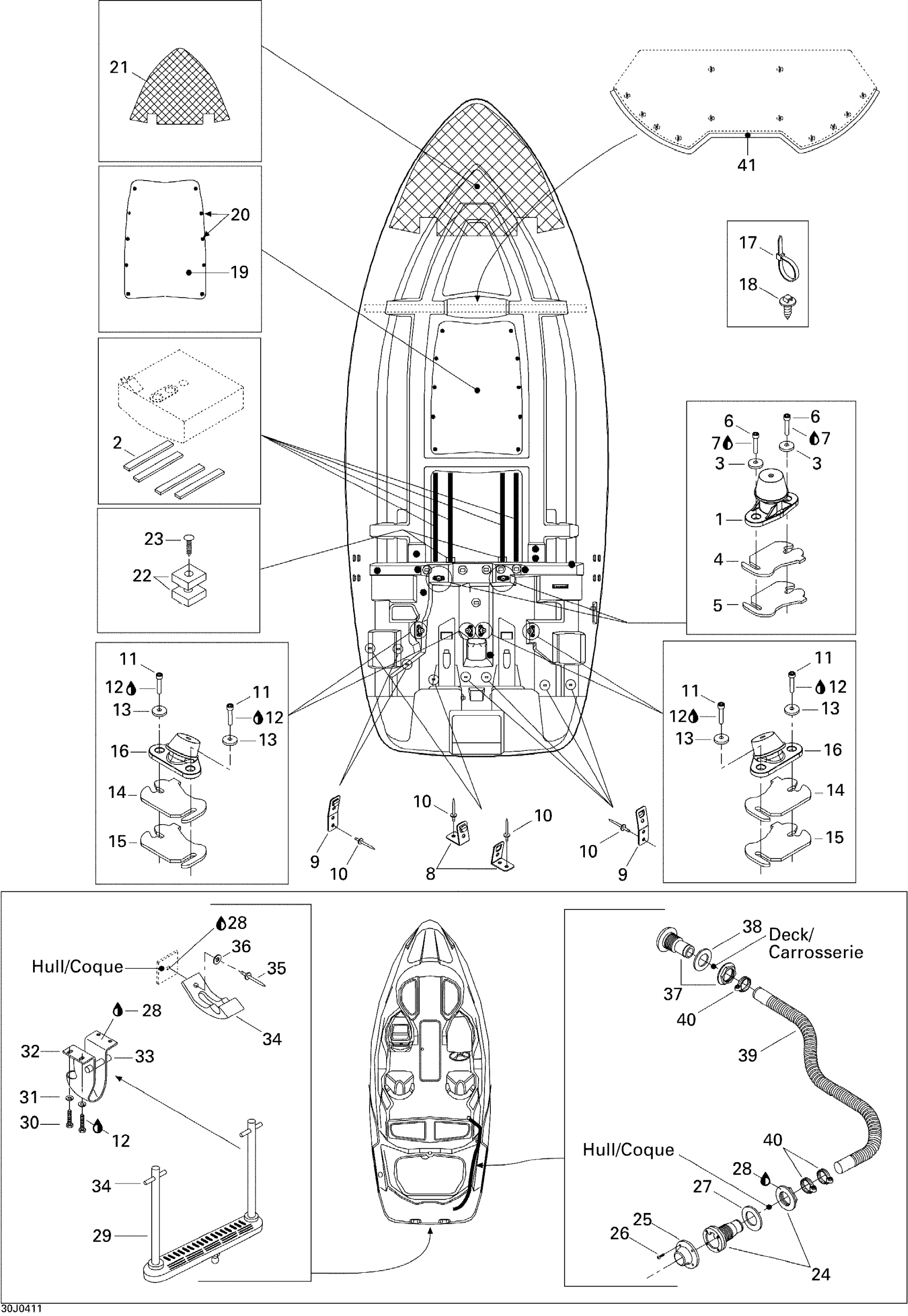

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Lower Hull and Ladder Diagram

#

Description
Price

1

Engine Support Ass'y

270001096

Unavailable

2

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

3

Cone Washer

250200018

Unavailable

4

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

5

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

Unavailable

6

Socket Head Screw M8 X 45

205084560

Unavailable

7

Loctite 243, 10 ml

293800060

Unavailable

8

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

9

Strap Clip 90°

204060017

Unavailable

10

Avdel Rivet 3/16"

293150037

Unavailable

11

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

12

Loctite 243, 10 ml

293800060

Unavailable

13

Cone Washer

250200018

Unavailable

14

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

15

Shim 1.3 mm

270000762

Unavailable

16

Engine Support Ass'y

270001081

Unavailable

17

Tie Wrap 368 mm

293750008

Unavailable

17

Tie-Rap 180 mm

414115200

Unavailable

18

Mount Dart

293730040

Unavailable

19

Storage Liner

204060804

Unavailable

20

Black, Dart

293730006

Unavailable

21

Storage Carpet

204060856

Unavailable

22

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

23

Black Dart

293730014

Unavailable

24

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

25

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

26

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

27

GASKET - Call your local BRP dealership

292800106

Unavailable

28

Silicone Sealant 51388, 300 ml

296000309

Unavailable

29

LADDER - Call your local BRP dealership

204060187

Unavailable

30

Hex. Screw M6 X 35

207163560

Unavailable

31

Lock Washer Helical M6

234161601

Unavailable

32

U-BRACKET - Call your local BRP dealership

204060141

Unavailable

33

ROLL PIN M8 X 55 - Call your local BRP dealership

211300021

Unavailable

34

Hood Latch

570027100

Unavailable

35

Pop Rivet 3/16"

293150013

Unavailable

36

Flat Washer 5 mm, Stainless

234052600

Unavailable

37

FITTING - Call your local BRP dealership

293710060

Unavailable

38

GASKET - Call your local BRP dealership

292800106

Unavailable

39

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

40

Norma Clamp

293650074

Unavailable

41

TRIM LOCK, METER - Call your local BRP dealership

204130079

Unavailable
