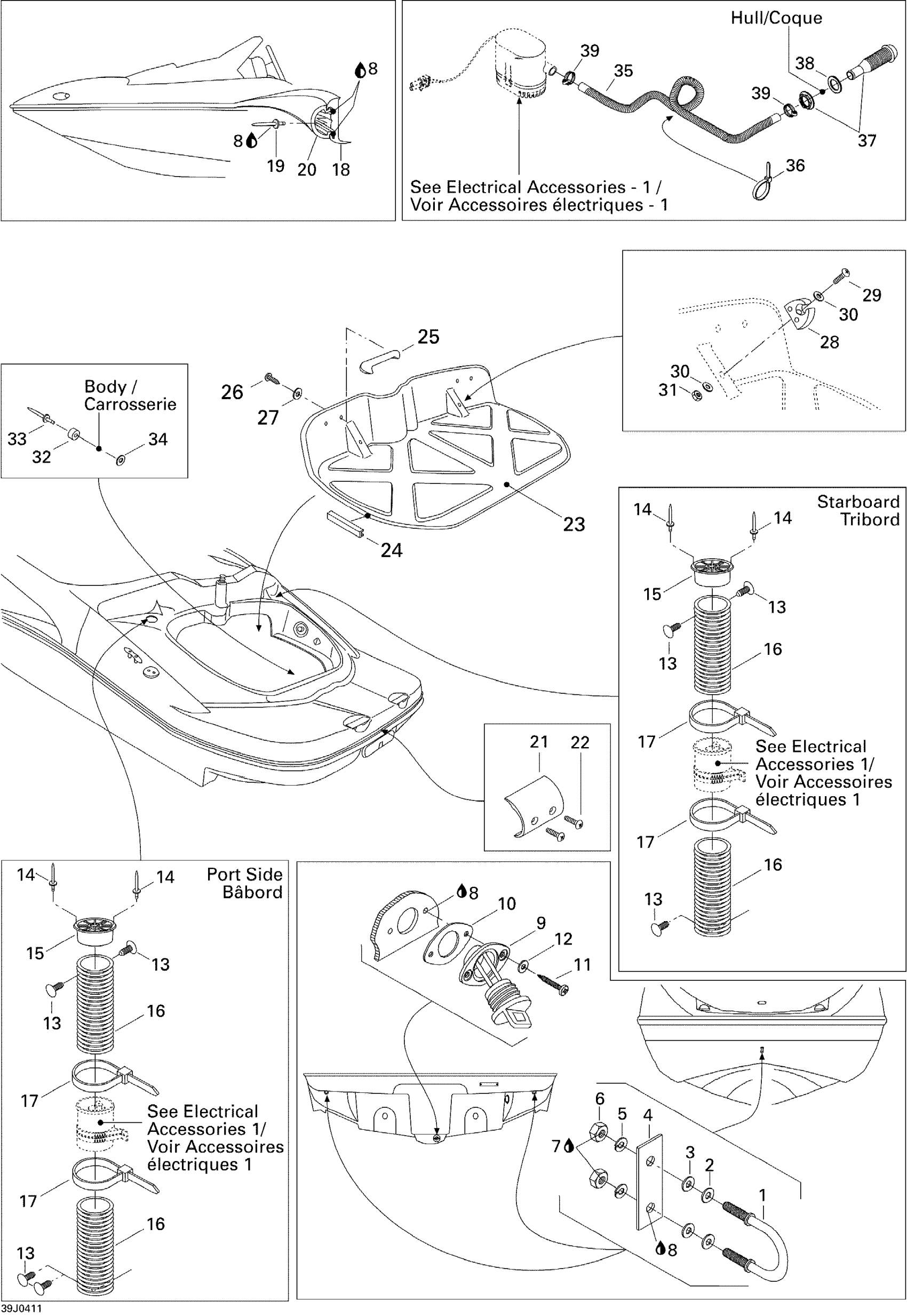

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Hull Diagram
#
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
Unavailable
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
Unavailable
6
Hex. Nut M8
232081600
Unavailable
7
Loctite 271, 10 ml
293800005
Unavailable
8
Silicone Sealant 51388, 300 ml
296000309
Unavailable
9
Drain Plug
292000187
Unavailable
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
Unavailable
13
Black, Dart
293730006
Unavailable
14
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
15
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.
204050803
Unavailable
16
Was 204050122 Vent Hose 4"
219704358
Unavailable
17
Tie Wrap 368 mm
293750008
Unavailable
18
Bumper, Black
204050467
Unavailable
19
Pop Rivet 3/16"
293150013
Unavailable
20
Bumper Trim, Black
204050463
Unavailable
21
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
22
Phillips Tapping Screw M4.2 X 32
209943260
Unavailable
23
ENGINE ACCESS COVER - Call your local BRP dealership
269700130
Unavailable
24
Seal Tray 1000Mm Long
219704368
Unavailable
25
Black, Handle - Call your local BRP dealership
204050159
Unavailable
26
Hex. Flange Screw K40 X 16
241141660
Unavailable
27
Flat Washer 4 mm, Stainless
234042600
Unavailable
28
Pole Support
291000642
Unavailable
29
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
30
Flat Washer 4 mm
234040600
Unavailable
31
Elastic Stop Nut M4
232541600
Unavailable
32
Rubber Stopper
293830043
Unavailable
33
Pop Rivet 3/16"
293150013
Unavailable
34
Flat Washer M5, Stainless
234051600
Unavailable
35
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
36
Tie-Rap 180 mm
414115200
Unavailable
37
Fitting
293710162
Unavailable
38
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
39
Tridon Clamp
293650016
Unavailable
