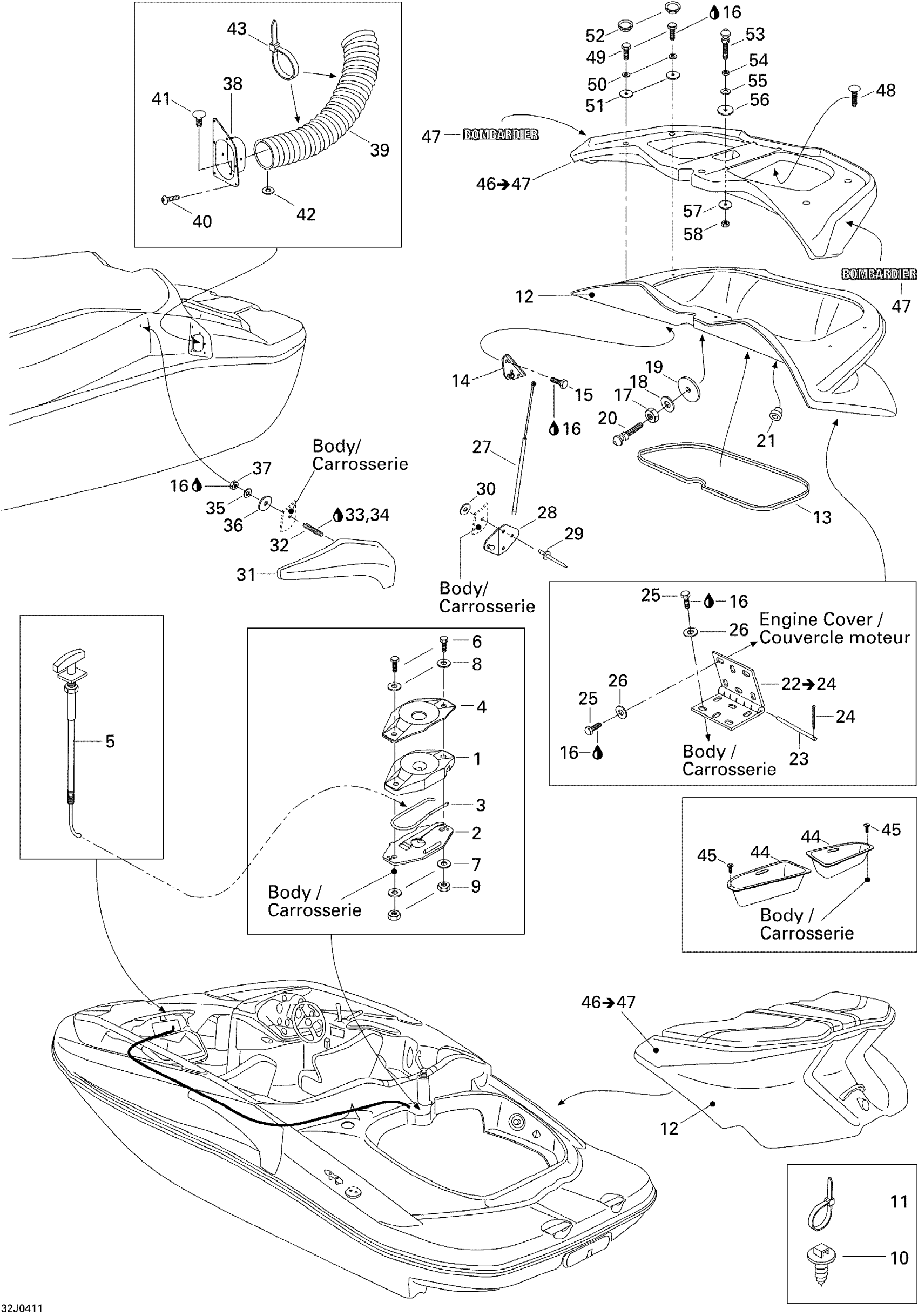

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Engine Compartment Diagram

#

Description
Price

1

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

2

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

5

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

6

Hex. Screw M6 X 35

207163560

$1.17

7

Flat Washer M6, Stainless

234062600

$0.64

8

Stainless Flat Washer M6

234061600

$0.25

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

Mount Dart

293730040

$0.86

11

Tie-Rap 180 mm

414115200

$0.09

12

Engine Cover

204071659

Unavailable

13

D-SEAL RUBBER - Call your local BRP dealership

204130083

Unavailable

14

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

15

Hex. Screw M4 X 16 | Europe

207141660

$1.22

16

Loctite 243, 10 ml

293800060

$20.77

17

Hex. Jam Nut M10

232100600

$1.85

18

Flat Washer 10 mm, Stainless

234002600

$1.85

19

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

20

Latch Stud

204100065

Unavailable

21

GROMMET - Call your local BRP dealership

293720017

Unavailable

22

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

23

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

24

Cotter Pin M2.5 X 12

204070205

Unavailable

25

Hex. Screw M6 X 25

207162560

$1.22

26

Stainless Flat Washer M6

234061600

$0.25

27

GAS SHOCK - Call your local BRP dealership | Port Side

204071964

Unavailable

27

GAS SHOCK - Call your local BRP dealership

204071959

Unavailable

28

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

29

Pop Rivet 3/16"

293150043

$1.61

30

Flat Washer M5, Stainless

234051600

$0.64

31

Vent Cover, Port Side | Port Side

204072039

Unavailable

31

Vent Cover, Starboard | Starboard

204072040

Unavailable

32

Set Screw 1/4-20

204100142

Unavailable

33

Was 293800041 Loctite Primer 7649

219704458

$41.99

34

Loctite 271, 10 ml

293800005

$20.77

35

Lock Washer 1/4”

211200025

$1.04

36

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

37

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

38

INLET VENT, PORT SIDE - Call your local BRP dealership

204071856

Unavailable

38

INLET VENT, STARBOARD - Call your local BRP dealership

204071857

Unavailable

39

Was 204050122 Vent Hose 4"

219704358

$23.10

40

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

41

Black, Dart

293730006

$0.81

42

Flat Washer M6, Stainless

234062600

$0.64

43

Tie Wrap 368 mm

293750008

$0.85

44

REAR STORAGE TRAY, PORT SIDE - Call your local BRP dealership

204071858

Unavailable

44

REAR STORAGE TRAY, STARBOARD - Call your local BRP dealership

204073076

Unavailable

45

SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership

204100095

Unavailable

46

Spoiler Ass’y | Includes Items 1 to 2

204612760

Unavailable

47

Bombardier Logo

204901398

Unavailable

48

Dart

293730021

$6.06

49

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.22

50

Flat Washer M6, Stainless

234062600

$0.64

51

Flat Washer 10 mm, Stainless

234002600

$1.85

52

PLUG 1-1/2, BLACK - Call your local BRP dealership

204130065

Unavailable

53

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

54

Hex. Jam Nut M10

232100600

$1.85

55

Flat Washer 10 mm, Stainless

234002600

$1.85

56

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

57

Flat Washer 10 mm, Stainless

234002600

$1.85

58

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable
