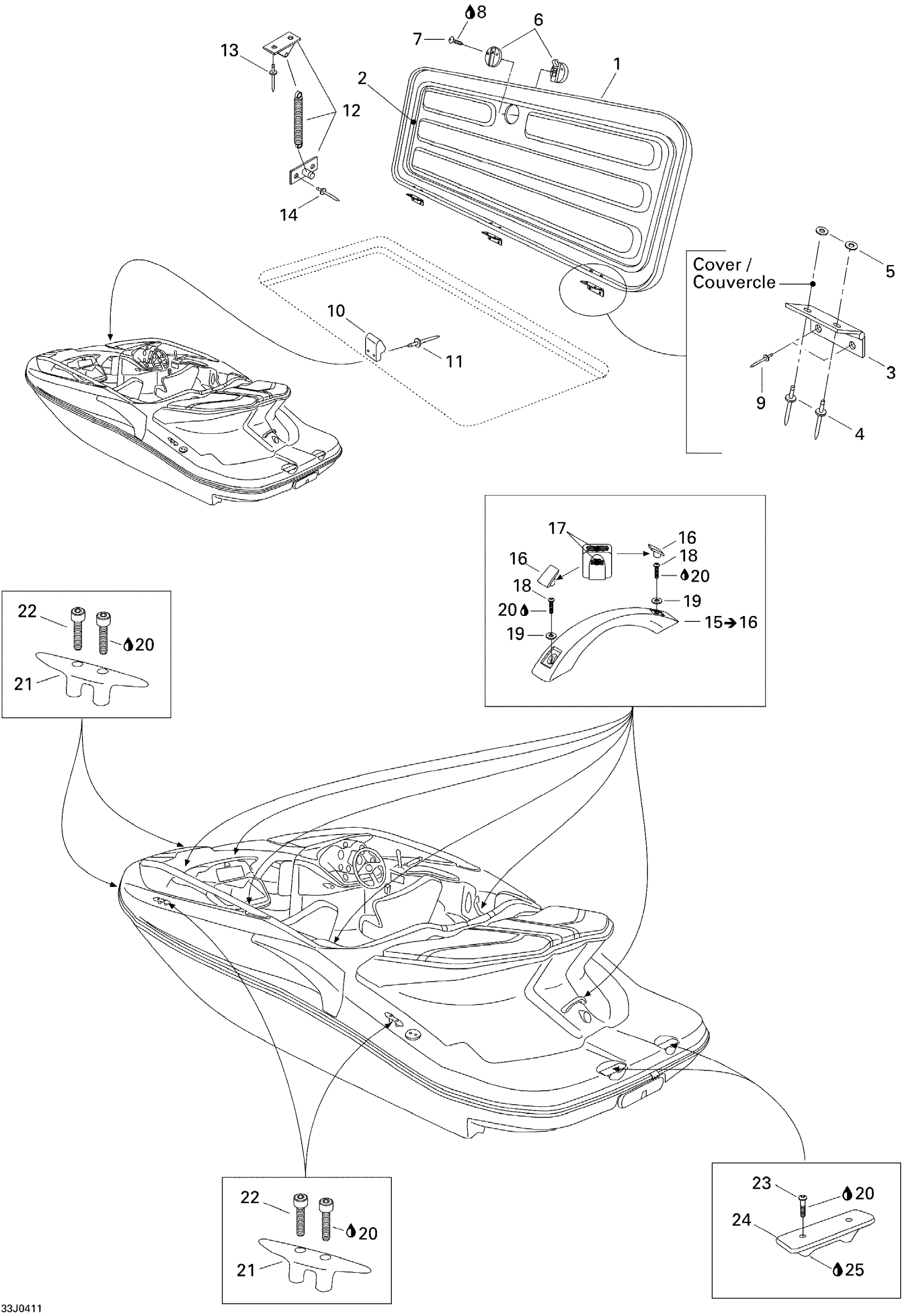

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Central Cover and Accessories Diagram

#

Description
Price

1

Center Cover

204072036

Unavailable

2

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Pop Rivet 3/16"

293150088

$0.99

5

Flat Washer M5, Stainless

234051600

$0.77

6

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

7

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

8

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

9

Pop Rivet 3/16"

293150005

$0.52

10

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

11

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

12

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

13

Pop Rivet 3/16"

204000081

$1.49

14

Pop Rivet 3/16"

293150043

$2.09

15

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

16

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

17

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

18

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

19

Stainless Flat Washer M6

234061600

$0.33

20

Loctite 243, 10 ml

293800060

$21.49

21

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

22

SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD

204100144

Unavailable

23

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

24

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

$36.99
