Partiron

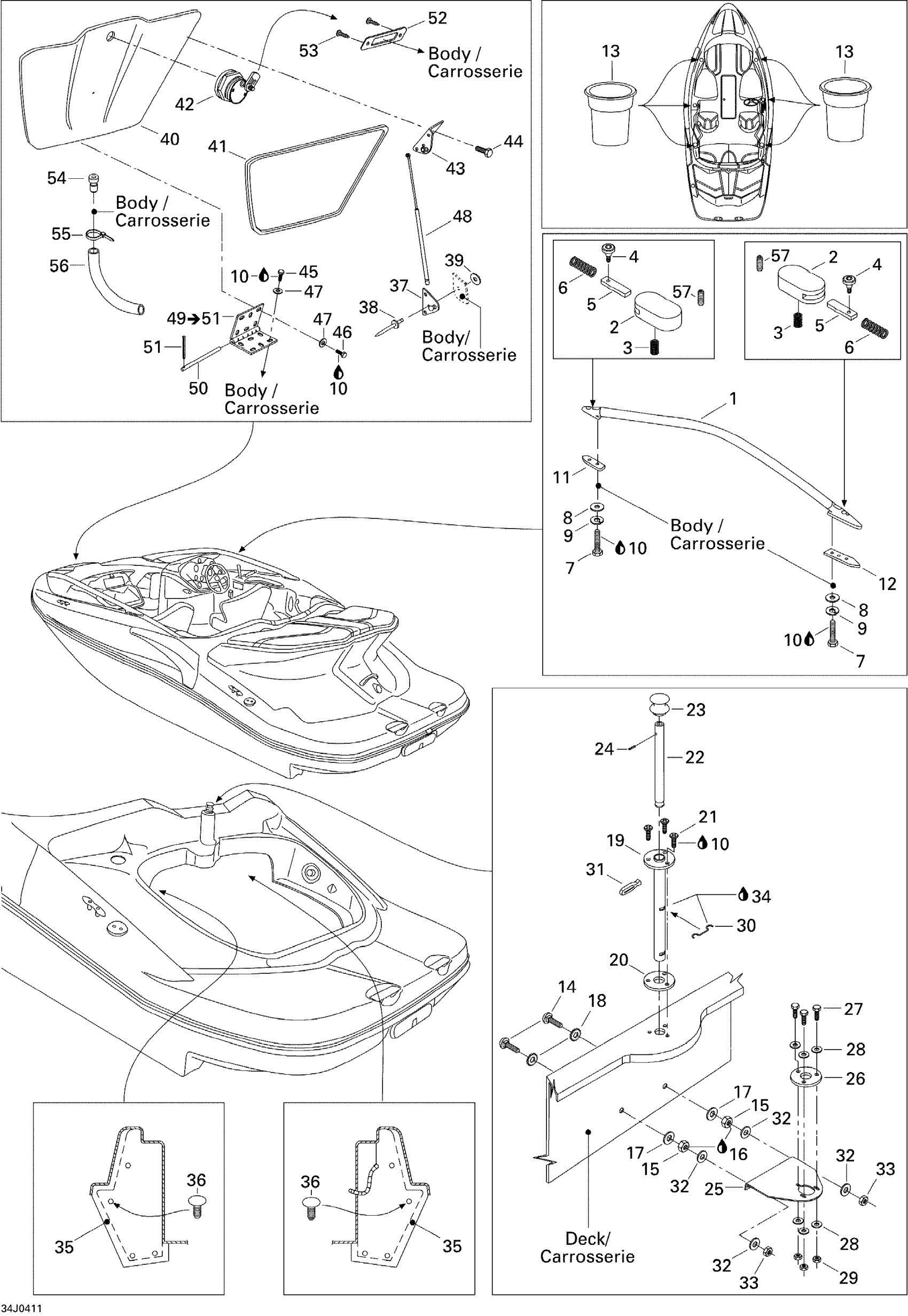

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Body and Accessories Diagram

#

Description
Price

1

Side Rail RH | Starboard

204071667

Unavailable

1

Side Rail LH | Port Side

204071668

Unavailable

2

Rail Insert

204130100

Unavailable

3

Rail Insert Spring

204130101

Unavailable

4

Rail Insert Screw

204100149

Unavailable

5

Push Pin

204130102

Unavailable

6

Push Pin Spring

204130103

Unavailable

7

HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership

204100135

Unavailable

8

Flat Washer 10 mm, Stainless

234002600

Unavailable

9

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

10

Loctite 243, 10 ml

293800060

Unavailable

11

GASKET, FRONT - Call your local BRP dealership | With Tower

204130063

Unavailable

12

GASKET, REAR - Call your local BRP dealership | With Tower

204130064

Unavailable

13

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

14

Elevator Bolt

204000130

Unavailable

15

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

16

Loctite 271, 10 ml

293800005

Unavailable

17

Flat Washer M6, Stainless

234062600

Unavailable

18

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

19

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

20

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

21

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

22

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

23

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

24

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

25

FIXATION PLATE - Call your local BRP dealership

204071839

Unavailable

26

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

27

Hex. Forming Screw M6 X 20

207162060

Unavailable

28

Flat Washer M6, Stainless

234062600

Unavailable

29

Hex. Elastic Stop Nut M6

232561600

Unavailable

30

SPRING - Call your local BRP dealership

291001205

Unavailable

31

Windshield Latch

570023800

Unavailable

32

Flat Washer M6, Stainless

234062600

Unavailable

33

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

34

Synthetic Grease, 400 G

293550010

Unavailable

35

SOUNDWALL SEAL - Call your local BRP dealership

204071935

Unavailable

36

Black Dart

293730014

Unavailable

37

Shock Bracket

204071673

Unavailable

38

Pop Rivet 3/16"

293150043

Unavailable

39

Flat Washer M5, Stainless

234051600

Unavailable

40

Bow Cover

204072038

Unavailable

41

Was 293200017 Neoprene Seal

219704365

Unavailable

42

FLUSH LATCH - Call your local BRP dealership

204071937

Unavailable

43

Shock Bracket

204073074

Unavailable

44

Hex. Screw M4 X 12, Scotch Grip

207341260

Unavailable

45

Hex. Screw M6 X 25

207162560

Unavailable

46

Hex. Screw M6 X 16

207161660

Unavailable

47

Stainless Flat Washer M6

234061600

Unavailable

48

CYLINDER GAS SHOCK - Call your local BRP dealership

204071918

Unavailable

49

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

50

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

51

Cotter Pin M2.5 X 12

204070205

Unavailable

52

LATCH PLATE - Call your local BRP dealership

204072027

Unavailable

53

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

54

DRAIN FITTING - Call your local BRP dealership

204071783

Unavailable

55

Tie Wrap 94 mm | 4X4

293750001

Unavailable

56

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

57

Safety Screw

204100150

Unavailable
