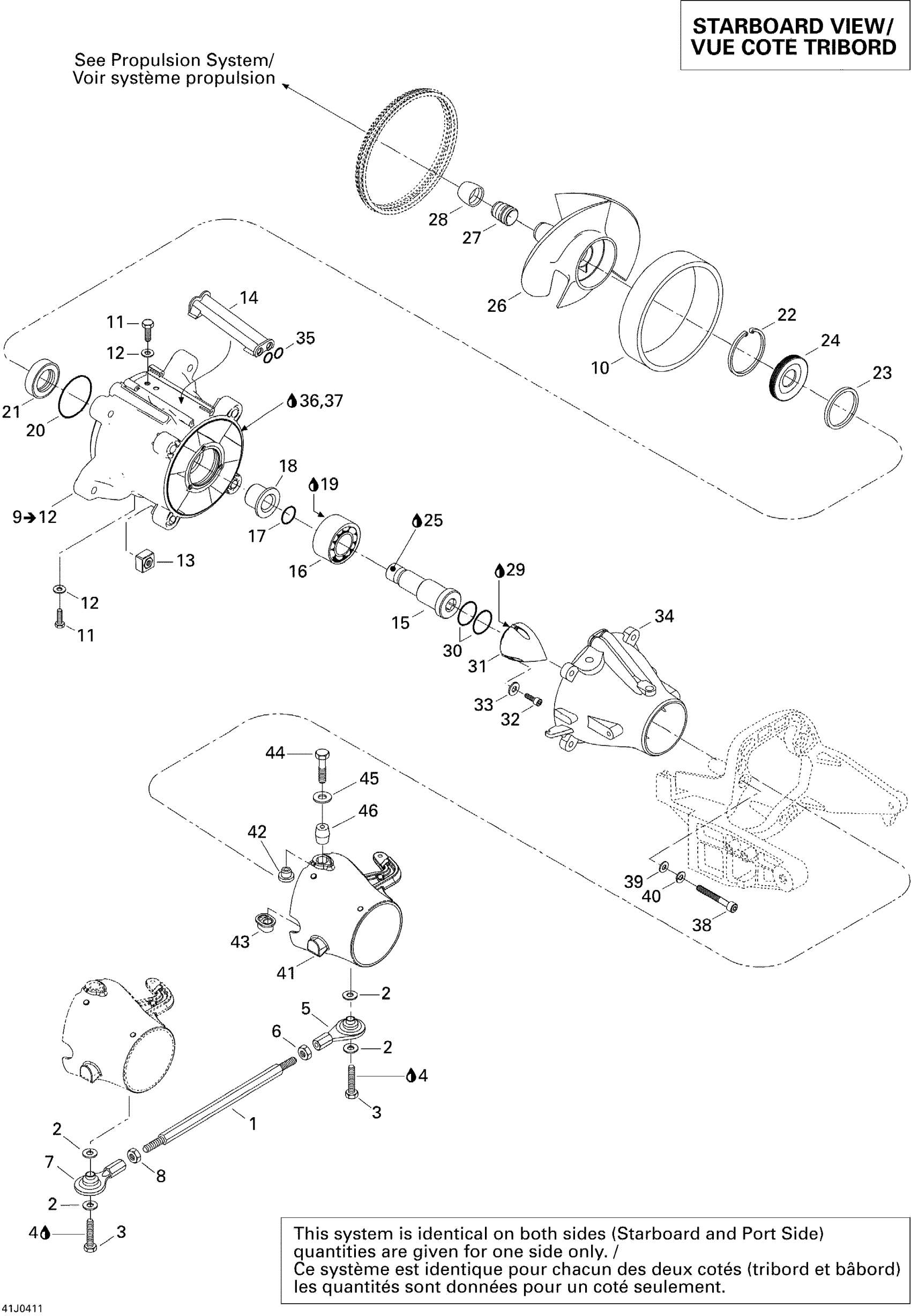

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Pump Diagram

#

Description
Price

1

LINK ROD - Call your local BRP dealership

204120255

Unavailable

2

Stainless Flat Washer M6

234061600

$0.33

3

Hex. Screw M6 X 25

207162560

$1.47

4

Loctite 243, 10 ml

293800060

$21.49

5

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

6

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

7

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

8

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

9

Impeler Housing Ass'y | Includes 9 to 12

267000056

Unavailable

10

Wear Ring

267000419

$84.99

11

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

12

Flat Washer M5, Stainless

234051600

$0.77

13

Square Nut M8

211100033

$17.99

14

Water Outlet

271000785

$3.80

15

Impeller Shaft

267000054

$116.49

16

Angled Bearing This part replaces 267000030.

267000900

$80.99

17

O-Ring

505070315

$2.85

18

Shaft Sleeve

267000318

$134.99

19

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

20

O-Ring

293300090

$7.20

21

Seal

271002071

$33.99

22

Circlip

293370038

$8.79

23

Spacer

271001393

$8.59

24

Oil Seal

293200089

$19.99

25

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Impeller Assy This part replaces 267000115.

267000673

$391.99

27

IMPELLER BOOT - Call your local BRP dealership

271001152

Unavailable

28

IMPELLER RING - Call your local BRP dealership

271001153

Unavailable

29

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

30

O-Ring

293300086

$3.59

31

Impeller Cover

267000262

$21.99

32

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

33

Stainless Flat Washer M6

234061600

$0.33

34

VENTURI, BLACK - Call your local BRP dealership

271001485

Unavailable

35

O-Ring

293300013

$8.18

36

Was 293800041 Loctite Primer 7649

219704458

$39.99

37

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

38

SOCKET HEAD SCREW M8 X 120, SCOTCHGRIP - Call your local BRP dealership

231182060

Unavailable

39

Stainless, Flat Washer 8 mm

234081600

$0.55

40

Lock Washer 8 mm, Stainless

234181601

$0.55

41

STEERING NOZZLE - Call your local BRP dealership

271001482

Unavailable

42

Venturi Bushing

293900001

$7.62

43

Plastic Bushing

293900010

$9.59

44

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

45

Flat Washer M8.5 x 18

293050001

$3.07

46

Sleeve

271001816

$14.99
