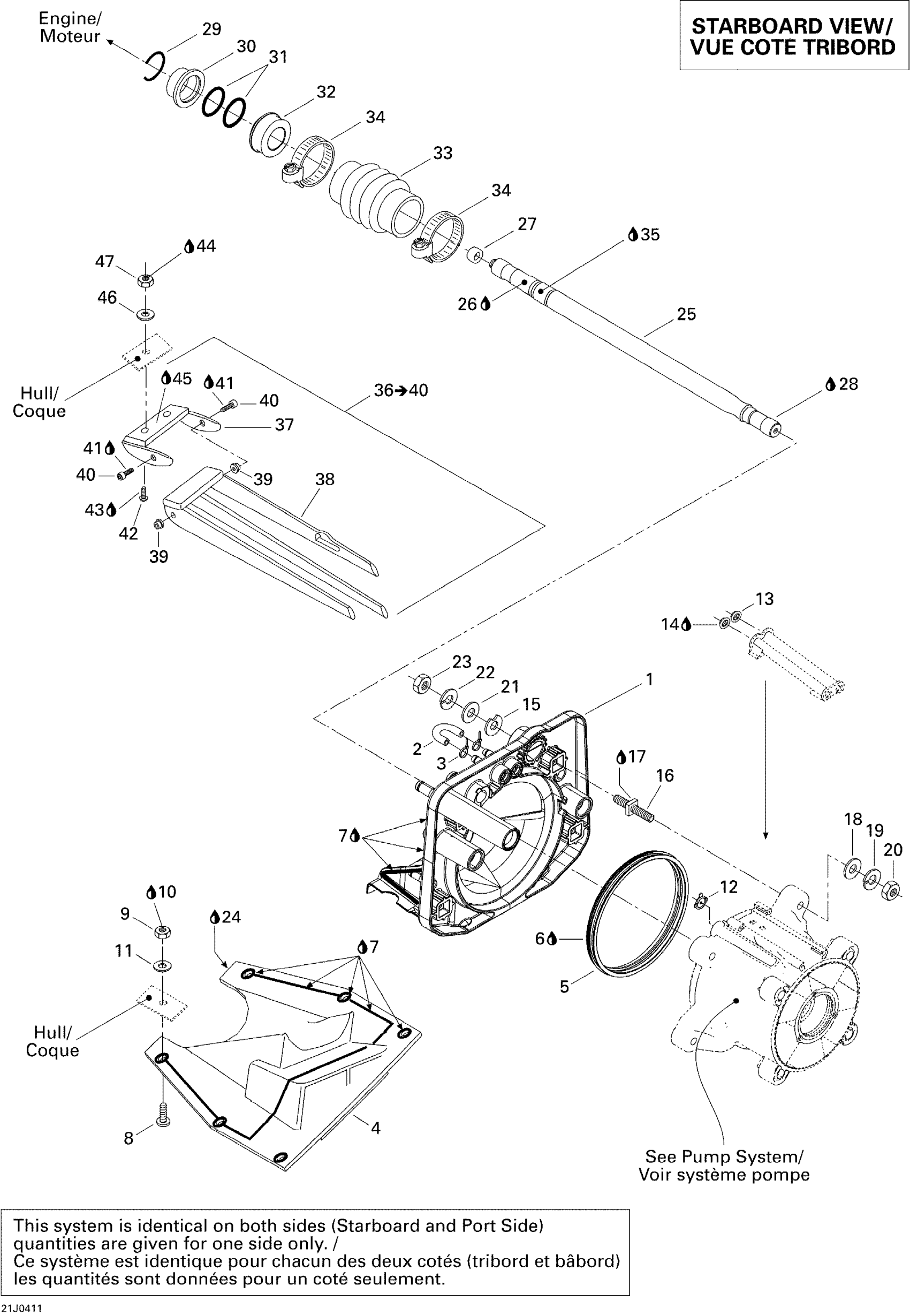

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120252

Unavailable

2

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

3

Tie Wrap 94 mm | 4X4

293750001

Unavailable

4

Riding Plate, Port Side

204120261

Unavailable

4

Riding Plate, Starboard

204120262

Unavailable

5

Neoprene Seal

293200087

Unavailable

6

Glue Tube, Loctite 454, 20 G

413708300

Unavailable

7

Instant Gasket

219701421

Unavailable

8

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

Unavailable

10

Silicone Sealant 51388, 300 ml

296000309

Unavailable

11

Flat Washer M6, Stainless

234062600

Unavailable

12

Reducer This part replaces 291001887.

291004649

Unavailable

13

Watertight Seal

293250084

Unavailable

14

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

15

Shim 0.3 mm

272000053

Unavailable

15

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

16

Square Stud

250300022

Unavailable

17

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

18

Flat Washer 10 mm, Stainless

234002600

Unavailable

19

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

20

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

21

Flat Washer 10 mm, Stainless

234002600

Unavailable

22

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

23

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

24

Instant Gasket

219701421

Unavailable

25

Drive Shaft

271001449

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Drive Shaft Plug

272000173

Unavailable

28

Synthetic Grease, 400 G

293550010

Unavailable

29

C-Clip

271001575

Unavailable

30

Carbon Ring Kit This part replaces 272000177.

295501200

Unavailable

31

O-Ring

293300044

Unavailable

32

Carbon Ring Kit This part replaces 272000177.

295501200

Unavailable

33

Bellows

272000183

Unavailable

34

Norma Clamp

293650077

Unavailable

35

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

36

Weedless Grate Ass’y, Starboard | Includes 29 to 34

204120258

Unavailable

36

Weedless Grate Ass’y, Port Side | Includes 29 to 34

204120259

Unavailable

37

Grate Support, Starboard

204120083

Unavailable

37

GRATE SUPPORT, PORT SIDE - Call your local BRP dealership

204120086

Unavailable

38

MOBILE GRATE, STARBOARD - Call your local BRP dealership

204120256

Unavailable

38

Mobile Grate, Port Side

204120257

Unavailable

39

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

40

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

41

Loctite 243, 10 ml

293800060

Unavailable

42

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

43

Loctite 243, 10 ml

293800060

Unavailable

44

Silicone Sealant 51388, 300 ml

296000309

Unavailable

45

Instant Gasket

219701421

Unavailable

46

Flat Washer M6, Stainless

234062600

Unavailable

47

Hex. Elastic Stop Nut M6

232561600

Unavailable
