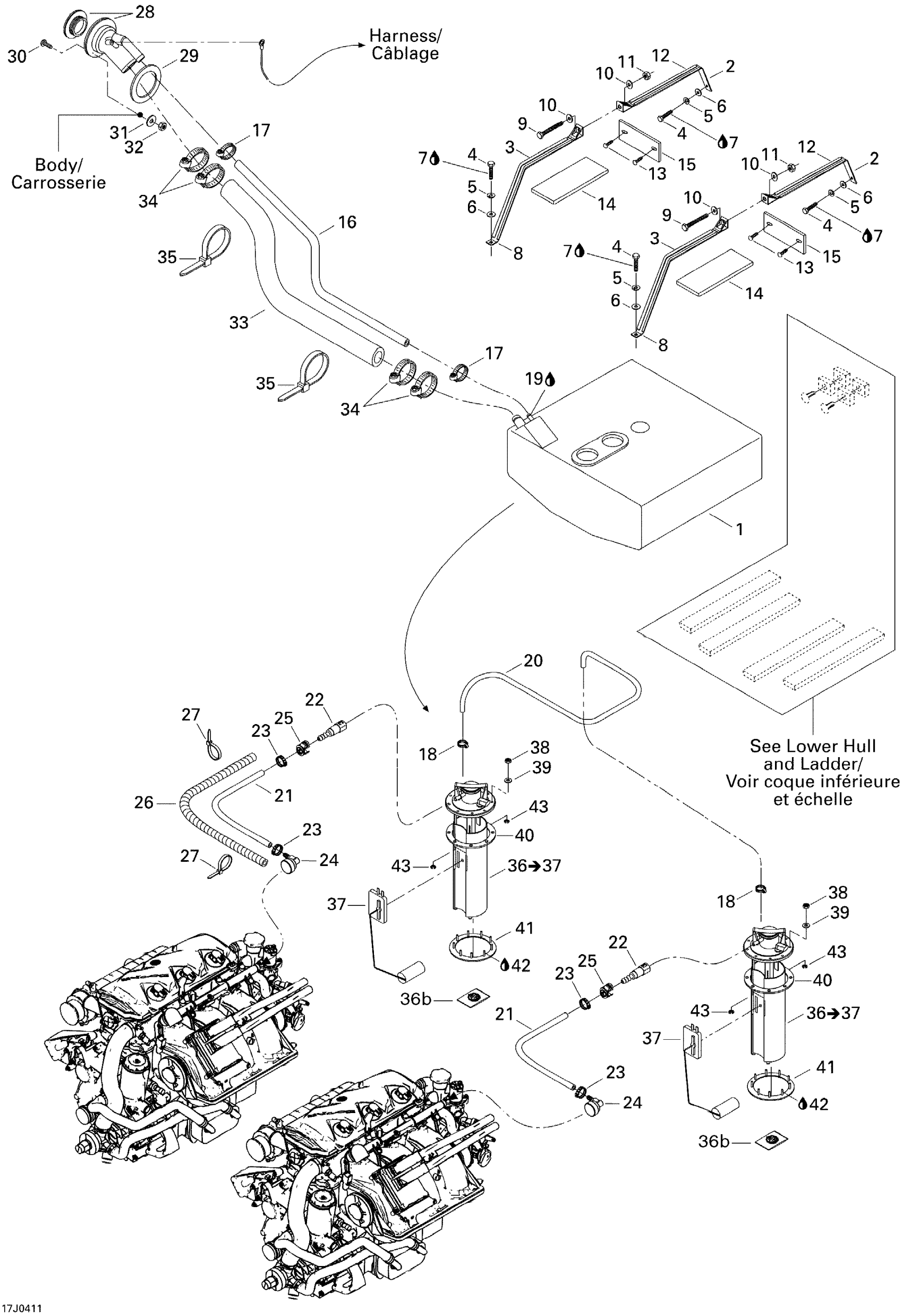

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Fuel System Diagram

#

Description
Price

1

Fuel Tank

204560256

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560235

Unavailable

3

Protector Pad

202560034

Unavailable

4

Hex. Screw M8 X 30

207183060

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

Unavailable

6

Flat Washer 8 mm, Stainless

234082600

Unavailable

7

Loctite 271, 10 ml

293800005

Unavailable

8

FUEL TANK STRAP - Call your local BRP dealership

204560270

Unavailable

9

HEX. SCREW M8 X 80 - Call your local BRP dealership

207188060

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

Unavailable

11

Hex. Elastic Nut M8

232581600

Unavailable

12

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

13

Black, Dart

293730006

Unavailable

14

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

15

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

16

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

17

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

18

Tridon Gear Clamp

293650170

Unavailable

19

Gasket Sealant

202000782

Unavailable

20

Was 275500549 Hose 1/4"

219704357

Unavailable

21

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

22

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

23

Crimp Clamp, 15.3-706R

293650047

Unavailable

24

Elbow Fitting 90°

293710099

Unavailable

25

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

26

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

27

Tie Wrap 142 mm

293750002

Unavailable

28

FILLER NECK - Call your local BRP dealership

204560182

Unavailable

29

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

30

Phillips Screw M4 X 35

208643560

Unavailable

31

Flat Washer 4 mm

234040600

Unavailable

32

Elastic Stop Nut M4

232541600

Unavailable

33

Filler Neck Hose

204560294

Unavailable

34

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

35

Tie-Rap 180 mm

414115200

Unavailable

36

FUEL PUMP MODULE ASSY - Call your local BRP dealership | Includes 20 to 20b

204560259

Unavailable

36b

Fuel Filter, Bosch

219700368

Unavailable

37

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

38

Elastic Stop Nut 5 mm

232551200

Unavailable

39

Flat Washer 5 mm, Stainless

234052400

Unavailable

40

Gasket

293250088

Unavailable

41

C-Ring, 9 Studs

275500679

Unavailable

42

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

43

Circlip 5 mm

293370002

Unavailable
