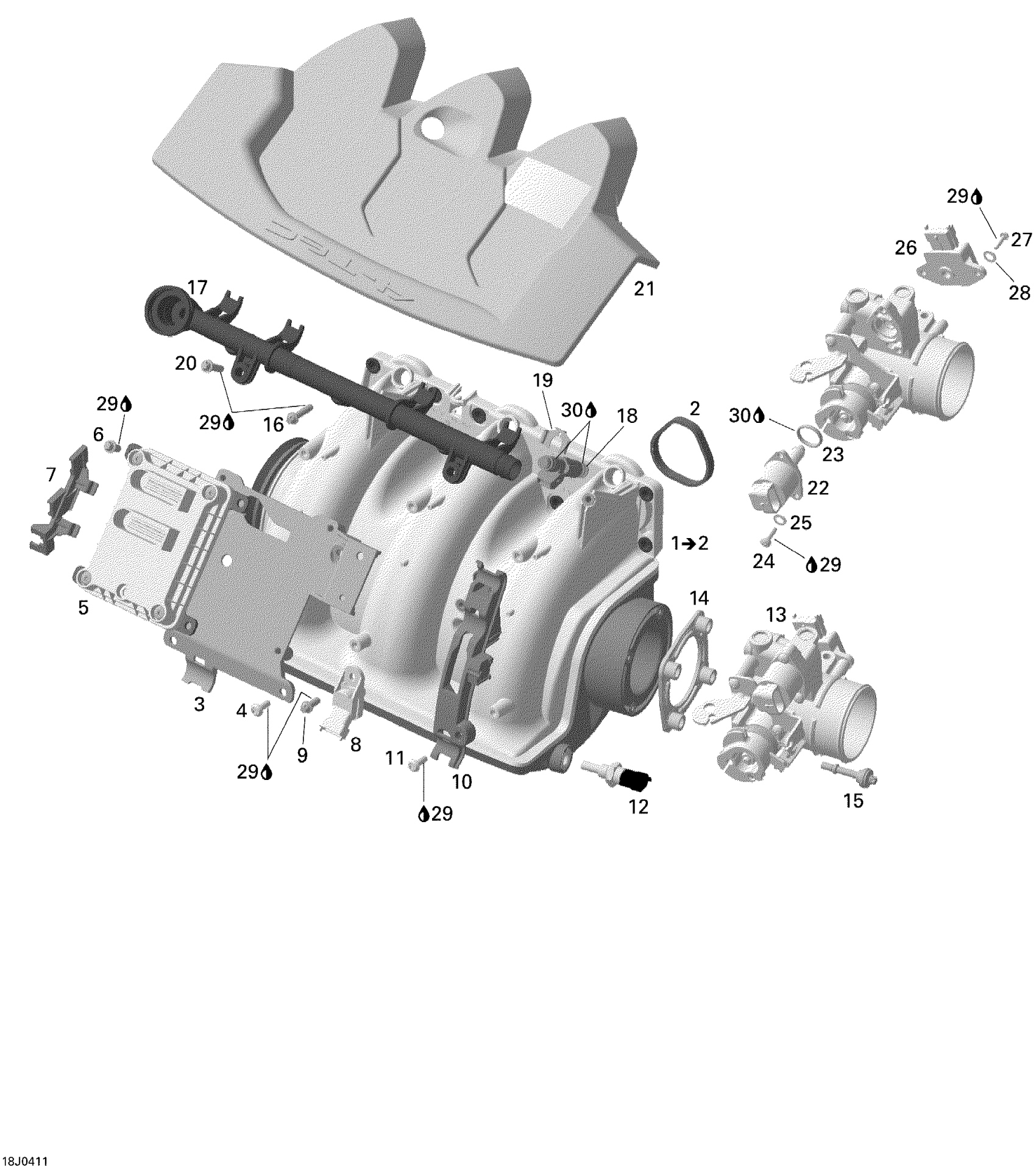

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Air Intake Manifold Diagram

#

Description
Price

1

Air Intake Manifold | Includes 1 to 2

420867921

$469.99

2

Gasket | Included in gasket kit

420950740

$4.44

3

Base Plate

420851520

Unavailable

4

Torx Flange Screw M6 X 16

420641048

$2.96

5

ELECTRONIC BOX - Call your local BRP dealership

420664133

$1.00

6

Torx Flange Screw M6 X 16

420641588

$2.11

7

Connector Bracket

420660400

Unavailable

8

Pressure Sensor

270600040

$199.99

9

Torx Flange Screw M6 X 16

420641048

$2.96

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$2.11

12

Temperature Sensor

278002895

$39.99

13

THROTTLE BODY - Call your local BRP dealership

420889022

Unavailable

14

Rubber Gasket

420950792

$11.60

15

Allen Screw M6 x 30,5

420440561

$4.44

16

Torx Flange Screw M6 X 25

420641238

$3.27

17

FUEL RAIL ASS'Y - Call your local BRP dealership

420874391

Unavailable

18

INJECTOR - Call your local BRP dealership | Includes 19 to 20

420874430

Unavailable

19

Injector Clip

420853030

$3.09

20

Torx Flange Screw M6 X 25

420641238

$3.27

21

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

22

Idle Bypass Valve

420963051

$307.49

23

O-Ring

420631780

$4.44

24

Binding Head Screw M5 X 16

420440911

$14.28

25

Snap Ring

420845710

$4.12

26

Position Sensor

420866120

$98.99

27

Phillips Screw M4 X 16

208641660

$0.90

28

Flat Washer 4 mm, Stainless

234042600

$1.15

29

Loctite 243, 10 ml

293800060

$21.49

30

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
