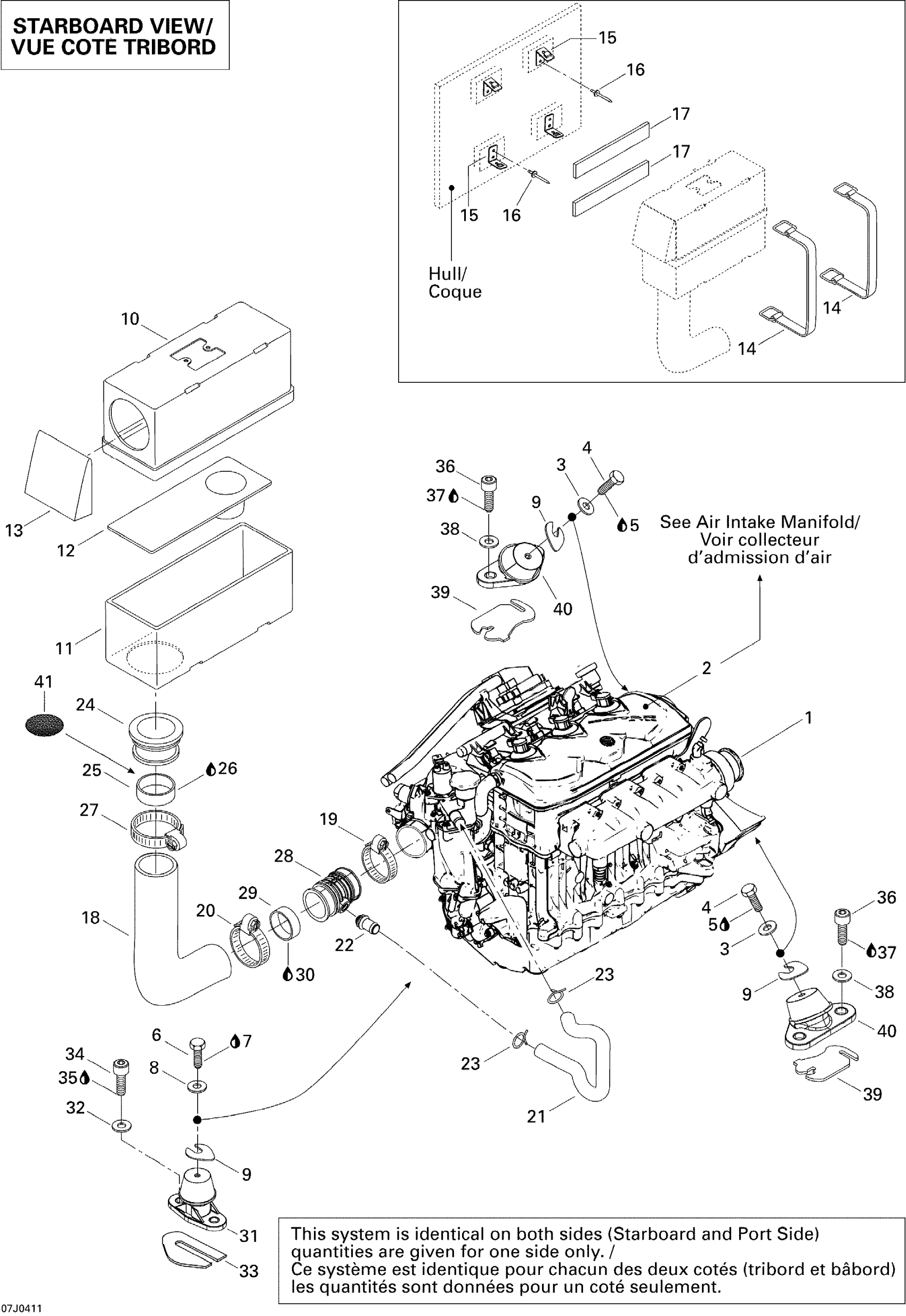

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Engine Support and Air Intake Diagram

#

Description
Price

1

Rotax Engine 4 Strokes «1503»

270000567

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

Unavailable

4

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

5

Loctite 243, 10 ml

293800060

Unavailable

6

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

7

Loctite 243, 10 ml

293800060

Unavailable

8

Flat Washer 8 mm, Stainless

234082600

Unavailable

9

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

10

Air Silencer, Upper

204250260

Unavailable

11

Air Silencer, Lower

204250261

Unavailable

12

Air Silencer Divider

204250269

Unavailable

13

Air Silencer Hood

204250270

Unavailable

14

Retainer Strap

293850097

Unavailable

15

Strap Clip 90°

204060017

Unavailable

16

Pop Rivet 3/16"

293150088

Unavailable

17

Neoprene Strip

204130059

Unavailable

18

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

19

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

20

Tridon Clamp

293650179

Unavailable

21

FORMED HOSE - Call your local BRP dealership

275500497

Unavailable

22

Breather Valve

273000234

Unavailable

23

Spring Clamp

293650115

Unavailable

24

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

25

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

26

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

27

Tridon Clamp

293650179

Unavailable

28

Adaptor Hose, Engine

204250276

Unavailable

29

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

30

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

31

Engine Support Ass'y

270001096

Unavailable

32

Cone Washer

250200018

Unavailable

33

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

Unavailable

34

Socket Head Screw M8 X 45

205084560

Unavailable

35

Loctite 243, 10 ml

293800060

Unavailable

36

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

37

Loctite 243, 10 ml

293800060

Unavailable

38

Cone Washer

250200018

Unavailable

39

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

Unavailable

40

Engine Support Ass'y

270001081

Unavailable

41

Intake Screen

204250395

Unavailable
