- Speedster 200 Twin 4-TEC, 2nd Edition, 2004
Engine Block

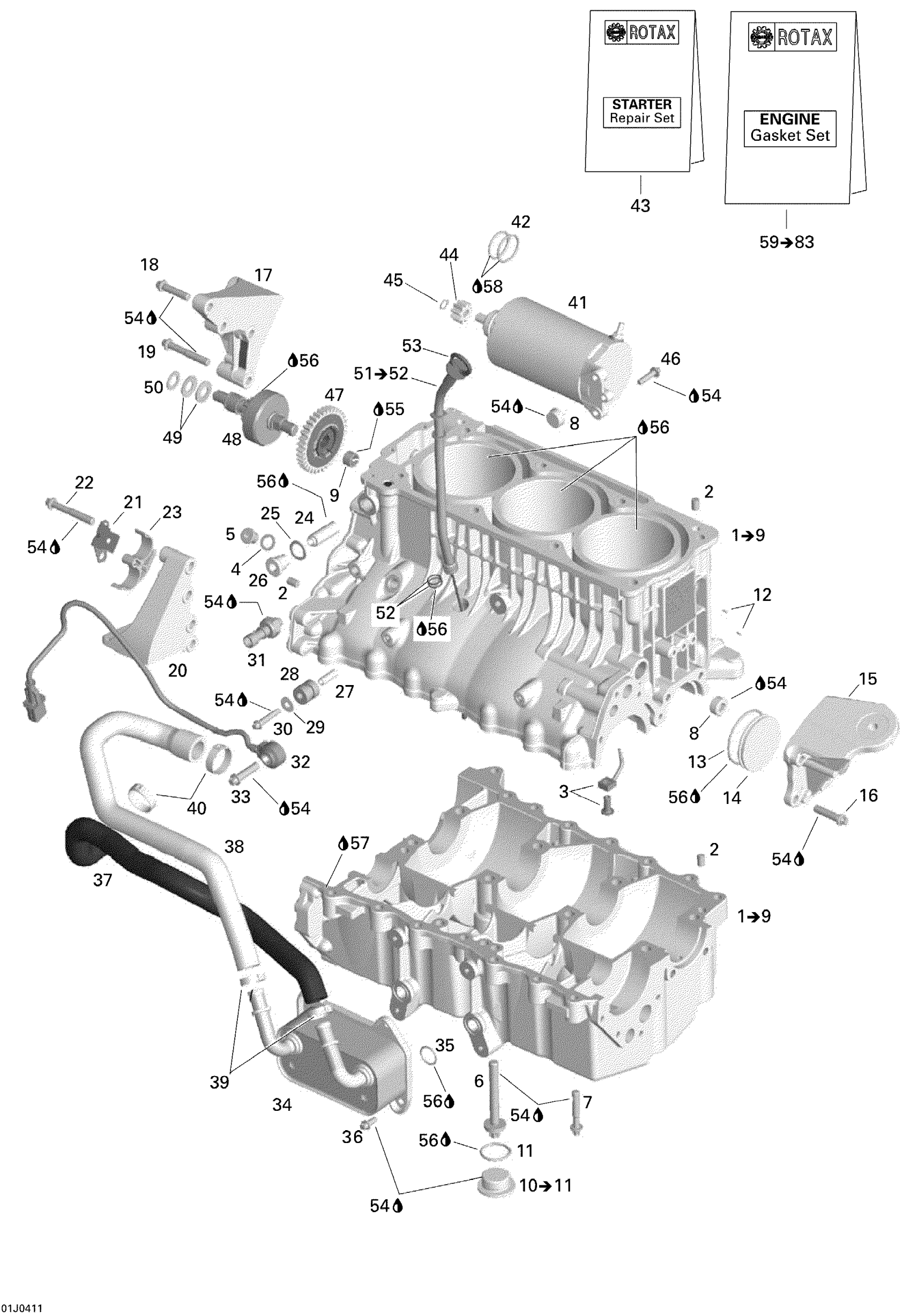

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Engine Block Diagram
#
1
Engine Block Ass'y 1503, Elite | Includes 1 to 9
420888814
Unavailable
2
Center Pin 8 X 12
420632010
Unavailable
3
Oil Spray Nozzle This part replaces 420956778.
420956827
Unavailable
4
Aluminum Sealing Ring
420250016
Unavailable
5
Plug Screw M12
420841923
Unavailable
6
Torx Flange Screw M10 X 82
420641120
Unavailable
7
Hex. Flange Screw M8 X 45
420641208
Unavailable
8
Plug Screw M20 X 1.5
420641317
Unavailable
9
Needle Bushing
420232482
Unavailable
10
Plug Screw M30 X 1.5
420641171
Unavailable
11
O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws
420631300
Unavailable
12
Grooved Pin
420249073
Unavailable
13
O-Ring
420430405
Unavailable
14
Plug Cover
420660110
Unavailable
15
FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.
420811792
Unavailable
16
Torx Flange Screw M8 X 35
420641188
Unavailable
17
Engine Bracket PTO, Exhaust
420811788
Unavailable
18
Torx Flange Screw M8 X 35
420641188
Unavailable
19
Torx Flange Screw M8 X 55
420641213
Unavailable
20
Engine Bracket PTO, Exhaust
420811784
Unavailable
21
Retaining Plate
420851740
Unavailable
22
Torx Flange Screw M8 X 55
420641213
Unavailable
23
Hose Bracket
420660290
Unavailable
24
Chain Tensioner
415129408
Unavailable
25
Gasket Ring
420430624
Unavailable
26
Chain Tensioner With Screw | Includes no. 8-11
420236259
Unavailable
27
SPACER - Call your local BRP dealership
420847970
Unavailable
28
Rubber Bracket
420660090
Unavailable
29
Flat Washer M6
420827968
Unavailable
30
Torx Flange Screw M6 X 35
420641258
Unavailable
31
Inter.Press.Hui*Oil Pressure Switch This part replaces 420856530.
420856538
Unavailable
32
Noise Sensor
270000484
Unavailable
33
Torx Flange Screw M8 X 35
420641188
Unavailable
34
Oil Radiator
420888850
Unavailable
35
O-Ring
420250057
Unavailable
36
Torx Flange Screw M6 X 16
420641048
Unavailable
37
FORMED HOSE - Call your local BRP dealership
420922796
Unavailable
38
FORMED HOSE - Call your local BRP dealership
420922791
Unavailable
39
Oeticker Gear Clamp, 25.6-706R
509000442
Unavailable
40
Gear Clamp
420851673
Unavailable
41
Electric Starter Ass'y | Includes no. 20-21
420888995
Unavailable
42
O-Ring
420631310
Unavailable
43
CARBON BRUSH SET - Call your local BRP dealership
420664710
Unavailable
44
Starter Gear, 9 Teeth
420834522
Unavailable
45
Retaining Ring
420845601
Unavailable
46
Torx Flange Screw M6 X 25
420641238
Unavailable
47
Bendix Starter This part replaces 420889872.
420890637
Unavailable
48
Bendix Starter This part replaces 420889872.
420890637
Unavailable
49
Spring Washer
420238300
Unavailable
50
Thrust Washer
420827261
Unavailable
51
OIL LEVEL TUBE - Call your local BRP dealership | Includes 51 to 52
420956943
Unavailable
52
O-Ring
420950810
Unavailable
53
Oil Level Gauge
420956932
Unavailable
54
Loctite 243, 10 ml
293800060
Unavailable
55
Dow Corning 111, 150 g
413707000
Unavailable
56
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
57
Loctite 5910, 300 ml
293800081
Unavailable
58
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
59
Engine Gasket Set
420889772
Unavailable
60
Timing Drive Cover Gasket (1603 NA) | Included in gasket kit
420931130
Unavailable
61
Cylinder Head Gasket This part replaces 420950770.
420950771
Unavailable
62
Tie Rap
420866714
Unavailable
63
Rotary Seal
420650371
Unavailable
64
Oil Seal
420650315
Unavailable
65
O-Ring
420230923
Unavailable
66
Circlip
420845580
Unavailable
67
Gasket
420630540
Unavailable
68
GASKET - Call your local BRP dealership
420630220
Unavailable
69
Sealing Ring
420630551
Unavailable
70
Gasket
420950970
Unavailable
71
Seal
420230510
Unavailable
72
GASKET - Call your local BRP dealership
420630231
Unavailable
73
O-Ring
420250057
Unavailable
74
O-Ring
420950870
Unavailable
75
Rubber Gasket
420950792
Unavailable
76
Tie-Rap
420866716
Unavailable
77
O-Ring
420430405
Unavailable
78
GASKET - Call your local BRP dealership
420950850
Unavailable
79
O-Ring
420950810
Unavailable
80
O-Ring
420950860
Unavailable
81
O-Ring
420230890
Unavailable
82
O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws
420631300
Unavailable
83
O-Ring
420631310
Unavailable
84
Engine Long Block, 1503 NA | Not Shown
415150315
Unavailable
