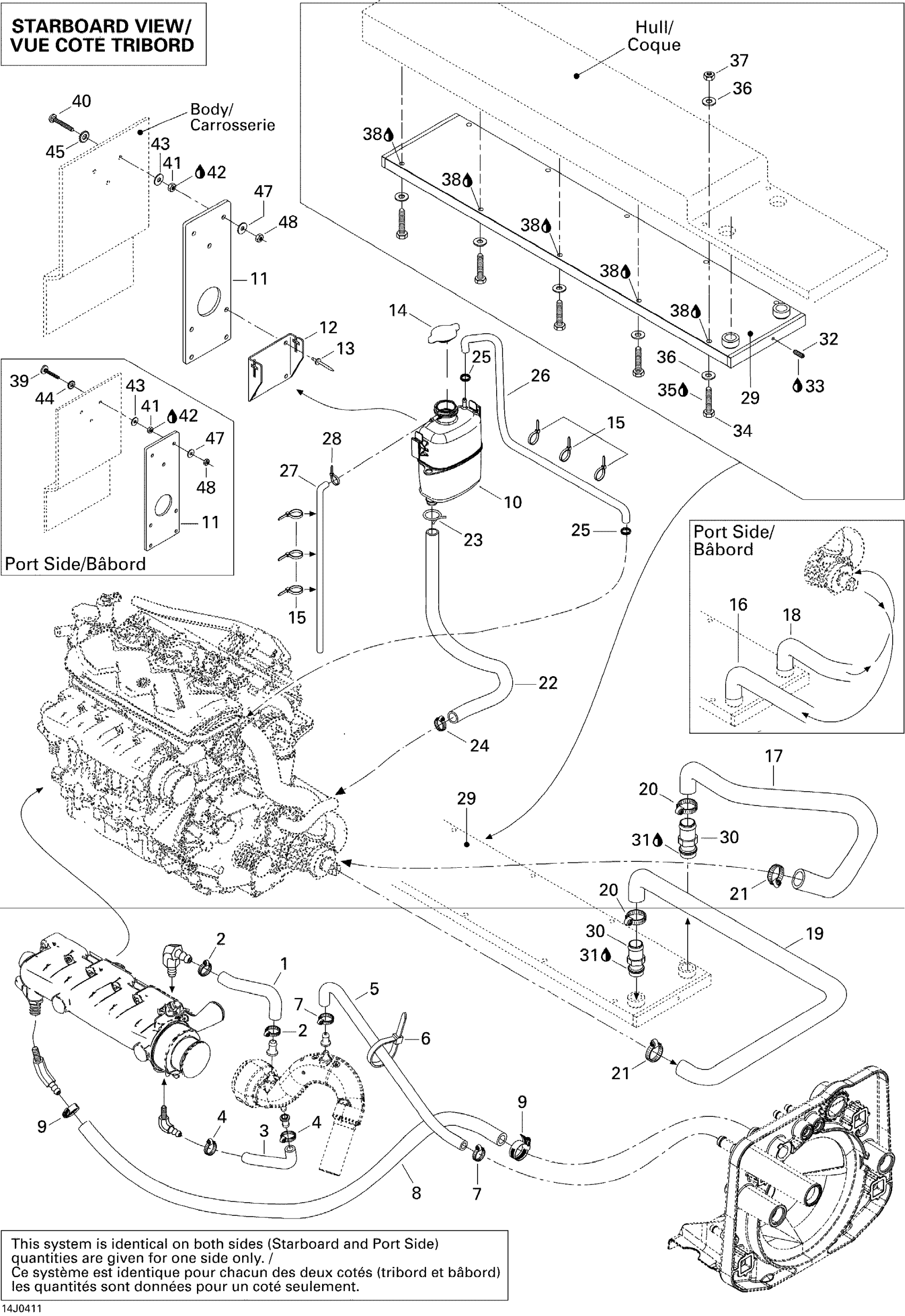

Sea-doo Speedster 200 Twin 4-TEC, 2nd Edition, 2004 Cooling System Diagram

#

Description
Price

1

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

2

Tridon Gear Clamp

293650172

$3.09

3

Lower Formed Hose

276000104

Unavailable

4

Tridon Gear Clamp

293650172

$3.09

5

Was 276000001 Hose 12.5 mm

219704394

$51.99

6

Tie Wrap 368 mm

293750008

$1.04

7

Tridon Gear Clamp

293650172

$3.09

8

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

9

Tridon Gear Clamp

293650051

$4.19

10

Coolant Tank

276000086

$109.99

11

Coolant Tank Bracket Mount

204300145

Unavailable

12

Coolant Tank Bracket

204300126

Unavailable

13

Pop Rivet 3/16"

293150008

$0.50

14

Pressure Cap | Includes 720 to 720a

276000100

$25.99

15

Tie Wrap 142 mm

293750002

$1.25

16

FORMED HOSE - Call your local BRP dealership | Port Side

204300136

Unavailable

17

FORMED HOSE - Call your local BRP dealership | Starboard

204300137

Unavailable

18

FORMED HOSE - Call your local BRP dealership | Port Side

204300138

Unavailable

19

FORMED HOSE - Call your local BRP dealership | Starboard

204300139

Unavailable

20

Tridon Gear Clamp

293650045

$5.69

21

Tridon Gear Clamp

293650045

$5.69

22

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

23

Spring Clamp

293650115

$3.09

24

Tridon Gear Clamp

293650019

$5.82

25

Oetiker Gear Clamp

293650025

$3.09

26

Was 275500549 Hose 1/4"

219704357

$194.99

27

Polyurethane Hose 10000Mm Long

219704410

$56.99

28

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

Heat Exchanger

204300153

Unavailable

30

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

31

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

32

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

33

Was 293800013 Loctite 56765

219704454

$65.99

34

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Flat Washer 10 mm, Stainless

234000600

$1.46

37

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

38

Instant Gasket

219701421

$51.99

39

Elevator Bolt

204000130

Unavailable

40

Elevator Bolt

204000130

Unavailable

41

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

42

Loctite 271, 10 ml

293800005

$26.99

43

Flat Washer M6, Stainless

234062600

$0.77

44

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

45

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

47

Flat Washer M6, Stainless

234062600

$0.77

48

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable
