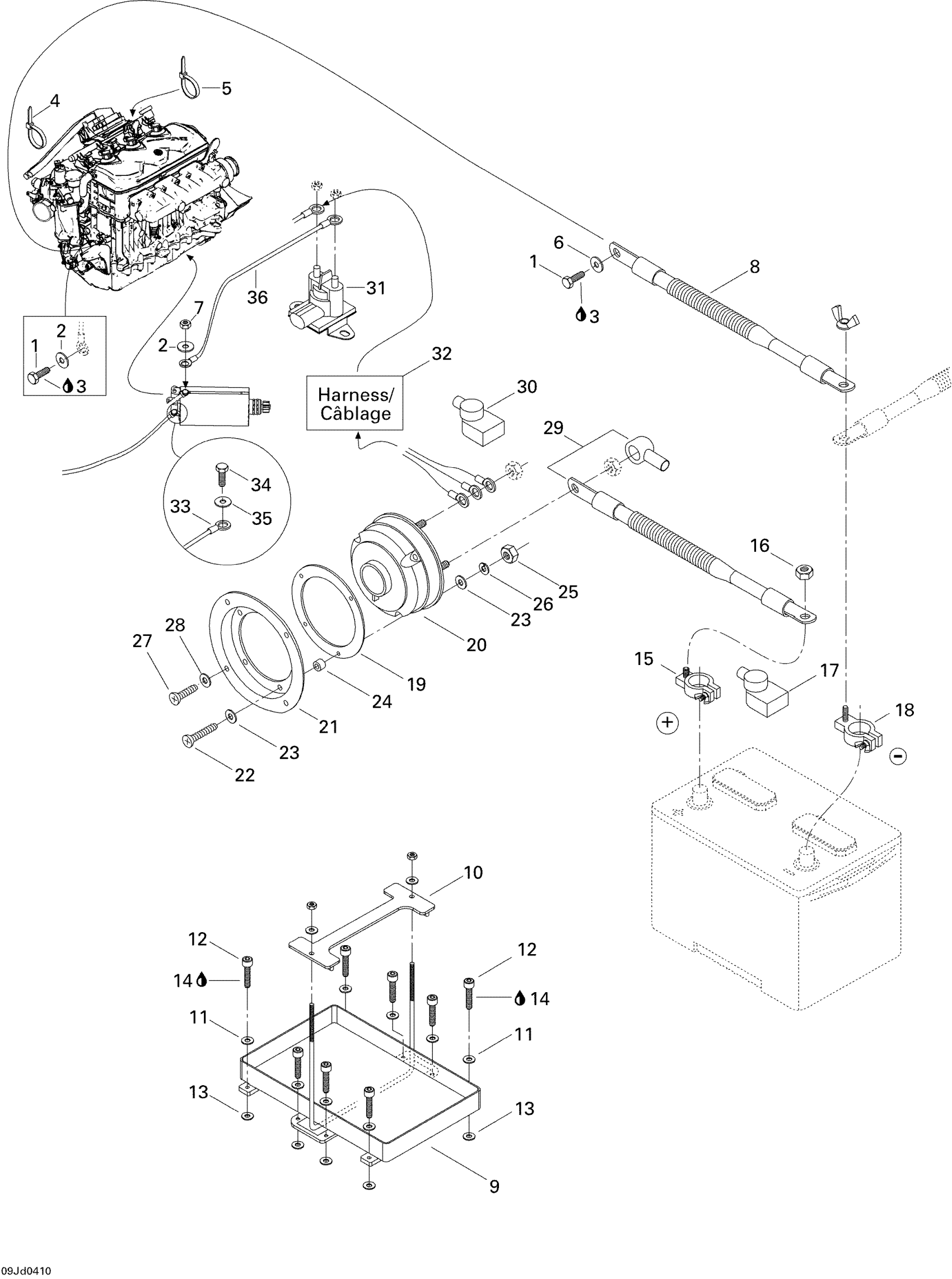

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Electrical System Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

2

Stainless Flat Washer M6

234061600

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

4

Tie-Rap 180 mm

414115200

Unavailable

5

Tie Wrap 142 mm

293750002

Unavailable

6

Flat Washer M6, Stainless

234062600

Unavailable

7

Hex. Elastic Stop Nut M6

232561600

Unavailable

8

GROUND CABLE - Call your local BRP dealership

204470839

Unavailable

9

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

10

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

11

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

12

Socket Head Screw M6 X 25

205062560

Unavailable

13

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

14

Loctite 243, 10 ml

293800060

Unavailable

15

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

16

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

17

RED BOOT - Call your local BRP dealership

204470269

Unavailable

18

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

19

SWITCH ADAPTOR - Call your local BRP dealership

204470813

Unavailable

20

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

21

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

22

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

23

Flat Washer M5, Stainless

234051600

Unavailable

24

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

25

Hex. Nut M5

232051600

Unavailable

26

Helical Lock Washer M5

234151601

Unavailable

27

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

28

Flat Washer 4 mm, Stainless

234041600

Unavailable

29

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

30

RED BOOT - Call your local BRP dealership

204470269

Unavailable

31

Starter Relay

278003012

Unavailable

32

Harness

204470883

Unavailable

33

GROUND CABLE, STARBOARD - Call your local BRP dealership

204470840

Unavailable

GROUND CABLE, PORT SIDE - Call your local BRP dealership

204470854

Unavailable

34

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

35

Stainless Flat Washer M6

234061600

Unavailable

36

Red Cable

204470852

Unavailable
