- Speedster 200 Twin 4-TEC, 1st Edition, 2004
10- Electrical Accessories 3

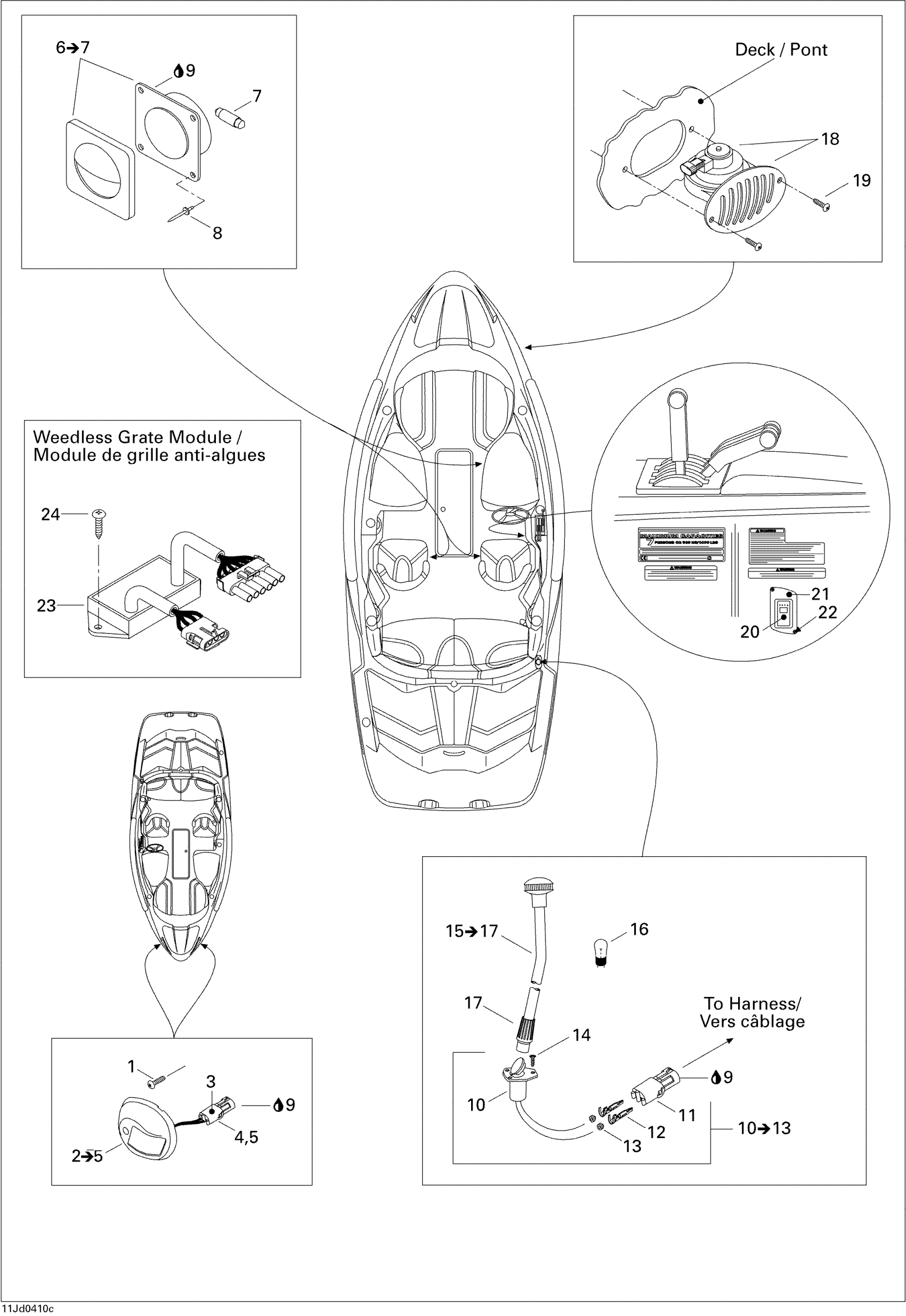

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 10- Electrical Accessories 3 Diagram
#
Description
Price
1
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
2
GREEN NAVIGATION LAMP ASSY, STARBOARD - Call your local BRP dealership | Includes 4 to 7
204470755
Unavailable
RED NAVIGATION LAMP ASSY, PORT SIDE - Call your local BRP dealership | Includes 8 to 11
204470754
Unavailable
3
Female Housing, 2 Circuits
409209500
$15.27
4
Female Terminal
278001014
$3.28
5
Wire Seal
278001013
$3.28
6
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
7
BULB - Call your local BRP dealership
204470081
Unavailable
8
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
9
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
10
REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.
204470642
Unavailable
11
Female Housing, 2 Circuits
278000217
$9.59
12
Male Terminal | XT Models
278000222
$3.19
13
Wire Seal
278000218
$4.39
14
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
15
Rear Lamp Pole | Includes 17 to 19, Models Without Tower
204470022
Unavailable
16
Bulb
204470053
Unavailable
17
COLLAR - Call your local BRP dealership
204470350
Unavailable
18
HORN - Call your local BRP dealership
204470801
Unavailable
19
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
20
Weedless Switch
204470858
Unavailable
21
Switch Panel
204470862
Unavailable
22
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
250000090
Unavailable
23
Weedless Grade Module
204470887
Unavailable
24
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
