- Speedster 200 Twin 4-TEC, 1st Edition, 2004
09- Seat (front And Rear)

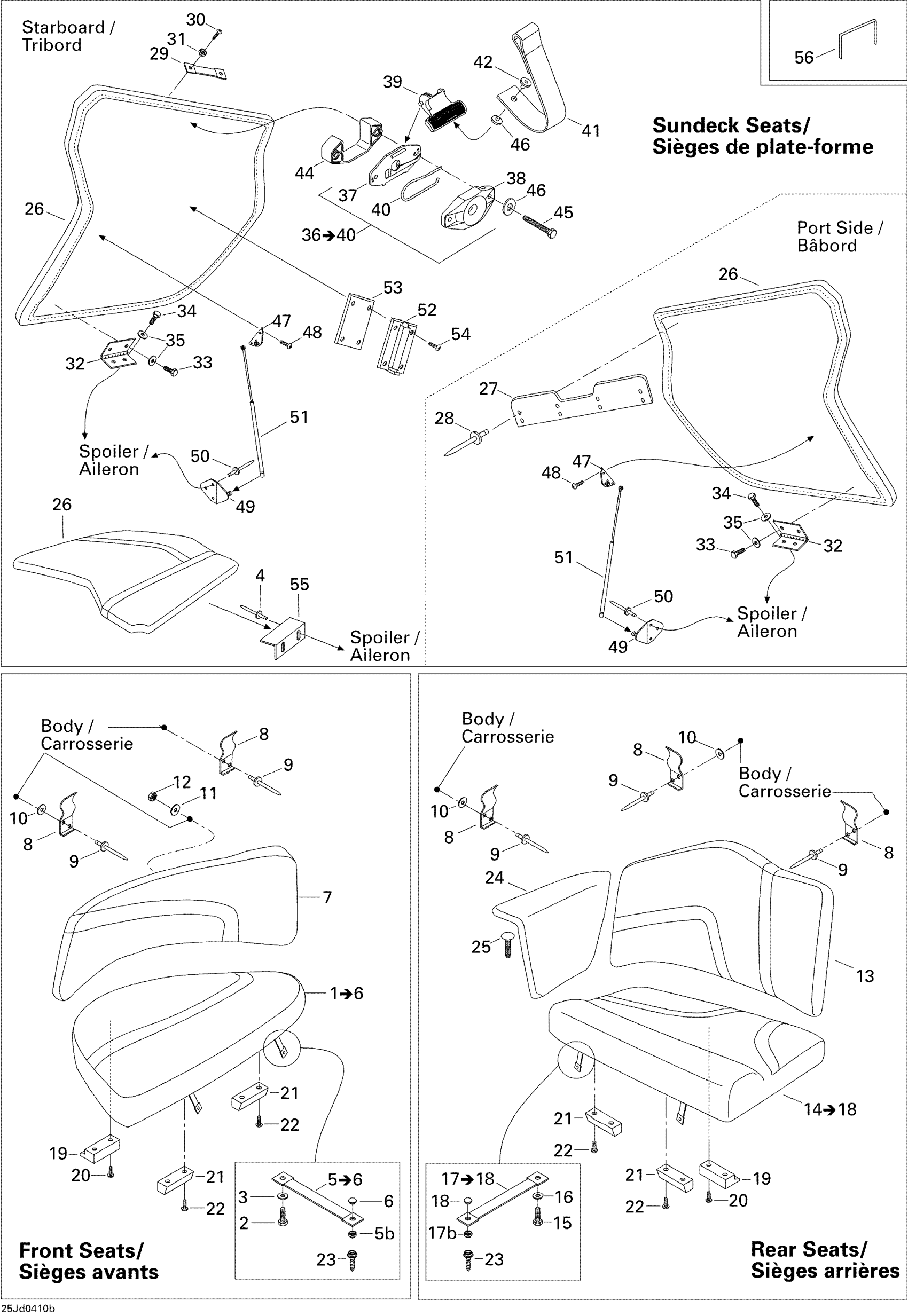

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 09- Seat (front And Rear) Diagram
#
1
Front Seat Ass’y, Starboard | INCLUDES 1 TO 6 / RED 5773
204612153
Unavailable
Front Seat Ass’y, Starboard | INCLUDES 1 TO 6 / BLUE 5160
204612731
Unavailable
Front Seat Ass’y, Port Side | INCLUDES 1 TO 6 / RED 5773
204612150
Unavailable
Front Seat Ass’y, Port Side | INCLUDES 1 TO 6 / BLUE 5160
204612726
Unavailable
2
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
3
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
4
Pop Rivet 3/16"
293150043
$2.09
5
Retaining Strap Ass'y
204612613
Unavailable
5b
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
6
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
7
Front Seat Backrest Ass’y, Starboard
204612152
Unavailable
Front Seat Backrest Ass’y, Starboard
204612730
Unavailable
Front Seat Backrest Ass’y, Port Side
204612151
Unavailable
Front Seat Backrest Ass’y, Port Side
204612729
Unavailable
8
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
9
Pop Rivet 3/16"
293150043
$2.09
10
Flat Washer 5 mm, Stainless
234052400
$2.85
11
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
12
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
13
Rear Backrest Ass’y, Starboard
204612164
Unavailable
Rear Backrest Ass’y, Starboard
204612733
Unavailable
Rear Backrest Ass’y, Port Side
204612154
Unavailable
Rear Backrest Ass’y, Port Side
204612735
Unavailable
14
Rear Seat Ass’y, Starboard | INCLUDES 14 TO 18 / RED 5773
204612756
Unavailable
Rear Seat Ass’y, Starboard | INCLUDES 14 TO 18 / BLUE 5160
204612759
Unavailable
Front Seat Ass’y, Port Side | INCLUDES 14 TO 18 / RED 5773
204612753
Unavailable
Front Seat Ass’y, Port Side | INCLUDES 14 TO 18 / BLUE 5160
204612758
Unavailable
15
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
16
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
17
Retaining Strap Ass'y
204612613
Unavailable
17b
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
18
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
19
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
20
TAPPING PAN SCREW M14 X 2 - Call your local BRP dealership
204100120
Unavailable
21
LATCH - Call your local BRP dealership
204611805
Unavailable
22
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
23
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
24
Arm Rest, Starboard
204612158
Unavailable
Arm Rest, Port Side
204612159
Unavailable
25
Dart
293730021
$7.79
26
Sunpad Door Ass’y, Starboard
204612166
Unavailable
Sunpad Door Ass’y, Starboard
204612744
Unavailable
Sunpad Door Ass’y, Port Side
204612165
Unavailable
Sunpad Door Ass’y, Port Side
204612742
Unavailable
27
Retainer Plate
204612684
Unavailable
28
Pop Rivet 3/16"
293150008
$0.50
29
Loop
204612685
Unavailable
30
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
31
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
32
Sundeck Hinge
204612639
Unavailable
33
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership
204100134
Unavailable
34
TAPPING SCREW 1/4-20 X 1/2 - Call your local BRP dealership
204100137
Unavailable
35
Stainless Flat Washer M6
234061600
$0.33
36
Latch Ass’y | Includes 36 to 40
204070577
Unavailable
37
Latch Ass'y
269700109
$24.99
38
Latch Ass'y
269700109
$24.99
39
Latch Ass'y
269700109
$24.99
40
Latch Spring
269700017
$9.19
41
Strap
204612642
Unavailable
42
Ratchet Rivet
293150070
Unavailable
43
Ratchet Rivet
293150073
Unavailable
44
SHIM - Call your local BRP dealership
269700015
Unavailable
45
HEX. BOLT TAPPING - Call your local BRP dealership
204100141
Unavailable
46
Stainless Flat Washer M6
234061600
$0.33
47
Shock Bracket
204073074
$27.99
48
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership
204100073
Unavailable
49
Shock Bracket
204071673
Unavailable
50
Pop Rivet 3/16"
293150043
$2.09
51
GAS SHOCK - Call your local BRP dealership
204071874
Unavailable
52
SLIDE LATCH - Call your local BRP dealership
204612641
Unavailable
53
LATCH SHIM - Call your local BRP dealership
204612664
Unavailable
54
TAPPING SCREW - Call your local BRP dealership
204100082
Unavailable
55
KEEPER - Call your local BRP dealership
204070060
Unavailable
56
Staple 1/4"
293730025
Unavailable
