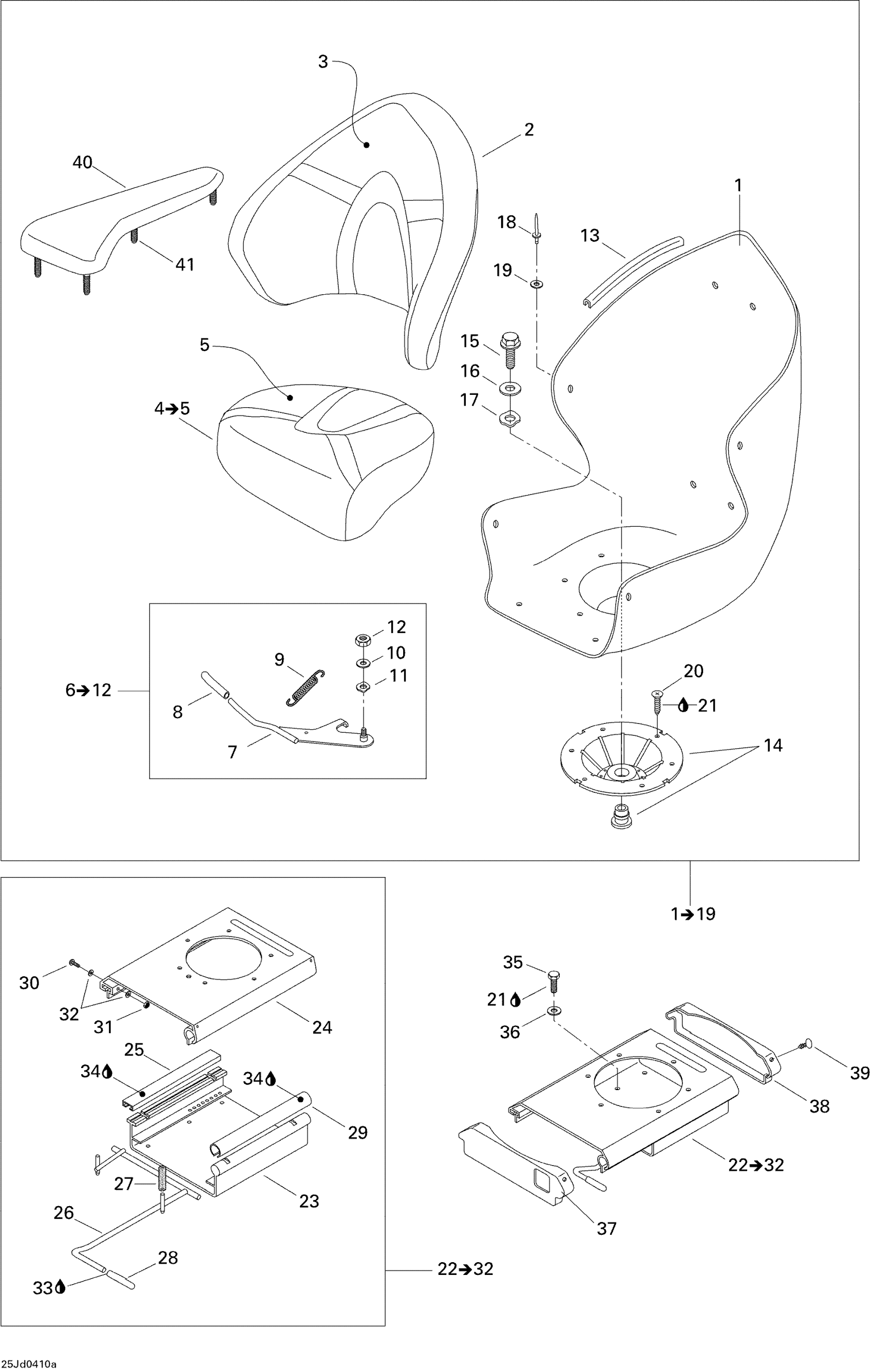

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 09- Seat (driver And Passenger) Diagram

#

Description
Price

1

Driver Seat Ass’y | INCLUDES 1 TO 19 / RED 5773

204612708

Unavailable

Driver Seat Ass’y | INCLUDES 1 TO 19 / BLUE 5160

204612763

Unavailable

1

Seat Base

204611146

Unavailable

2

Backrest Cushion | RED 5773

204612709

Unavailable

Backrest Cushion | BLUE 5160

204612764

Unavailable

3

Backrest Cover | RED 5773

204612711

Unavailable

Backrest Cover | BLUE 5160

204612766

Unavailable

4

Seat Cushion | INCLUDES 4 TO 5 / RED 5773

204612710

Unavailable

Seat Cushion | INCLUDES 4 TO 5 / BLUE 5160

204612765

Unavailable

5

Cover Cushion | RED 5773

204612713

Unavailable

Cover Cushion | BLUE 5160

204612767

Unavailable

6

Lever Arm Ass’y

204610523

Unavailable

7

Lever Arm

204610524

Unavailable

8

Handle

204610348

Unavailable

9

SPRING - Call your local BRP dealership

204610349

Unavailable

10

Stainless Flat Washer M6

234061600

$0.33

11

Washer

211200059

Unavailable

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

14

SWIVEL PLATE - Call your local BRP dealership

204610513

Unavailable

15

SCREW-SHOULDER - Call your local BRP dealership

211000172

Unavailable

16

FLAT WASHER - Call your local BRP dealership

211200058

Unavailable

17

WASHER - Call your local BRP dealership

293200056

Unavailable

18

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

19

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

20

PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

208561660

Unavailable

21

Loctite 243, 10 ml

293800060

$21.49

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Lower Part

269500636

Unavailable

24

Upper Part

269500637

Unavailable

25

Rectangular Bushing

269500638

Unavailable

26

Rod Ass'y

269500639

Unavailable

27

Spring

269500640

Unavailable

28

Handle

204610348

Unavailable

29

Circle Bushing

269500642

Unavailable

30

Hex. Screw M6 X 50

207065060

$2.22

31

Hex. Elastic Stop Nut M6

232561600

$1.15

32

Stainless Flat Washer M6

234061600

$0.33

33

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

34

Synthetic Grease, 400 G

293550010

Unavailable

35

Hex. Screw M6 X 35

207163560

$1.49

36

Flat Washer M6, Stainless

234062600

$0.77

37

Front Protector

204610375

Unavailable

38

Rear Protector

204610376

Unavailable

39

Black, Dart

293730006

$0.99

40

Elbow Rest Ass’y, Starboard

204612160

Unavailable

Elbow Rest Ass’y, Port Side

204612161

Unavailable

41

Dart

293730021

$7.79
