Engine Compartment

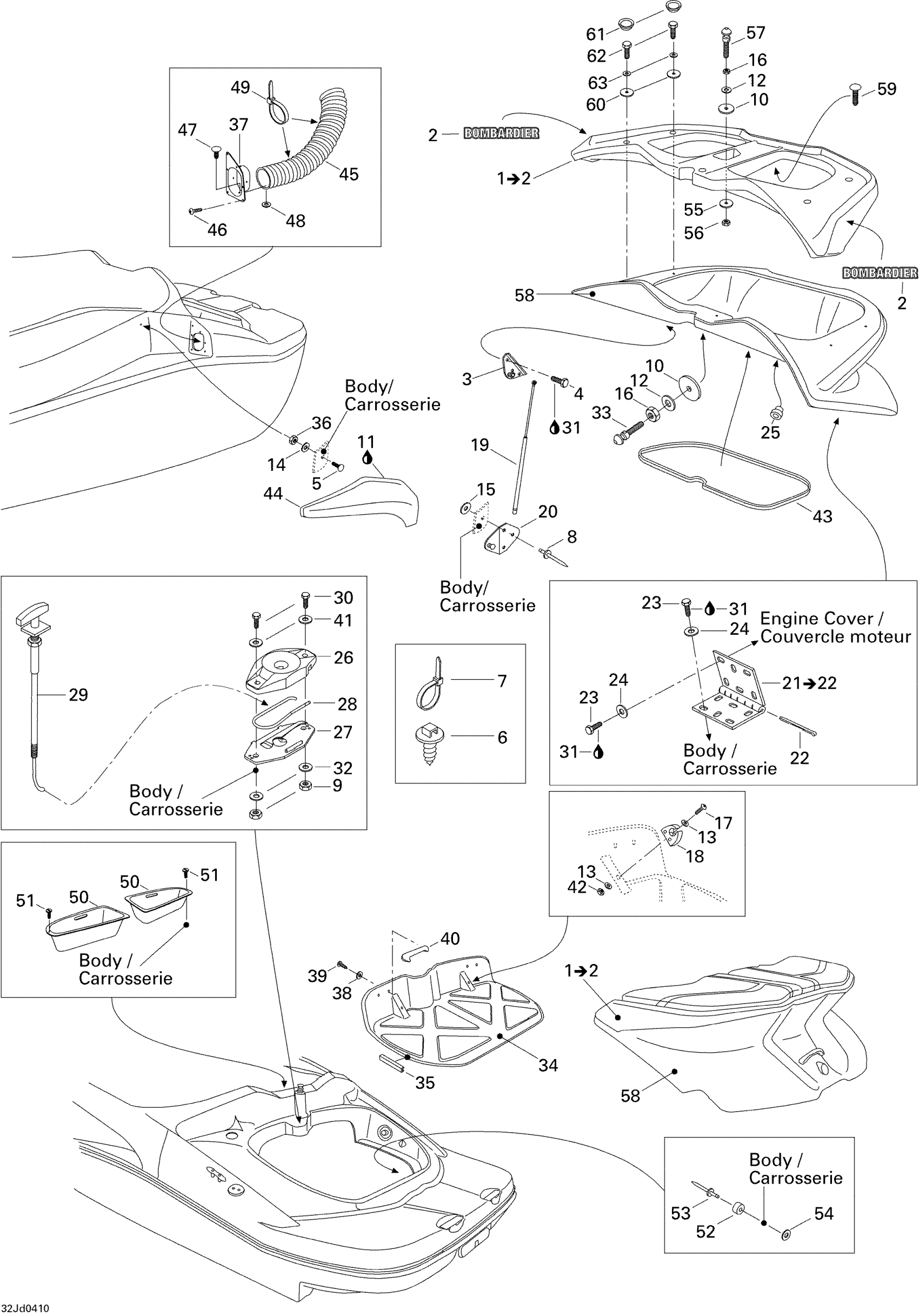

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Engine Compartment Diagram
#
1
Spoiler Ass’y | Includes Items 1 to 2
204612760
Unavailable
2
Bombardier Logo
204901398
Unavailable
3
SHOCK BRACKET - Call your local BRP dealership
204070065
Unavailable
4
Hex. Screw M4 X 16 | Europe
207141660
Unavailable
5
Elevator Bolt
204000130
Unavailable
6
Mount Dart
293730040
Unavailable
7
Tie-Rap 180 mm
414115200
Unavailable
8
Pop Rivet 3/16"
293150043
Unavailable
9
Hex. Elastic Stop Nut M6
232561600
Unavailable
10
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
11
Silicone Sealant 51388, 300 ml
296000309
Unavailable
12
Flat Washer 10 mm, Stainless
234002600
Unavailable
13
Flat Washer 4 mm
234040600
Unavailable
14
Flat Washer M6, Stainless
234062600
Unavailable
15
Flat Washer M5, Stainless
234051600
Unavailable
16
Hex. Jam Nut M10
232100600
Unavailable
17
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
18
Pole Support
291000642
Unavailable
19
GAS SHOCK CYLINDER - Call your local BRP dealership
204071921
Unavailable
20
SHOCK BRACKET - Call your local BRP dealership
204070065
Unavailable
21
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
22
Cotter Pin M2.5 X 12
204070205
Unavailable
23
Hex. Screw M6 X 25
207162560
Unavailable
24
Stainless Flat Washer M6
234061600
Unavailable
25
GROMMET - Call your local BRP dealership
293720017
Unavailable
26
LATCH BASE - Call your local BRP dealership
204070037
Unavailable
27
LATCH COVER - Call your local BRP dealership
204070036
Unavailable
28
SPRING - Call your local BRP dealership
204070038
Unavailable
29
LATCH CABLE - Call your local BRP dealership
204070049
Unavailable
30
Hex. Screw M6 X 35
207163560
Unavailable
31
Loctite 243, 10 ml
293800060
Unavailable
32
Flat Washer M6, Stainless
234062600
Unavailable
33
Latch Stud
204100065
Unavailable
34
ENGINE ACCESS COVER - Call your local BRP dealership
269700130
Unavailable
35
Seal Tray 1000Mm Long
219704368
Unavailable
36
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
37
INLET VENT, STARBOARD - Call your local BRP dealership
204071857
Unavailable
37
INLET VENT, PORT SIDE - Call your local BRP dealership
204071856
Unavailable
38
Flat Washer 4 mm, Stainless
234042600
Unavailable
39
Hex. Flange Screw K40 X 16
241141660
Unavailable
40
Black, Handle - Call your local BRP dealership
204050159
Unavailable
41
Stainless Flat Washer M6
234061600
Unavailable
42
Elastic Stop Nut M4
232541600
Unavailable
43
Was 293200017 Neoprene Seal
219704365
Unavailable
44
Vent Cover, Starboard
204071797
Unavailable
44
Vent Cover, Port Side
204071796
Unavailable
45
Was 204050122 Vent Hose 4"
219704358
Unavailable
46
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
250000090
Unavailable
47
Black, Dart
293730006
Unavailable
48
Flat Washer M6, Stainless
234062600
Unavailable
49
Tie Wrap 368 mm
293750008
Unavailable
50
REAR STORAGE TRAY, STARBOARD - Call your local BRP dealership
204073076
Unavailable
50
REAR STORAGE TRAY, PORT SIDE - Call your local BRP dealership
204071858
Unavailable
51
SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership
204100095
Unavailable
52
Rubber Stopper
293830043
Unavailable
53
Pop Rivet 3/16"
293150013
Unavailable
54
Flat Washer M5, Stainless
234051600
Unavailable
55
Flat Washer 10 mm, Stainless
234002600
Unavailable
56
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
57
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
58
Engine Cover
204071659
Unavailable
59
Dart
293730021
Unavailable
60
Flat Washer 10 mm, Stainless
234002600
Unavailable
61
PLUG 1-1/2, BLACK - Call your local BRP dealership
204130065
Unavailable
62
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
Unavailable
63
Flat Washer M6, Stainless
234062600
Unavailable
