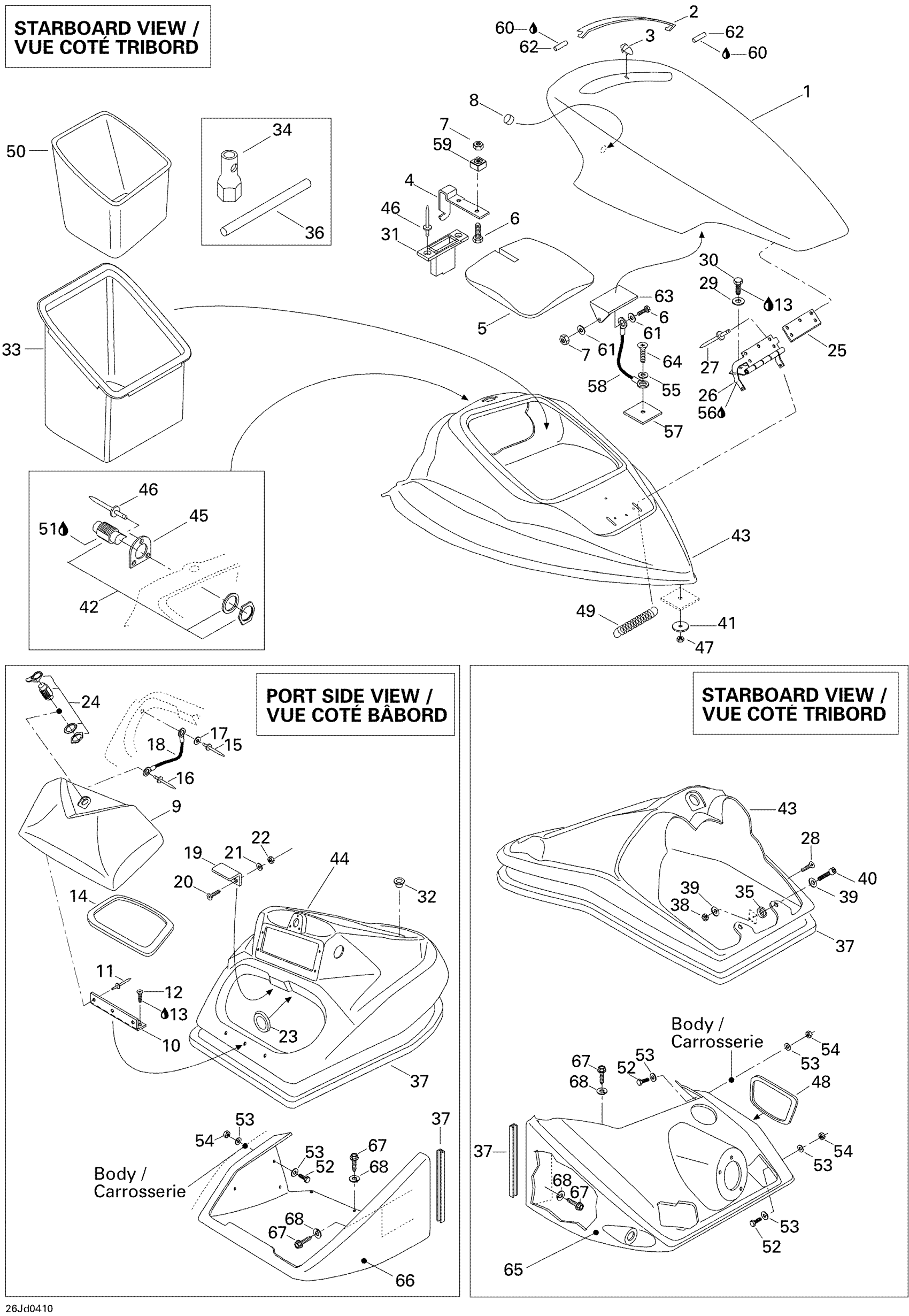

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Console, Windscreen, Glove Box Diagram

#

Description
Price

1

Windshield This part replaces 204620079.

291003861

Unavailable

2

DEFLECTOR - Call your local BRP dealership

204073803

Unavailable

3

REAR STOPPER - Call your local BRP dealership

204620106

Unavailable

4

LATCH - Call your local BRP dealership

204620070

Unavailable

5

FOAM, WINDSCREEN - Call your local BRP dealership

204620080

Unavailable

6

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

7

Hex. Elastic Nut M5 | X

232551600

Unavailable

8

RUBBER STOPPER - Call your local BRP dealership

204620295

Unavailable

9

GLOVE BOX DOOR ASS?Y - Call your local BRP dealership

204071664

Unavailable

10

Hinge, Black

204071945

Unavailable

11

Pop Rivet 3/16"

293150088

Unavailable

12

Phillips Pan Head Screw M4 X 40

250000169

Unavailable

13

Loctite 243, 10 ml

293800060

Unavailable

14

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

15

Pop Rivet 3/16"

293150008

Unavailable

16

Pop Rivet 3/16"

293150043

Unavailable

17

Flat Washer 5 mm, Stainless

234052600

Unavailable

18

RETAINER CABLE - Call your local BRP dealership

204071498

Unavailable

19

KEEPER - Call your local BRP dealership

204070060

Unavailable

20

Phillips Screw M4 X 16

208641660

Unavailable

21

Flat Washer 4 mm

234040600

Unavailable

22

Elastic Stop Nut M4

232541600

Unavailable

23

SPLIT LOOM 3/8, METER - Call your local BRP dealership

204050326

Unavailable

24

LATCH KIT, 3 LATCHES - Call your local BRP dealership

204071838

Unavailable

25

RETAINING PLATE - Call your local BRP dealership

204620087

Unavailable

26

HINGE ASS'Y - Call your local BRP dealership

204620281

Unavailable

27

Pop Rivet 3/16"

293150039

Unavailable

28

Phillips Tapping Screw M4.2 X 32

209943260

Unavailable

29

Flat Washer 5 mm, Stainless

234052600

Unavailable

30

Hex. Screw M5 X 20

207152060

Unavailable

31

LATCH GUIDE - Call your local BRP dealership

204072064

Unavailable

32

DRAIN FITTING - Call your local BRP dealership

204071783

Unavailable

33

STORAGE TRAY - Call your local BRP dealership

269501940

Unavailable

34

Socket Wrench

529035731

Unavailable

35

ALUMINUM SPACER - Call your local BRP dealership

204071928

Unavailable

36

Steel Bar

204630051

Unavailable

37

White Rubber Seal, Meter

204071936

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

Unavailable

39

Flat Washer M6, Stainless

234062600

Unavailable

40

HEX. SCREW M6 X 45 - Call your local BRP dealership

207064560

Unavailable

41

Flat Washer 8 mm, Stainless

234082600

Unavailable

42

LATCH KIT, 3 LATCHES - Call your local BRP dealership

204071838

Unavailable

43

Upper Console, Starboard

204071871

Unavailable

44

Upper Console, Port Side

204071872

Unavailable

45

LATCH PLATE - Call your local BRP dealership

204070304

Unavailable

46

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

47

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

48

Slit Conduit, Meter

204550045

Unavailable

49

HINGE SPRING - Call your local BRP dealership

204620018

Unavailable

50

ICEBOX FOAM - Call your local BRP dealership

204630008

Unavailable

51

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

52

Hex. Screw M6 X 35

207163560

Unavailable

53

Flat Washer M6, Stainless

234062600

Unavailable

54

Hex. Elastic Stop Nut M6

232561600

Unavailable

55

Flat Washer M6, Stainless

234062600

Unavailable

56

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable

58

RETAINER CABLE - Call your local BRP dealership

204620194

Unavailable

59

NUT HOUSING - Call your local BRP dealership

204073798

Unavailable

60

Glue Tube, Loctite 454, 20 G

413708300

Unavailable

61

Flat Washer 5 mm, Stainless

234052600

Unavailable

62

ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership

204620126

Unavailable

63

CABLE ATTACHEMENT - Call your local BRP dealership

204620127

Unavailable

64

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

65

Console Ass’y, Starboard

204071869

Unavailable

66

Console Ass’y, Port Side

204071868

Unavailable

67

Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership

204050138

Unavailable

68

Lock Washer 1/4”

211200025

Unavailable
